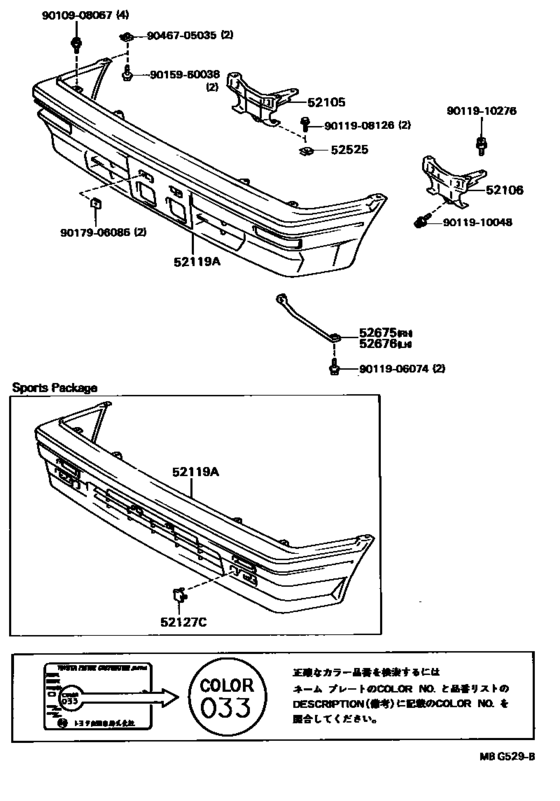

Front Bumper & Bumper Stay ([08.1984 - 05.1986] (8408-8605)) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1989
- Sales region
- Japan
- Frame
- AL20
- grade
- VC
- body
- SED
- ENGINE
- 2AU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 10.1989
- Gear Shift Type
- 4F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52105
|
52105
52011-16050 Stay Sub-Assy, Front Bumper, Rh[05.1982 - 08.1984] AL2# |
52011-16050 |
US $53.58 |
||
|
52105
|
52105
52011-16051 Stay Sub-Assy, Front Bumper, Rh[08.1984 - 10.1989] AL2# |
52011-16051 |
US $49.07 |
||
|
52106
|
52106
52011-16050 Stay Sub-Assy, Front Bumper, Rh[05.1982 - 08.1984] AL2# |
52011-16050 |
US $53.58 |
||
|
52106
|
52106
52011-16051 Stay Sub-Assy, Front Bumper, Rh[08.1984 - 10.1989] AL2# |
52011-16051 |
US $49.07 |
||
|
52119A
|
52119A
52119-16070-03 Cover, Front Bumper[05.1982 - 01.1983] AL2# DARK GRAY,GRAY,391 ,3B7 ,557 ,6G3; AL2# DARK GRAY,GRAY,4C3 ,558 ,884 |
52119-16070-03 |
US $356.72 |
||
|
52119A
|
52119A
52119-16070-13
Cover, Front Bumper
[05.1982 - 01.1983] AL2# LIGHT GRAY,GRAY,038 ,147 |
52119-16070-13 |
— | ||
|
52119A
|
52119A
52119-16070-23 Cover, Front Bumper[01.1983 - 08.1984] AL2# OFF BLACK,GRAY,3D7 ,3B7 ,4C3 ,4E1 ,557; AL2# 0FF BLACK,GRAY,6G3 ,6G5 ,558 ,884 |
52119-16070-23 |
US $356.72 |
||
|
52119A
|
52119A
52119-16130 Cover, Front Bumper[08.1984 - 05.1986] AL2# BLACK |
52119-16130 |
US $238.78 |
||
|
52119A
|
52119A
52119-16140
Cover, Front Bumper
[05.1986 - 10.1989] AL2#..DX,GX,VC,VL BLACK |
52119-16140 |
— | ||
|
52525
|
52525
52565-16020 Retainer(For Timing Belt Cover)[05.1982 - 10.1989] AL2# |
52565-16020 |
US $3.79 |
||
|
52675
|
52675
52675-16010
Support, Front Bumper Lower Side, Rh
[05.1982 - 10.1989] AL2# |
52675-16010 |
— | ||
|
52676
|
52676
52676-16010
Support, Front Bumper Lower Side, Lh
[05.1982 - 10.1989] AL2# |
52676-16010 |
— | ||
|
9010908067
|
9010908067
90109-08067 BOLT |
90109-08067 |
US $1.92 |
||
|
9011906074
|
9011906074
90119-06074 Bolt |
90119-06074 |
US $1.92 |
||
|
9011908126
|
9011908126
90119-08126 BOLT |
90119-08126 |
US $3.20 |
||
|
9011910048
|
9011910048
90119-10048
New Genuine Part
|
90119-10048 |
— | ||
| replacement | |||||
|
9011910048
|
9011910048
90119-10322 BOLT |
90119-10322 |
US $3.04 |
||
|
9011910276
|
9011910276
90119-10276 New Genuine Part |
90119-10276 |
US $3.35 |
||
| replacement | |||||
|
9011910276
|
9011910276
91642-H1022 BOLT W-WASHER |
91642-H1022 |
US $2.24 |
||
|
9015960038
|
9015960038
90159-60038 SCREWTAPPING |
90159-60038 |
US $3.04 |
||
|
9017906086
|
9017906086
90179-06086 NUT |
90179-06086 |
from US $1.93 |
||
|
9046705035
|
9046705035
90467-05035 New Genuine Part |
90467-05035 |
US $2.62 |
||
