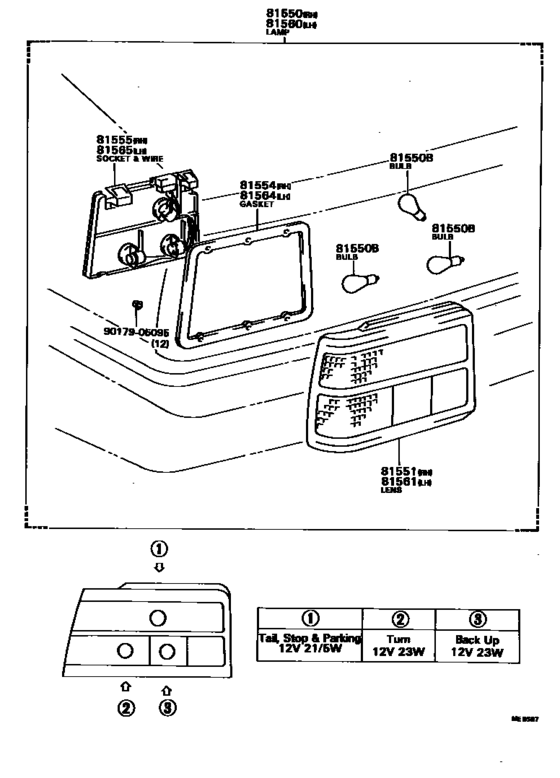

Rear Combination Lamp ([05.1982 - 08.1984] (8205-8408)TER..4DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1989
- Sales region
- Japan
- Frame
- AL20
- grade
- VC
- body
- SED
- ENGINE
- 2AU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 10.1989
- Gear Shift Type
- 4F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-16330 Lamp Assy, Rear Combination, Rh[05.1986 - 10.1989] AL2#..TER |
81550-16330 |
US $264.99 |
||
|
81550
|
81550
81550-80129 Lamp Assy, Rear Combination, Rh[05.1982 - 01.1983] AL2#..TER..4DS |
81550-80129 |
US $272.27 |
||
|
81550
|
81550
81550-80160 Lamp Assy, Rear Combination, Rh[01.1983 - 08.1984] AL2#..TER..4DS |
81550-80160 |
US $270.82 |
||
|
81550
|
81550
81550-80242 Lamp Assy, Rear Combination, Rh[08.1984 - 05.1986] AL2#..TER..4DS |
81550-80242 |
US $272.27 |
||
| replacement | |||||
|
81550
|
81550
81550-16330 Lamp Assy, Rear Combination, Rh[08.1984 - 05.1986] AL2#..TER..4DS |
81550-16330 |
US $264.99 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[05.1982 - 10.1989] AL2# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[05.1982 - 10.1989] AL2# １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1982 - 10.1989] AL2# １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-16200 Lens, Rear Combination Lamp, Rh[05.1982 - 01.1983] AL2#..TER..4DS |
81551-16200 |
US $251.89 |
||
|
81551
|
81551
81551-16201 Lens, Rear Combination Lamp, Rh[01.1983 - 08.1984] AL2#..TER..4DS |
81551-16201 |
US $254.80 |
||
|
81551
|
81551
81551-16330 Lens, Rear Combination Lamp, Rh[08.1984 - 10.1989] AL2#..4DS..(VC,VE,VL) |
81551-16330 |
US $232.96 |
||
|
81554
|
81554
81554-16200 Gasket, Rear Combination Lamp Body, Rh[05.1982 - 08.1984] AL2#..4DS |
81554-16200 |
US $15.29 |
||
|
81554
|
81554
81554-16320 Gasket, Rear Combination Lamp Body, Rh[08.1984 - 10.1989] AL2#..4DS |
81554-16320 |
US $15.87 |
||
|
81555
|
81555
81555-16200 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1982 - 08.1984] AL2#..TER..4DS |
81555-16200 |
US $55.76 |
||
|
81555
|
81555
81555-16330 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.1984 - 10.1989] AL2#..4DS..(VC,VE,VL) |
81555-16330 |
US $57.95 |
||
|
81560
|
81560
81560-16350 Lamp Assy, Rear Combination, Lh[05.1986 - 10.1989] AL20..VC |
81560-16350 |
US $264.99 |
||
|
81560
|
81560
81560-80133 Lamp Assy, Rear Combination, Lh[05.1982 - 01.1983] AL2#..TER..4DS |
81560-80133 |
US $272.27 |
||
|
81560
|
81560
81560-80165 Lamp Assy, Rear Combination, Lh[01.1983 - 08.1984] AL2#..TER..4DS |
81560-80165 |
US $270.82 |
||
|
81560
|
81560
81560-80250 Lamp Assy, Rear Combination, Lh[08.1984 - 05.1986] AL20..4DS..VC |
81560-80250 |
US $272.27 |
||
| replacement | |||||
|
81560
|
81560
81560-16350 Lamp Assy, Rear Combination, Lh[08.1984 - 05.1986] AL20..4DS..VC |
81560-16350 |
US $264.99 |
||
|
81561
|
81561
81561-16200 Lens, Rear Combination Lamp, Lh[05.1982 - 01.1983] AL2#..TER..4DS |
81561-16200 |
US $251.89 |
||
|
81561
|
81561
81561-16201 Lens, Rear Combination Lamp, Lh[01.1983 - 08.1984] AL2#..TER..4DS |
81561-16201 |
US $254.80 |
||
|
81561
|
81561
81561-16350 Lens, Rear Combination Lamp, Lh[08.1984 - 10.1989] AL20..4DS..VC |
81561-16350 |
US $232.96 |
||
|
81564
|
81564
81554-16200 Gasket, Rear Combination Lamp Body, Rh[05.1982 - 08.1984] AL2#..4DS |
81554-16200 |
US $15.29 |
||
|
81564
|
81564
81554-16320 Gasket, Rear Combination Lamp Body, Rh[08.1984 - 10.1989] AL2#..4DS |
81554-16320 |
US $15.87 |
||
|
81565
|
81565
81565-16200 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[05.1982 - 08.1984] AL2#..TER..4DS |
81565-16200 |
US $55.76 |
||
|
81565
|
81565
81565-16330 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[08.1984 - 10.1989] AL2#..4DS..(VC,VE,VL) |
81565-16330 |
US $58.24 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
