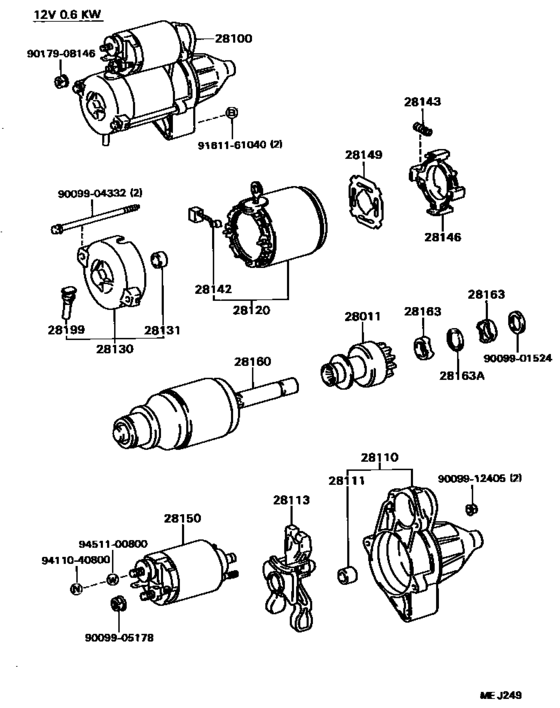

Starter ([12.1986 - ] (8612- )2AU) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1989
- Sales region
- Japan
- Frame
- AL20
- grade
- VC
- body
- SED
- ENGINE
- 2AU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 10.1989
- Gear Shift Type
- 4F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-13060 Clutch Sub-Assy, Starter[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28011-13060 |
US $42.66 |
||
|
28011
|
28011
28011-22020
Clutch Sub-Assy, Starter
[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW |
28011-22020 |
— | ||
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[05.1982 - 10.1989] 2AU,3A#..AL2# 12V 1.0KW |
28011-26042 |
— | ||
|
28100
|
28100
28100-14020 Starter Assy[12.1986 - 05.1987] 2AU..AL20 12V 0.6KW |
28100-14020 |
US $834.29 |
||
| replacement | |||||
|
28100
|
28100
28100-14021 Starter Assy[12.1986 - 05.1987] 2AU..AL20 12V 0.6KW |
28100-14021 |
US $834.29 |
||
|
28100
|
28100
28100-14021 Starter Assy[05.1987 - 10.1989] 2AU..AL20 12V 0.6KW |
28100-14021 |
US $834.29 |
||
|
28100
|
28100
28100-15020 Starter Assy[05.1982 - 10.1989] 2AU,3A#..AL2# １２Ｖ １．０ＫＷ,12V 1.0KW |
28100-15020 |
US $1,240.51 |
||
|
28100
|
28100
28100-15050 Starter Assy[05.1982 - 12.1986] 2AU..AL20 １２Ｖ ０．６ＫＷ,12V 0.6KW |
28100-15050 |
US $837.20 |
||
| replacement | |||||
|
28100
|
28100
28100-14021 Starter Assy[05.1982 - 12.1986] 2AU..AL20 １２Ｖ ０．６ＫＷ,12V 0.6KW |
28100-14021 |
US $834.29 |
||
|
28110
|
28110
28110-14020 Housing Assy, Starter Drive[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28110-14020 |
US $88.82 |
||
|
28110
|
28110
28110-15020 Housing Assy, Starter Drive[05.1982 - 10.1989] 2AU,3A#..AL2# 12V 1.0KW |
28110-15020 |
US $80.08 |
||
|
28110
|
28110
28110-15050 Housing Assy, Starter Drive[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW |
28110-15050 |
US $52.12 |
||
|
28111
|
28111
28111-51011
Bush(For Starter Housing)
[05.1982 - 12.1986] 2AU,3A#..AL2# 12V 0.6KW,0.8KW |
28111-51011 |
— | ||
|
28111
|
28111
90099-10158
Bush(For Starter Housing)
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
90099-10158 |
— | ||
|
28113
|
28113
28113-13060 Lever, Starter Pinion Drive[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28113-13060 |
US $9.32 |
||
|
28113
|
28113
28113-41011
Lever, Starter Pinion Drive
[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW |
28113-41011 |
— | ||
|
28120
|
28120
28120-14020
Yoke Assy, Starter
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28120-14020 |
— | ||
|
28120
|
28120
28120-22011
Yoke Assy, Starter
[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW |
28120-22011 |
— | ||
|
28120
|
28120
28120-26070
Yoke Assy, Starter
[05.1982 - 07.1987] 2AU,3A#..AL2# 12V 1.0KW |
28120-26070 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[05.1982 - 07.1987] 2AU,3A#..AL2# 12V 1.0KW |
28120-26071 |
— | ||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[07.1987 - 10.1989] 2AU,3A#..AL2# 12V 1.0KW |
28120-26071 |
— | ||
|
28130
|
28130
28130-13060 Frame Assy, Starter Commutator End[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28130-13060 |
US $43.97 |
||
|
28130
|
28130
28130-15020 Frame Assy, Starter Commutator End[05.1982 - 10.1989] 2AU,3A#..AL2# 12V 1.0KW |
28130-15020 |
US $21.11 |
||
|
28130
|
28130
28130-21011
Frame Assy, Starter Commutator End
[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW |
28130-21011 |
— | ||
|
28131
|
28131
28131-20010
Bush, Commutator End Frame
[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW,STD |
28131-20010 |
— | ||
|
28131
|
28131
90099-10039
Bush, Commutator End Frame
[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW,U/S 0.3 |
90099-10039 |
— | ||
|
28131
|
28131
90099-10040
Bush, Commutator End Frame
[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW,U/S 0.5 |
90099-10040 |
— | ||
|
28131
|
28131
90099-10157
Bearing, Starter Flange
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
90099-10157 |
— | ||
|
28142
|
28142
28142-10011
Brush, Starter
[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW |
28142-10011 |
— | ||
|
28142
|
28142
28142-10020 Brush, Starter[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28142-10020 |
from US $3.85 |
||
|
28143
|
28143
28143-10020
Spring, Starter Brush
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28143-10020 |
— | ||
|
28143
|
28143
28143-40040
Spring, Starter Brush
[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW |
28143-40040 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[05.1982 - 10.1989] 2AU,3A#..AL2# 12V 1.0KW |
90099-17112 |
— | ||
|
28146
|
28146
28149-10020
Holder, Starter Brush
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28149-10020 |
— | ||
|
28149
|
28149
28141-10020
Insulator, Brush Holder
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28141-10020 |
— | ||
|
28150
|
28150
28150-10020
Switch Assy, Magnet Starter
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28150-10020 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-10021 Switch Assy, Magnet Starter[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28150-10021 |
US $101.34 |
||
|
28150
|
28150
28150-15020 Switch Assy, Magnet Starter[05.1982 - 10.1989] 2AU,3A#..AL2# 12V 1.0KW |
28150-15020 |
US $352.35 |
||
|
28150
|
28150
28150-22011
Switch Assy, Magnet Starter
[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW |
28150-22011 |
— | ||
|
28160
|
28160
28160-10020 Armature Assy, Starter[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28160-10020 |
US $135.41 |
||
|
28160
|
28160
28160-22011 Armature Assy, Starter[05.1982 - 12.1986] 2AU..AL20 12V 0.6KW |
28160-22011 |
US $237.33 |
||
|
28160
|
28160
28160-26070 Armature Assy, Starter[05.1982 - 10.1989] 2AU,3A#..AL2# 12V 1.0KW |
28160-26070 |
US $324.69 |
||
| replacement | |||||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[05.1982 - 10.1989] 2AU,3A#..AL2# 12V 1.0KW |
28160-26071 |
— | ||
|
28163
|
28163
28163-10020
Nut Or Collar, Pinion Stop, Starter
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28163-10020 |
— | ||
| replacement | |||||
|
28163
|
28163
28163-10021
Nut Or Collar, Pinion Stop, Starter
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28163-10021 |
— | ||
|
28163
|
28163
28163-40011
Nut Or Collar, Pinion Stop, Starter
[05.1982 - 12.1986] 2AU,3A#..AL2# 12V 0.6KW,0.8KW |
28163-40011 |
— | ||
|
28163A
|
28163A
90099-07047
Ring, Snap(For Starter Pinion Stop Nut)
[05.1982 - 12.1986] 2AU,3A#..AL2# 12V 0.6KW,0.8KW |
90099-07047 |
— | ||
|
28163A
|
28163A
90099-07124
Bearing(For Starter Housing)
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
90099-07124 |
— | ||
|
28199
|
28199
28199-15090
Cover, Starter End Frame
[12.1986 - 10.1989] 2AU..AL20 12V 0.6KW |
28199-15090 |
— | ||
|
9009901524
|
9009901524
90099-01524
New Genuine Part
|
90099-01524 |
— | ||
|
9009904332
|
9009904332
90099-04332
New Genuine Part
|
90099-04332 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.08 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.03 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
