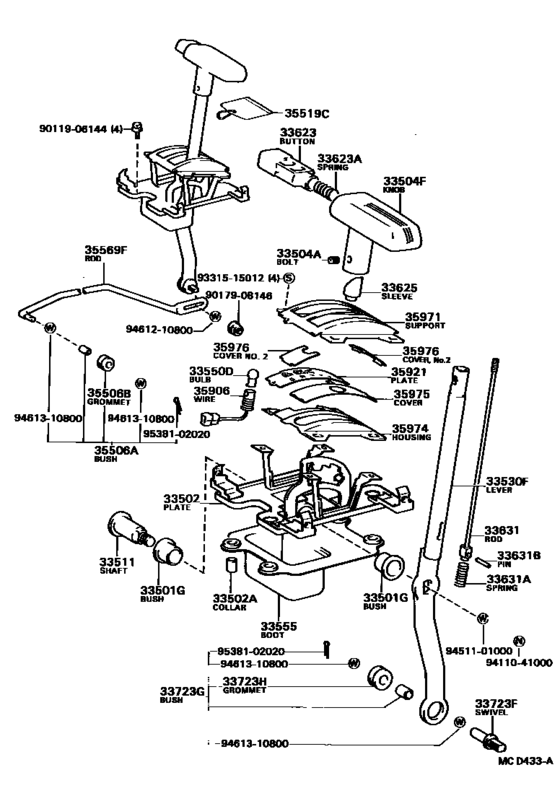

Shift Lever & Retainer ([05.1982 - ] (8205- )AL20,21..3FC) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1989
- Sales region
- Japan
- Frame
- AL21
- grade
- EX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- ATM
- From
- 05.1982
- To
- 10.1989
- Gear Shift Type
- 3FC
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33501G
|
33501G
90385-16003 Bush (For Floor Shift Control Shaft)[05.1982 - 10.1989] AL20,21..3FC |
90385-16003 |
US $8.30 |
||
|
33502
|
33502
33502-16060
Plate Sub-Assy, Shift Lever
[05.1982 - 08.1984] AL2#..3FC |
33502-16060 |
— | ||
|
33502
|
33502
33502-16100 Plate Sub-Assy, Shift Lever[08.1984 - 10.1989] AL20,21..3FC |
33502-16100 |
US $59.70 |
||
|
33502A
|
33502A
90387-06005 Collar (For Floor Shift Setting)[05.1982 - 10.1989] AL2#..3FC |
90387-06005 |
US $3.64 |
||
|
33504A
|
33504A
90113-05034 Bolt Or Pin (For Shift Lever Knob Setting)[05.1982 - 08.1984] AL21..3FC..(EX,VE) |
90113-05034 |
US $4.16 |
||
|
33504A
|
33504A
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[08.1984 - 05.1986] AL25..3FC; AL21..3FC..(EX,SX,VE,VS) |
90159-40109 |
US $1.28 |
||
|
33504F
|
33504F
33542-10020-03 Knob Sub-Assy, Shift Lever[08.1984 - 05.1986] AL21..3FC..(EX,SX,VE,VS) GRAY,GRAY,TRIM1# |
33542-10020-03 |
US $35.38 |
||
| replacement | |||||
|
33504F
|
33504F
33542-10020-11 Knob Sub-Assy, Shift Lever[08.1984 - 05.1986] AL21..3FC..(EX,SX,VE,VS) GRAY,GRAY,TRIM1# |
33542-10020-11 |
US $35.24 |
||
|
33504F
|
33504F
33542-10020-05 Knob Sub-Assy, Shift Lever[08.1984 - 05.1986] AL21..3FC..(EX,VE) BEIGE,BEIGE,TRIM4# |
33542-10020-05 |
US $35.38 |
||
| replacement | |||||
|
33504F
|
33504F
33542-10020-11 Knob Sub-Assy, Shift Lever[08.1984 - 05.1986] AL21..3FC..(EX,VE) BEIGE,BEIGE,TRIM4# |
33542-10020-11 |
US $35.24 |
||
|
33504F
|
33504F
33542-10020-11 Knob Sub-Assy, Shift Lever[05.1986 - 10.1989] AL21..3FC..(EX,VE) BLACK,NEW BLACK,TRIM2# |
33542-10020-11 |
US $35.24 |
||
|
33504F
|
33504F
33542-10020-15 Knob Sub-Assy, Shift Lever[05.1986 - 10.1989] AL21..3FC..(EX,VE) BEIGE,DARK BEIGE,TRIM4# |
33542-10020-15 |
US $35.38 |
||
| replacement | |||||
|
33504F
|
33504F
33542-10020-11 Knob Sub-Assy, Shift Lever[05.1986 - 10.1989] AL21..3FC..(EX,VE) BEIGE,DARK BEIGE,TRIM4# |
33542-10020-11 |
US $35.24 |
||
|
33504F
|
33504F
33542-24030-12 Knob Sub-Assy, Shift Lever[05.1982 - 08.1984] AL21..3FC..(EX,VE) DARK WINE,RED/MAROON,TRIM3# |
33542-24030-12 |
US $74.48 |
||
| replacement | |||||
|
33504F
|
33504F
33542-24030-01 Knob Sub-Assy, Shift Lever[05.1982 - 08.1984] AL21..3FC..(EX,VE) DARK WINE,RED/MAROON,TRIM3# |
33542-24030-01 |
US $74.48 |
||
|
33504F
|
33504F
33542-24030-13 Knob Sub-Assy, Shift Lever[05.1982 - 08.1984] AL21..3FC..(EX,VE) GRAY,GRAY,TRIM1# |
33542-24030-13 |
US $74.48 |
||
| replacement | |||||
|
33504F
|
33504F
33542-24030-01 Knob Sub-Assy, Shift Lever[05.1982 - 08.1984] AL21..3FC..(EX,VE) GRAY,GRAY,TRIM1# |
33542-24030-01 |
US $74.48 |
||
|
33504F
|
33504F
33542-24030-16 Knob Sub-Assy, Shift Lever[05.1982 - 08.1984] AL21..3FC..(EX,VE) BROWN,BROWN,TRIM4# |
33542-24030-16 |
US $74.48 |
||
| replacement | |||||
|
33504F
|
33504F
33542-24030-01 Knob Sub-Assy, Shift Lever[05.1982 - 08.1984] AL21..3FC..(EX,VE) BROWN,BROWN,TRIM4# |
33542-24030-01 |
US $74.48 |
||
|
33511
|
33511
33511-16020 Shaft, Control (For Floor Shift)[05.1982 - 10.1989] AL2#..3FC |
33511-16020 |
US $10.63 |
||
|
33530F
|
33530F
33503-16050
Lever Assy, Shift (For Floor Shift)
[05.1982 - 08.1984] AL21..3FC..(EX,VE) |
33503-16050 |
— | ||
|
33530F
|
33530F
33503-16090 Lever Assy, Shift (For Floor Shift)[08.1984 - 10.1989] AL20,21..3FC |
33503-16090 |
US $61.88 |
||
|
33550D
|
33550D
99132-11017 Bulb, Position Indicator Lamp[05.1982 - 10.1989] AL2#..3FC １２Ｖ １．７Ｗ,12V 1.7W |
99132-11017 |
US $2.18 |
||
|
33555
|
33555
33555-16020 Boot, Shift Lever[05.1982 - 10.1989] AL2#..3FC |
33555-16020 |
US $53.73 |
||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[05.1986 - 10.1989] AL20,21..3FC BLACK,NEW BLACK,TRIM2# |
33623-30040-01 |
US $18.70 |
||
|
33623
|
33623
33623-30040-02 Button, Shift Lever Knob[05.1982 - 08.1984] AL21..3FC..(EX,VE) DARK WINE,RED/MAROON,TRIM3# |
33623-30040-02 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[05.1982 - 08.1984] AL21..3FC..(EX,VE) DARK WINE,RED/MAROON,TRIM3# |
33623-30040-01 |
US $18.70 |
||
|
33623
|
33623
33623-30040-10 Button, Shift Lever Knob[03.1986 - 05.1986] AL20,21..3FC GRAY,GRAY,TRIM1# |
33623-30040-10 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[03.1986 - 05.1986] AL20,21..3FC GRAY,GRAY,TRIM1# |
33623-30040-01 |
US $18.70 |
||
|
33623
|
33623
33623-30040-13 Button, Shift Lever Knob[05.1982 - 08.1984] AL21..3FC..(EX,VE) GRAY,GRAY,TRIM1# |
33623-30040-13 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[05.1982 - 08.1984] AL21..3FC..(EX,VE) GRAY,GRAY,TRIM1# |
33623-30040-01 |
US $18.70 |
||
|
33623
|
33623
33623-30040-33 Button, Shift Lever Knob[08.1984 - 03.1986] AL20,21..3FC GRAY,GRAY,TRIM1# |
33623-30040-33 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[08.1984 - 03.1986] AL20,21..3FC GRAY,GRAY,TRIM1# |
33623-30040-01 |
US $18.70 |
||
|
33623
|
33623
33623-30040-35 Button, Shift Lever Knob[08.1984 - 05.1986] AL21..3FC..(EX,VE) BEIGE,BEIGE,TRIM4#; AL20,21..4DS..3FC..(GX,VL) BEIGE,BEIGE,TRIM4# |
33623-30040-35 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[08.1984 - 05.1986] AL21..3FC..(EX,VE) BEIGE,BEIGE,TRIM4#; AL20,21..4DS..3FC..(GX,VL) BEIGE,BEIGE,TRIM4# |
33623-30040-01 |
US $18.70 |
||
|
33623
|
33623
33623-30040-36 Button, Shift Lever Knob[05.1982 - 08.1984] AL21..3FC..(EX,VE) BROWN,BROWN,TRIM4# |
33623-30040-36 |
US $19.22 |
||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[05.1982 - 08.1984] AL21..3FC..(EX,VE) BROWN,BROWN,TRIM4# |
33623-30040-01 |
US $18.70 |
||
|
33623
|
33623
33623-30040-45 Button, Shift Lever Knob[05.1986 - 10.1989] AL20,21..3FC BEIGE,DARK BEIGE,TRIM4# |
33623-30040-45 |
US $19.07 |
||
| replacement | |||||
|
33623
|
33623
33623-30040-01 Button, Shift Lever Knob[05.1986 - 10.1989] AL20,21..3FC BEIGE,DARK BEIGE,TRIM4# |
33623-30040-01 |
US $18.70 |
||
|
33623A
|
33623A
90501-07009 Spring, Compression (For Shift Lever Knob)[05.1982 - 08.1984] AL21..3FC..(EX,VE) |
90501-07009 |
from US $4.49 |
||
|
33625
|
33625
33625-16010 Sleeve, Shift Lever Knob[05.1982 - 10.1989] AL20,21..3FC |
33625-16010 |
US $9.90 |
||
|
33631
|
33631
33631-16010 Rod, Detent[05.1982 - 10.1989] AL20,21..3FC |
33631-16010 |
US $14.41 |
||
|
33631A
|
33631A
90501-07005 Spring, Compression (For Detent Rod)[05.1982 - 10.1989] AL2#..3FC |
90501-07005 |
US $6.87 |
||
|
33631B
|
33631B
90256-04001 Pin, Slotted Spring (For Detent Rod)[05.1982 - 10.1989] AL2#..3FC |
90256-04001 |
US $3.19 |
||
|
33723F
|
33723F
33723-22010 Swivel, Connecting Rod (For Column Shift)[05.1982 - 10.1989] AL2#..3FC |
33723-22010 |
from US $10.24 |
||
|
33723G
|
33723G
90999-99017 Bush (For Transmission Control Rod)[05.1982 - 10.1989] AL2#..3FC |
90999-99017 |
from US $3.43 |
||
|
33723H
|
33723H
90480-17177 Grommet (For Transmission Control Rod)[05.1982 - 10.1989] AL2#..3FC |
90480-17177 |
from US $2.42 |
||
|
35506A
|
35506A
90999-99017 Bush (For Transmission Control Rod)[05.1982 - 10.1989] AL2#..3FC |
90999-99017 |
from US $3.43 |
||
|
35506B
|
35506B
90480-17177 Grommet (For Transmission Control Rod)[05.1982 - 10.1989] AL2#..3FC |
90480-17177 |
from US $2.42 |
||
|
35519C
|
35519C
35519-24010
Label, Automatic Trans Information (For Colum Shift)
[05.1989 - 10.1989] AL20,25..3FC;AL21..3FC..VL;AL21..(3FC,4F)..(EX,GX,VE) |
35519-24010 |
— | ||
|
35569F
|
35569F
33675-16020 Rod, Transmission Control, 1St (For Floor Shift)[05.1982 - 06.1983] AL2#..3FC |
33675-16020 |
US $19.36 |
||
|
35569F
|
35569F
33675-16021 Rod, Transmission Control, 1St (For Floor Shift)[06.1983 - 10.1989] AL20,21..3FC |
33675-16021 |
US $19.95 |
||
|
35906
|
35906
35906-16010 Wire Sub-Assy, Indicator Lamp[05.1982 - 10.1989] AL20,21..3FC |
35906-16010 |
US $20.97 |
||
|
35921
|
35921
35921-16050 Plate, Control Position Indicator[05.1982 - 05.1988] AL20,21..3FC |
35921-16050 |
US $57.95 |
||
| replacement | |||||
|
35921
|
35921
35921-16051 Plate, Control Position Indicator[05.1982 - 05.1988] AL20,21..3FC |
35921-16051 |
US $57.66 |
||
|
35921
|
35921
35921-16051 Plate, Control Position Indicator[05.1988 - 10.1989] AL20,21..3FC |
35921-16051 |
US $57.66 |
||
|
35971
|
35971
35971-16020 Support, Position Indicator[05.1982 - 10.1989] AL20,21..3FC |
35971-16020 |
US $29.85 |
||
|
35974
|
35974
35974-16020 Housing, Position Indicator, Lower[05.1982 - 10.1989] AL20,21..3FC |
35974-16020 |
US $25.77 |
||
|
35975
|
35975
35975-16020 Cover, Slide (For Position Indicator)[05.1982 - 10.1989] AL20,21..3FC |
35975-16020 |
US $19.66 |
||
|
35976
|
35976
35976-16010
Cover, Slide, No.2 (For Position Indicator)
[05.1982 - 10.1989] AL2#..3FC |
35976-16010 |
— | ||
|
9011906144
|
9011906144
90119-06144 Bolt, Hexagon (For Shift Lever Plate) |
90119-06144 |
US $0.61 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.86 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $0.96 |
||
