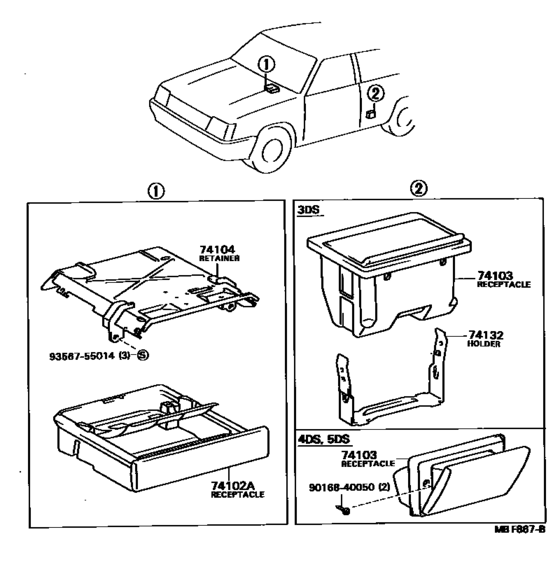

Ash Receptacle ([05.1982 - ] (8205- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74102A
|
74102A
74102-16020 Receptacle Assy, Front Ash[05.1982 - 10.1989] AL2# |
74102-16020 |
US $60.42 |
||
|
74103
|
74103
74130-14020-02 Receptacle Sub-Assy, Ash, No.1[05.1982 - 08.1984] AL2#..4DS,5DS DARK WINE,DARK WINE,TRIM3# |
74130-14020-02 |
US $69.60 |
||
| replacement | |||||
|
74103
|
74103
74130-14020-C0 Receptacle Assy, Rear Ash, Black[05.1982 - 08.1984] AL2#..4DS,5DS DARK WINE,DARK WINE,TRIM3# |
74130-14020-C0 |
US $69.89 |
||
|
74103
|
74103
74130-14020-13 Receptacle Sub-Assy, Ash, No.1[05.1982 - 08.1984] AL2#..4DS,5DS GRAY,GRAY,TRIM1# |
74130-14020-13 |
US $69.60 |
||
|
74103
|
74103
74130-14020-23 Receptacle Sub-Assy, Ash, No.1[08.1984 - 05.1986] AL2#..4DS,5DS GRAY,GRAY,TRIM1# |
74130-14020-23 |
US $69.60 |
||
| replacement | |||||
|
74103
|
74103
74130-14020-C0 Receptacle Assy, Rear Ash, Black[08.1984 - 05.1986] AL2#..4DS,5DS GRAY,GRAY,TRIM1# |
74130-14020-C0 |
US $69.89 |
||
|
74103
|
74103
74130-14020-46 Receptacle Sub-Assy, Ash, No.1[05.1982 - 08.1984] AL2#..4DS,5DS BROWN,BROWN,TRIM4# |
74130-14020-46 |
US $69.60 |
||
| replacement | |||||
|
74103
|
74103
74130-14020-C0 Receptacle Assy, Rear Ash, Black[05.1982 - 08.1984] AL2#..4DS,5DS BROWN,BROWN,TRIM4# |
74130-14020-C0 |
US $69.89 |
||
|
74103
|
74103
74130-14020-55 Receptacle Sub-Assy, Ash, No.1[08.1984 - 05.1986] AL2#..4DS BEIGE,BEIGE,TRIM4# |
74130-14020-55 |
US $69.60 |
||
| replacement | |||||
|
74103
|
74103
74130-14020-50 Receptacle Sub-Assy, Ash, No.1[08.1984 - 05.1986] AL2#..4DS BEIGE,BEIGE,TRIM4# |
74130-14020-50 |
US $69.60 |
||
|
74104
|
74104
74104-16020 Retainer Sub-Assy, Ash Receptacle, No.1[05.1982 - 10.1989] AL2# |
74104-16020 |
US $31.30 |
||
|
9016840050
|
9016840050
90168-40050 New Genuine Part |
90168-40050 |
US $1.60 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
