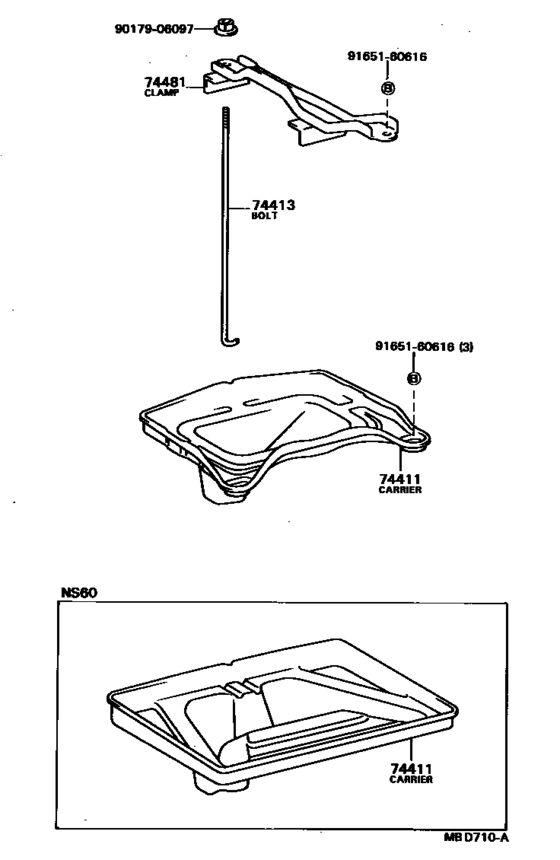

Battery Carrier ([05.1982 - ] (8205- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74411
|
74411
74431-16020 Carrier, Battery[05.1982 - 10.1989] AL2# 34B19R(NS40ZA),28B19R(NS40S) |
74431-16020 |
US $57.08 |
||
|
74411
|
74411
74431-16030 Carrier, Battery[05.1982 - 10.1989] AL2# 46B24R(NS60) |
74431-16030 |
US $40.77 |
||
|
74413
|
74413
74451-14010 Bolt, Battery Clamp[05.1982 - 01.1983] AL2# |
74451-14010 |
from US $4.16 |
||
|
74413
|
74413
74451-16010 Bolt, Battery Clamp[01.1983 - 10.1989] AL2# |
74451-16010 |
from US $2.24 |
||
|
74481
|
74481
74404-16030 Clamp, Battery Hold Down[05.1982 - 10.1989] AL2# |
74404-16030 |
US $21.69 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
