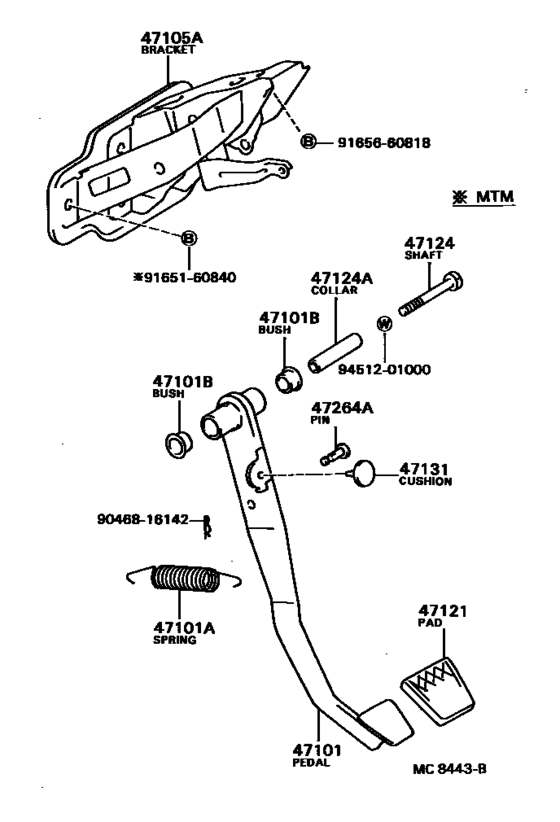

Brake Pedal & Bracket ([05.1982 - ] (8205- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-16050
Pedal Sub-Assy, Brake
[05.1982 - 03.1983] AL2#..MTM |
47101-16050 |
— | ||
|
47101
|
47101
47101-16051 Pedal Sub-Assy, Brake[03.1983 - 10.1989] AL2#..MTM |
47101-16051 |
US $35.53 |
||
|
47101A
|
47101A
90506-14002 Spring(For Clutch Pedal)[05.1982 - 10.1989] AL2# |
90506-14002 |
US $3.49 |
||
|
47101B
|
47101B
90386-13007 Bush(For Clutch Pedal)[05.1982 - 08.1984] AL2# |
90386-13007 |
from US $2.56 |
||
|
47101B
|
47101B
90386-13192 Bush(For Over Center Plate)[08.1984 - 10.1989] AL2# |
90386-13192 |
from US $1.74 |
||
|
47105A
|
47105A
55106-16080 Support Sub-Assy, Brake Pedal[05.1982 - 01.1985] AL2#..MTM |
55106-16080 |
US $59.84 |
||
| replacement | |||||
|
47105A
|
47105A
55106-16081 Support Sub-Assy, Brake Pedal[05.1982 - 01.1985] AL2#..MTM |
55106-16081 |
US $54.60 |
||
|
47121
|
47121
31321-12030 Pad, Clutch Pedal[05.1982 - 10.1989] AL2#..MTM |
31321-12030 |
from US $4.29 |
||
|
47124
|
47124
90101-10081 Shaft, Clutch Pedal[05.1982 - 10.1989] AL2# |
90101-10081 |
US $3.68 |
||
|
47124A
|
47124A
90387-10027 Collar, Clutch Pedal Shaft[05.1982 - 10.1989] AL2# |
90387-10027 |
US $7.34 |
||
|
47131
|
47131
90541-06008 Cushion, No.1(For Clutch Pedal)[05.1982 - 10.1989] AL2# |
90541-06008 |
from US $1.60 |
||
|
47264A
|
47264A
90249-08051 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[05.1982 - 10.1989] AL2# |
90249-08051 |
US $2.72 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.88 |
||
|
9165160840
|
9165160840
91651-60840 BOLT |
91651-60840 |
US $1.44 |
||
|
9165660818
|
9165660818
91656-60818 Clamp Or Clip, Hose(for Radiator Outlet No.1) |
91656-60818 |
US $1.89 |
||
| replacement | |||||
|
9165660818
|
9165660818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
