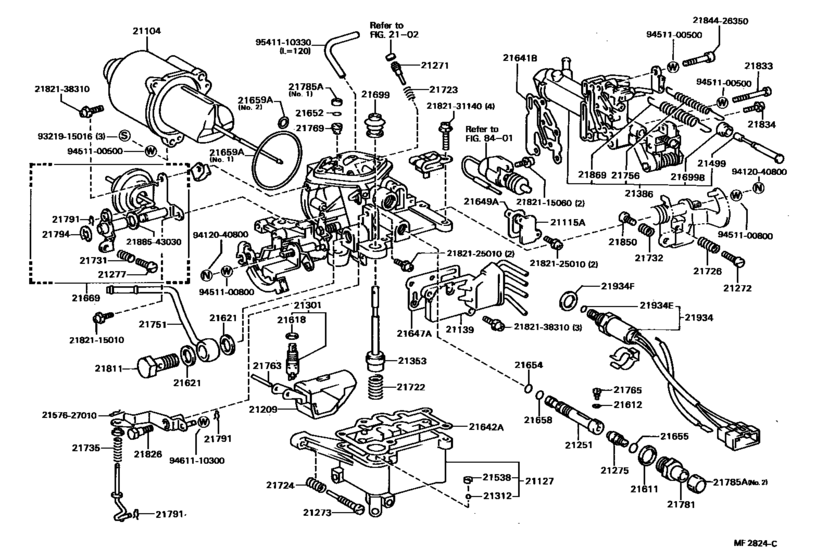

Carburetor ([05.1982 - 08.1984] (8205-8408)3AHU) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21104
|
21104
21014-15251 Chamber Sub-Assy, Suction[05.1982 - 08.1984] 3AHU..AL21 |
21014-15251 |
US $318.86 |
||
|
21115A
|
21115A
21115-15250 Cover, Carburetor Body[05.1982 - 08.1984] 3AHU..AL21 |
21115-15250 |
US $6.12 |
||
|
21127
|
21127
21127-15250 Bowl, Float[05.1982 - 08.1984] 3AHU..AL21 |
21127-15250 |
US $318.86 |
||
|
21139
|
21139
21139-11090 Adapter(For Carburetor Connecting Pipe)[08.1984 - 10.1989] 2AU,3A#..AL2# |
21139-11090 |
US $57.51 |
||
|
21139
|
21139
21139-15250 Adapter(For Carburetor Connecting Pipe)[05.1982 - 08.1984] 3AHU..AL21 |
21139-15250 |
US $123.76 |
||
|
21209
|
21209
21209-11090 Float Sub-Assy[08.1984 - 10.1989] 2AU,3A#..AL2# |
21209-11090 |
US $32.03 |
||
|
21209
|
21209
21209-15250 Float Sub-Assy[05.1982 - 08.1984] 3AHU..AL21 |
21209-15250 |
US $43.97 |
||
|
21251
|
21251
21251-11090 Jet, 1St Main[08.1984 - 04.1985] 2AU,3A#..AL2# |
21251-11090 |
US $32.03 |
||
| replacement | |||||
|
21251
|
21251
21251-15460 Jet, 1St Main[08.1984 - 04.1985] 2AU,3A#..AL2# |
21251-15460 |
US $32.18 |
||
|
21251
|
21251
21251-15251 Jet, 1St Main[05.1982 - 08.1984] 3AHU..AL21 |
21251-15251 |
US $5.39 |
||
|
21271
|
21271
21271-15250 Screw, Idle Adjusting[05.1982 - 02.1984] 3AHU..AL21 |
21271-15250 |
US $22.13 |
||
|
21271
|
21271
21271-15251 Screw, Idle Adjusting[02.1984 - 08.1984] 3AHU..AL21 |
21271-15251 |
US $22.13 |
||
|
21272
|
21272
21273-40122 Screw, 1St Idle Adjusting[05.1982 - 08.1984] 3AHU..AL21 |
21273-40122 |
US $3.64 |
||
|
21273
|
21273
21273-15250 Screw, Throttle Adjusting[05.1982 - 08.1984] 3AHU..AL21 |
21273-15250 |
US $9.17 |
||
|
21275
|
21275
21275-11090 Screw, 1St Throttle Adjusting[08.1984 - 11.1985] 2AU,3A#..AL2# |
21275-11090 |
US $6.26 |
||
|
21275
|
21275
21275-15250 Screw, Adjusting[05.1982 - 08.1984] 3AHU..AL21 |
21275-15250 |
US $7.13 |
||
|
21277
|
21277
21844-33010
Screw, 1St Idle Adjusting
[05.1982 - 08.1984] 3AHU..AL21 |
21844-33010 |
— | ||
|
21301
|
21301
21301-15250 Valve Sub-Assy, Needle[05.1982 - 08.1984] 3AHU..AL21 |
21301-15250 |
US $38.29 |
||
| replacement | |||||
|
21301
|
21301
21301-11140
Valve Sub-Assy, Needle
[05.1982 - 08.1984] 3AHU..AL21 |
21301-11140 |
— | ||
|
21312
|
21312
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[05.1982 - 08.1984] 3AHU..AL21 |
21314-11020 |
US $3.84 |
||
|
21353
|
21353
21353-15250 Plunger, Pump[05.1982 - 08.1984] 3AHU..AL21 |
21353-15250 |
US $21.84 |
||
|
21353
|
21353
21353-44101
Plunger, Pump
[08.1984 - 09.1984] 2AU,3A#..AL2# |
21353-44101 |
— | ||
|
21386
|
21386
21386-15250 Compensator[05.1982 - 02.1984] 3AHU..AL21 |
21386-15250 |
US $522.70 |
||
|
21386
|
21386
21386-15251 Compensator[02.1984 - 08.1984] 3AHU..AL21 |
21386-15251 |
US $521.25 |
||
|
21499
|
21499
21499-15250
Rod, Push(For Carburetor)
[05.1982 - 08.1984] 3AHU..AL21 |
21499-15250 |
— | ||
|
21538
|
21538
21538-31010 Retainer, Ball Check[05.1982 - 08.1984] 2AU,3A#..AL2# |
21538-31010 |
US $4.37 |
||
|
21611
|
21611
21611-15250 Gasket, Main Jet[05.1982 - 08.1984] 3AHU..AL21 |
21611-15250 |
US $2.77 |
||
|
21612
|
21612
21612-15250 Gasket, Power Valve[05.1982 - 08.1984] 3AHU..AL21 |
21612-15250 |
US $2.77 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[05.1982 - 10.1989] 2AU,3A#..AL2# |
21618-14010 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[05.1982 - 10.1989] 2AU,3A#..AL2# |
21633-24030 |
US $4.89 |
||
|
21641B
|
21641B
21641-11090
Gasket, Compensator
[08.1984 - 09.1984] 2AU,3A#..AL2# |
21641-11090 |
— | ||
| replacement | |||||
|
21641B
|
21641B
21641-11140
Gasket, Compensator
[08.1984 - 09.1984] 2AU,3A#..AL2# |
21641-11140 |
— | ||
|
21641B
|
21641B
21641-15250 Gasket, Compensator[05.1982 - 01.1984] 3AHU..AL21 |
21641-15250 |
US $8.88 |
||
| replacement | |||||
|
21641B
|
21641B
21641-15251 Gasket, Compensator[05.1982 - 01.1984] 3AHU..AL21 |
21641-15251 |
US $8.88 |
||
|
21641B
|
21641B
21641-15251 Gasket, Compensator[01.1984 - 08.1984] 3AHU..AL21 |
21641-15251 |
US $8.88 |
||
|
21642A
|
21642A
21642-11090
Gasket, Float Bowl
[08.1984 - 09.1984] 2AU,3A#..AL2# |
21642-11090 |
— | ||
| replacement | |||||
|
21642A
|
21642A
21642-11140
Gasket, Float Bowl
[08.1984 - 09.1984] 2AU,3A#..AL2# |
21642-11140 |
— | ||
|
21642A
|
21642A
21642-15250 Gasket, Float Bowl[05.1982 - 08.1984] 3AHU..AL21 |
21642-15250 |
US $9.17 |
||
|
21647A
|
21647A
21647-11090 Gasket, Adapter[08.1984 - 10.1989] 2AU,3A#..AL2# |
21647-11090 |
US $9.03 |
||
| replacement | |||||
|
21647A
|
21647A
21647-11590 Gasket, AdapterADAPTER [08.1984 - 10.1989] 2AU,3A#..AL2# |
21647-11590 |
US $8.74 |
||
|
21647A
|
21647A
21647-15250 Gasket, Adapter[05.1982 - 08.1984] 3AHU..AL21 |
21647-15250 |
US $9.17 |
||
|
21649A
|
21649A
21649-15250 Gasket, Carburetor Body Cover[05.1982 - 08.1984] 3AHU..AL21 |
21649-15250 |
US $6.70 |
||
|
21652
|
21652
21652-15250 Ring, O(For Suction Chanber Adjusting)[05.1982 - 08.1984] 3AHU..AL21 |
21652-15250 |
US $6.70 |
||
|
21654
|
21654
21655-15250 Ring, O(For Main Jet Adjusting Screw)[05.1982 - 08.1984] 3AHU..AL21 |
21655-15250 |
from US $5.53 |
||
|
21655
|
21655
21655-60010 Ring, O(For Lifter Rod)[05.1982 - 08.1984] 3AHU..AL21 |
21655-60010 |
US $11.65 |
||
|
21658
|
21658
21658-15250 Ring, O(For Main Guide Upper)[05.1982 - 08.1984] 3AHU..AL21 |
21658-15250 |
from US $5.53 |
||
|
21659A
|
21659A
21653-15250 Ring, O(For Suction Chamber)[05.1982 - 08.1984] 3AHU..AL21 NO.2 |
21653-15250 |
US $6.12 |
||
|
21659A
|
21659A
21659-15250 Ring, O(For Suction Chamber)[05.1982 - 08.1984] 3AHU..AL21 NO.1 |
21659-15250 |
US $10.92 |
||
|
21669
|
21669
21669-15250 Diaphragm[05.1982 - 08.1984] 3AHU..AL21 |
21669-15250 |
US $57.37 |
||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[05.1982 - 10.1989] 2AU,3A#..AL2# |
21699-28150 |
US $14.50 |
||
|
21699B
|
21699B
21699-11090
Boot(For Compensator)
[08.1984 - 10.1989] 2AU,3A#..AL2# |
21699-11090 |
— | ||
|
21699B
|
21699B
21699-15250
Boot(For Compensator)
[05.1982 - 08.1984] 3AHU..AL21 |
21699-15250 |
— | ||
|
21722
|
21722
21722-22010 Spring, Pump Damping[05.1982 - 10.1989] 2AU,3A#..AL2# |
21722-22010 |
US $3.89 |
||
|
21723
|
21723
21723-15250 Spring, Idle Adjusting[05.1982 - 08.1984] 3AHU..AL21 |
21723-15250 |
US $5.97 |
||
|
21723
|
21723
21724-51011 Spring, Idle Adjusting[08.1984 - 10.1989] 2AU,3A#..AL2# |
21724-51011 |
US $4.37 |
||
|
21724
|
21724
21723-11041 Spring, Idle Adjusting[05.1982 - 08.1984] 3AHU..AL21 |
21723-11041 |
US $5.53 |
||
|
21726
|
21726
21726-15251 Spring, 1St Idle Adjusting[05.1982 - 08.1984] 3AHU..AL21 |
21726-15251 |
US $6.12 |
||
|
21731
|
21731
21723-21030 Spring, Idle Adjusting[05.1982 - 08.1984] 2AU,3A#..AL2# |
21723-21030 |
US $4.19 |
||
|
21732
|
21732
21723-60010
Spring, Idle Adjusting
[05.1982 - 08.1984] 3AHU..AL21 |
21723-60010 |
— | ||
|
21735
|
21735
21735-15250 Spring, Pump Arm[05.1982 - 08.1984] 3AHU..AL21 |
21735-15250 |
US $9.76 |
||
|
21751
|
21751
21894-15251 Union, Nipple[05.1982 - 08.1984] 3AHU..AL21 |
21894-15251 |
US $85.90 |
||
|
21756
|
21756
21756-15250 Spring, Back(For Throttle Shaft)[05.1982 - 08.1984] 3AHU..AL21 |
21756-15250 |
US $9.17 |
||
| replacement | |||||
|
21756
|
21756
21756-15251 Spring, Back(For Throttle Shaft)[05.1982 - 08.1984] 3AHU..AL21 |
21756-15251 |
US $9.17 |
||
|
21763
|
21763
21763-38010 Pin, Float Lever[05.1982 - 08.1984] 3AHU..AL21 |
21763-38010 |
US $3.93 |
||
|
21765
|
21765
21765-15250 Pin(For Pump Plunger)[05.1982 - 08.1984] 3AHU..AL21 |
21765-15250 |
US $3.49 |
||
|
21769
|
21769
21769-15250 Pin(For Suction Chanber Adjusting)[05.1982 - 08.1984] 3AHU..AL21 |
21769-15250 |
US $9.17 |
||
|
21781
|
21781
21781-11090 Plug, Main Passage(For Carburetor Jet)[05.1982 - 08.1984] 3AHU..AL21 |
21781-11090 |
US $6.26 |
||
|
21785A
|
21785A
21672-15250 Plug, Plate(For Suction Chanber Adjusting)[08.1984 - 10.1989] 2AU,3A#..AL2# NO.2 |
21672-15250 |
US $3.93 |
||
|
21785A
|
21785A
21785-11090 Plug, Plate(For Suction Chanber Adjusting)[08.1984 - 10.1989] 2AU,3A#..AL2# NO.1 |
21785-11090 |
US $4.51 |
||
|
21785A
|
21785A
21785-15250 Plug, Plate(For Suction Chanber Adjusting)[05.1982 - 08.1984] 3AHU..AL21 NO.1 |
21785-15250 |
US $9.17 |
||
|
21785A
|
21785A
21786-15250 Plug, Plate(For Suction Chanber Adjusting)[05.1982 - 08.1984] 3AHU..AL21 NO.2 |
21786-15250 |
US $3.79 |
||
| replacement | |||||
|
21785A
|
21785A
21672-15250 Plug, Plate(For Suction Chanber Adjusting)[05.1982 - 08.1984] 3AHU..AL21 NO.2 |
21672-15250 |
US $3.93 |
||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[07.1983 - 08.1984] 3AHU..AL21 |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[07.1983 - 08.1984] 3AHU..AL21 |
21791-13010 |
US $3.32 |
||
|
21794
|
21794
21794-40010 Ring, Retainer, No.1(For Throttle Shaft)[05.1982 - 08.1984] 3AHU..AL21 |
21794-40010 |
US $3.06 |
||
|
21811
|
21811
21811-11060 Bolt, Union Nipple[05.1982 - 10.1989] 2AU,3A#..AL2# |
21811-11060 |
US $9.46 |
||
|
21826
|
21826
21826-24470
Screw, Pump Arm Set
[05.1982 - 08.1984] 3AHU..AL21 |
21826-24470 |
— | ||
|
21833
|
21833
21833-31012 Screw, Set, No.1(For Carburetor Body Set)[08.1984 - 10.1989] 2AU,3A#..AL2# |
21833-31012 |
US $4.08 |
||
|
21833
|
21833
21833-33010
Screw, Set, No.1(For Carburetor Body Set)
[05.1982 - 08.1984] 2AU,3A#..AL2# |
21833-33010 |
— | ||
|
21834
|
21834
21821-25180 Screw, Set, No.2(For Carburetor Body Set)[05.1982 - 08.1984] 3AHU..AL21 |
21821-25180 |
from US $3.52 |
||
|
21850
|
21850
21276-11090 Screw, 1St Idle Adjusting[08.1984 - 10.1989] 2AU,3A#..AL2# |
21276-11090 |
US $4.08 |
||
|
21850
|
21850
21276-15250 Screw, Throttle Switch Adjusting[05.1982 - 08.1984] 3AHU..AL21 |
21276-15250 |
US $9.17 |
||
| replacement | |||||
|
21850
|
21850
21276-11090 Screw, 1St Idle Adjusting[05.1982 - 08.1984] 3AHU..AL21 |
21276-11090 |
US $4.08 |
||
|
21869
|
21869
21869-15250 Spring(For Main Jet)[05.1982 - 08.1984] 3AHU..AL21 |
21869-15250 |
US $5.39 |
||
| replacement | |||||
|
21869
|
21869
21756-15251 Spring, Back(For Throttle Shaft)[05.1982 - 08.1984] 3AHU..AL21 |
21756-15251 |
US $9.17 |
||
|
21934
|
21934
21062-15250 Solenoid, Throttle Valve[05.1982 - 08.1984] 3AHU..AL21 |
21062-15250 |
US $183.46 |
||
|
21934E
|
21934E
21656-15250 Ring, O(For Solenoid Valve)[05.1982 - 08.1984] 3AHU..AL21 |
21656-15250 |
US $10.05 |
||
|
21934F
|
21934F
21633-15250 Gasket[05.1982 - 08.1984] 3AHU..AL21 |
21633-15250 |
US $4.08 |
||
|
2157627010
|
2157627010
21576-27010
Clip, Pump Strainer
|
21576-27010 |
— | ||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
2182115060
|
2182115060
21821-15060 Screw, 2Nd Throttle Valve Set |
21821-15060 |
US $3.06 |
||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
2182138310
|
2182138310
21821-38310 Screw, 2Nd Throttle Valve Set |
21821-38310 |
US $4.16 |
||
|
2184426350
|
2184426350
21844-26350
Screw, Thermostat Case Set
|
21844-26350 |
— | ||
|
2188543030
|
2188543030
21885-43030
New Genuine Part
|
21885-43030 |
— | ||
|
9321915016
|
9321915016
93219-15016
Screw, Cover Set, No.1
|
93219-15016 |
— | ||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
