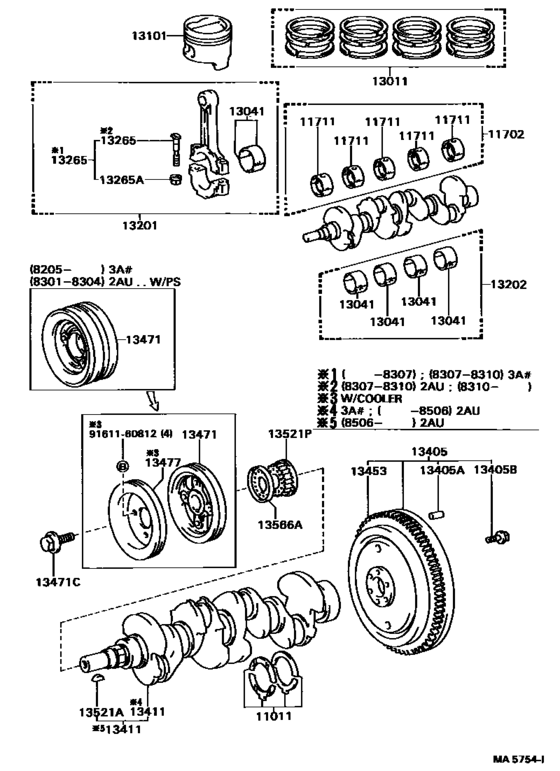

Crankshaft & Piston ([05.1982 - ] (8205- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-15010
Washer Set, Crankshaft Thrust
[05.1982 - 10.1989] 2AU,3A#..AL2# ＳＴＤ |
11011-15010 |
— | ||
| replacement | |||||
|
11011
|
11011
11011-15021 Washer Set, Crankshaft Thrust[05.1982 - 10.1989] 2AU,3A#..AL2# ＳＴＤ |
11011-15021 |
from US $31.46 |
||
|
11702
|
11702
11704-15011 Bearing Set, Crankshaft[05.1982 - 01.1983] 2AU,3A#..AL2# U/S 0.25 |
11704-15011 |
US $297.02 |
||
|
11702
|
11702
11704-15050 Bearing Set, Crankshaft[01.1983 - 10.1989] 2AU,3A#..AL2# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-15050 |
US $301.39 |
||
| replacement | |||||
|
11702
|
11702
11704-16010 Bearing Set, Crankshaft[01.1983 - 10.1989] 2AU,3A#..AL2# Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-16010 |
from US $117.18 |
||
|
11711
|
11711
11701-15011-01 Bearing, Crankshaft[05.1982 - 01.1983] 2AU,3A#..AL2# MARK"1",MARK 1 |
11701-15011-01 |
US $51.25 |
||
|
11711
|
11711
11701-15011-02 Bearing, Crankshaft[05.1982 - 01.1983] 2AU,3A#..AL2# MARK"2",MARK 2 |
11701-15011-02 |
US $51.25 |
||
|
11711
|
11711
11701-15011-03 Bearing, Crankshaft[05.1982 - 01.1983] 2AU,3A#..AL2# MARK"3",MARK 3 |
11701-15011-03 |
US $51.25 |
||
|
11711
|
11711
11701-15030-01
Bearing, Crankshaft
[01.1983 - 03.1984] 2AU,3A#..AL2# MARK"1",MARK 1 |
11701-15030-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[01.1983 - 03.1984] 2AU,3A#..AL2# MARK"1",MARK 1 |
11701-16010-01 |
from US $20.20 |
||
|
11711
|
11711
11701-15030-02 Bearing, Crankshaft[01.1983 - 03.1984] 2AU,3A#..AL2# MARK"2",MARK 2 |
11701-15030-02 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[01.1983 - 03.1984] 2AU,3A#..AL2# MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15030-03 Bearing, Crankshaft[01.1983 - 03.1984] 2AU,3A#..AL2# MARK"3",MARK 3 |
11701-15030-03 |
US $46.30 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[01.1983 - 03.1984] 2AU,3A#..AL2# MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
11711
|
11711
11701-15050-01 Bearing, Crankshaft[07.1984 - 08.1988] 2AU,3A#..AL2# MARK"1",MARK 1 |
11701-15050-01 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[07.1984 - 08.1988] 2AU,3A#..AL2# MARK"1",MARK 1 |
11701-16010-01 |
from US $20.20 |
||
|
11711
|
11711
11701-15050-02
Bearing, Crankshaft
[07.1984 - 08.1988] 2AU,3A#..AL2# MARK"2",MARK 2 |
11701-15050-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[07.1984 - 08.1988] 2AU,3A#..AL2# MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-15050-03 Bearing, Crankshaft[07.1984 - 08.1988] 2AU,3A#..AL2# MARK"3",MARK 3 |
11701-15050-03 |
US $46.45 |
||
| replacement | |||||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[07.1984 - 08.1988] 2AU,3A#..AL2# MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
11711
|
11711
11701-16010-01 Bearing, Crankshaft[03.1984 - 07.1984] 2AU,3A#..AL2# MARK"1",MARK 1 |
11701-16010-01 |
from US $20.20 |
||
|
11711
|
11711
11701-16010-02 Bearing, Crankshaft[03.1984 - 07.1984] 2AU,3A#..AL2# MARK"2",MARK 2 |
11701-16010-02 |
from US $18.29 |
||
|
11711
|
11711
11701-16010-03 Bearing, Crankshaft[03.1984 - 07.1984] 2AU,3A#..AL2# MARK"3",MARK 3 |
11701-16010-03 |
from US $20.73 |
||
|
13011
|
13011
13011-15010 Ring Set, Piston[05.1982 - 04.1983] 3A#..AL21 STD |
13011-15010 |
US $183.46 |
||
| replacement | |||||
|
13011
|
13011
13011-15011 Ring Set, Piston[05.1982 - 04.1983] 3A#..AL21 STD |
13011-15011 |
from US $109.79 |
||
|
13011
|
13011
13011-15011 Ring Set, Piston[04.1983 - 10.1989] 3A#..AL21,25 ＳＴＤ,STD |
13011-15011 |
from US $109.79 |
||
|
13011
|
13011
13013-15010 Ring Set, Piston[05.1982 - 10.1989] 3A#..AL21,25 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-15010 |
US $198.02 |
||
|
13011
|
13011
13014-15010 Ring Set, Piston[05.1982 - 10.1989] 3A#..AL21,25 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-15010 |
US $198.02 |
||
|
13011
|
13011
13015-15010 Ring Set, Piston[05.1982 - 10.1989] 3A#..AL21,25 Ｏ／Ｓ １．００,O/S 1.00 |
13015-15010 |
US $198.02 |
||
|
13041
|
13041
13041-15011-01 Bearing, Connecting Rod[05.1982 - 07.1983] 2AU,3A#..AL2# MARK"1",MARK 1 |
13041-15011-01 |
US $37.56 |
||
|
13041
|
13041
13041-15011-02 Bearing, Connecting Rod[05.1982 - 07.1983] 2AU,3A#..AL2# MARK"2",MARK 2 |
13041-15011-02 |
US $37.56 |
||
|
13041
|
13041
13041-15011-03 Bearing, Connecting Rod[05.1982 - 07.1983] 2AU,3A#..AL2# MARK"3",MARK 3 |
13041-15011-03 |
US $37.56 |
||
|
13041
|
13041
13041-15030-01 Bearing, Connecting Rod[10.1983 - 10.1989] 2AU,3A#..AL2# MARK"1",MARK 1 |
13041-15030-01 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-01 Bearing, Connecting Rod[10.1983 - 10.1989] 2AU,3A#..AL2# MARK"1",MARK 1 |
13041-15031-01 |
from US $17.49 |
||
|
13041
|
13041
13041-15030-02 Bearing, Connecting Rod[10.1983 - 10.1989] 2AU,3A#..AL2# MARK"2",MARK 2 |
13041-15030-02 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-02 Bearing, Connecting Rod[10.1983 - 10.1989] 2AU,3A#..AL2# MARK"2",MARK 2 |
13041-15031-02 |
from US $17.49 |
||
|
13041
|
13041
13041-15030-03 Bearing, Connecting Rod[10.1983 - 10.1989] 2AU,3A#..AL2# MARK"3",MARK 3 |
13041-15030-03 |
US $33.63 |
||
| replacement | |||||
|
13041
|
13041
13041-15031-03 Bearing, Connecting Rod[10.1983 - 10.1989] 2AU,3A#..AL2# MARK"3",MARK 3 |
13041-15031-03 |
US $38 |
||
|
13101
|
13101
13101-15020 Piston Sub-Assy, W/pin[05.1982 - 01.1988] 3A#..AL21,25 ＳＴＤ,STD |
13101-15020 |
US $88.82 |
||
| replacement | |||||
|
13101
|
13101
13101-15020-02 Piston Sub-Assy, W/pin[05.1982 - 01.1988] 3A#..AL21,25 ＳＴＤ,STD |
13101-15020-02 |
US $53.80 |
||
|
13101
|
13101
13103-15020 Piston Sub-Assy, W/pin[05.1982 - 10.1989] 3A#..AL21,25 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-15020 |
US $90.27 |
||
|
13101
|
13101
13104-15020 Piston Sub-Assy, W/pin[05.1982 - 10.1989] 3A#..AL21,25 Ｏ／Ｓ ０．７５,O/S 0.75 |
13104-15020 |
US $90.27 |
||
|
13101
|
13101
13105-15020 Piston Sub-Assy, W/pin[05.1982 - 10.1989] 3A#..AL21,25 Ｏ／Ｓ １．００,O/S 1.00 |
13105-15020 |
US $90.27 |
||
|
13201
|
13201
13201-19015 Rod Sub-Assy, Connecting[05.1982 - 05.1983] 2AU,3A#..AL2# |
13201-19015 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[05.1982 - 05.1983] 2AU,3A#..AL2# |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19016 Rod Sub-Assy, Connecting[05.1983 - 06.1983] 2AU,3A#..AL2# |
13201-19016 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[05.1983 - 06.1983] 2AU,3A#..AL2# |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19045 Rod Sub-Assy, Connecting[06.1983 - 07.1983] 2AU,3A#..AL2# |
13201-19045 |
US $167.44 |
||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[06.1983 - 07.1983] 2AU,3A#..AL2# |
13201-19056 |
US $147.06 |
||
|
13201
|
13201
13201-19055
Rod Sub-Assy, Connecting
[10.1983 - 10.1989] 2AU,3A#..AL2# |
13201-19055 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-19056 Rod Sub-Assy, Connecting[10.1983 - 10.1989] 2AU,3A#..AL2# |
13201-19056 |
US $147.06 |
||
|
13202
|
13202
13204-15011 Bearing Set, Connecting Rod[05.1982 - 07.1983] 2AU,3A#..AL2# U/S 0.25 |
13204-15011 |
US $167.44 |
||
|
13202
|
13202
13204-15030
Bearing Set, Connecting Rod (0.25)
[10.1983 - 10.1989] 2AU,3A#..AL2# Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-15030 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-15031 Bearing Set, Connecting Rod (0.25)[10.1983 - 10.1989] 2AU,3A#..AL2# Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-15031 |
US $145.60 |
||
|
13265
|
13265
13265-15020 Bolt, Connecting Rod[10.1983 - 08.1987] 2AU,3A#..AL2# |
13265-15020 |
US $6.41 |
||
| replacements | |||||
|
13265
|
13265
13265-16010 Bolt, Connecting Rod[10.1983 - 08.1987] 2AU,3A#..AL2# |
13265-16010 |
US $8 |
||
|
13265
|
13265
90170-09003 Nut, Hexagon(For Connecting Rod Bolt)[10.1983 - 08.1987] 2AU,3A#..AL2# |
90170-09003 |
US $2.88 |
||
|
13265
|
13265
13265-19015 Bolt, Connecting Rod[05.1982 - 07.1983] 2AU,3A#..AL2# |
13265-19015 |
US $6.70 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[10.1983 - 08.1987] 2AU,3A#..AL2# |
90170-09001 |
US $2.72 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[05.1982 - 07.1983] 2AU,3A#..AL2# |
90179-08014 |
US $2.62 |
||
|
13405
|
13405
13405-15060 Flywheel Sub-Assy[07.1984 - 10.1989] 2AU,3A#..AL2#..MTM |
13405-15060 |
US $298.48 |
||
|
13405
|
13405
13405-19105 Flywheel Sub-Assy[05.1982 - 07.1984] 2AU,3A#..AL2#..MTM |
13405-19105 |
US $329.06 |
||
| replacements | |||||
|
13405
|
13405
13405-15060 Flywheel Sub-Assy[05.1982 - 07.1984] 2AU,3A#..AL2#..MTM |
13405-15060 |
US $298.48 |
||
|
13405
|
13405
90105-10042 Bolt, Flywheel Setting[05.1982 - 07.1984] 2AU,3A#..AL2#..MTM |
90105-10042 |
from US $1.31 |
||
|
13405
|
13405
90250-08120 Pin, Straight, No.1[05.1982 - 07.1984] 2AU,3A#..AL2#..MTM |
90250-08120 |
from US $1.01 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[05.1982 - 10.1989] 2AU,3A#..AL2#..MTM 長さ＝１８，外径＝８,L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[05.1982 - 10.1989] 2AU,3A#..AL2#..MTM |
90105-10042 |
from US $1.31 |
||
|
13411
|
13411
13411-15011 Crankshaft[05.1982 - 08.1982] 3A#..AL21 |
13411-15011 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[05.1982 - 08.1982] 3A#..AL21 |
13411-15900 |
from US $785.23 |
||
|
13411
|
13411
13411-15021 Crankshaft[08.1982 - 01.1983] 3A#..AL21 |
13411-15021 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[08.1982 - 01.1983] 3A#..AL21 |
13411-15900 |
from US $785.23 |
||
|
13411
|
13411
13411-15030 Crankshaft[01.1983 - 01.1987] 3A#..AL21,25 |
13411-15030 |
US $1,017.74 |
||
| replacement | |||||
|
13411
|
13411
13411-15900 Crankshaft[01.1983 - 01.1987] 3A#..AL21,25 |
13411-15900 |
from US $785.23 |
||
|
13453
|
13453
13453-15010 Gear, Flywheel Ring[05.1982 - 10.1989] 2AU,3A#..AL2#..MTM |
13453-15010 |
US $97.55 |
||
|
13471
|
13471
13407-15013 Pulley, Crankshaft[05.1982 - 08.1985] 3A#..AL21,25 |
13407-15013 |
US $147.06 |
||
| replacement | |||||
|
13471
|
13471
13470-15050 Pulley, Crankshaft[05.1982 - 08.1985] 3A#..AL21,25 |
13470-15050 |
US $149.97 |
||
|
13471C
|
13471C
90105-12012 Bolt(For Crankshaft Pulley Set)[05.1982 - 01.1986] 2AU,3A#..AL2# |
90105-12012 |
US $4.89 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[05.1982 - 09.1986] 2AU,3A#..AL2# |
90280-05010 |
US $4.16 |
||
|
13521P
|
13521P
13521-15010 Pulley, Crankshaft Timing[05.1982 - 10.1989] 2AU,3A#..AL2# |
13521-15010 |
US $36.33 |
||
|
13566A
|
13566A
13566-15010 Guide, Timing Belt[05.1982 - 10.1989] 2AU,3A#..AL2# |
13566-15010 |
from US $5.44 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
