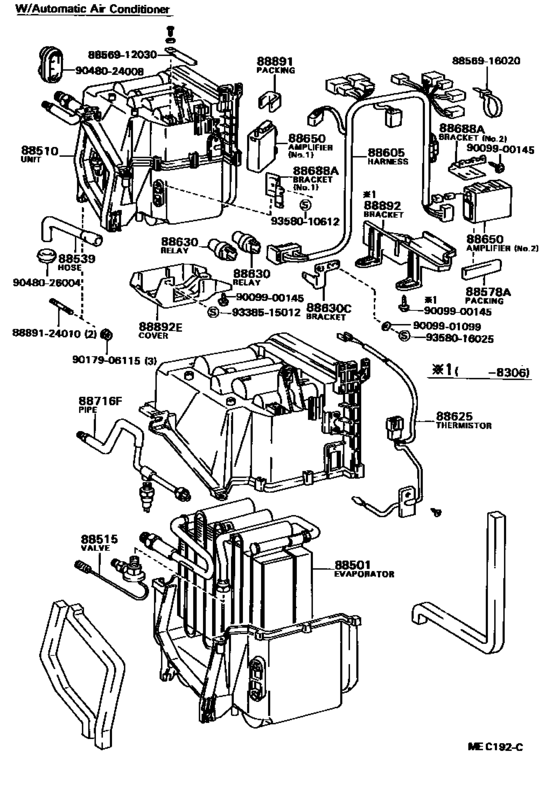

Heating & Air Conditioning - Cooler Unit ([05.1982 - ] (8205- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-16060
Evaporator Sub-Assy, Cooler, No.1
[05.1982 - 06.1985] AL2# |
88501-16060 |
— | ||
|
88510
|
88510
88510-16080
Unit Assy, Cooler
[05.1982 - 06.1985] AL2# |
88510-16080 |
— | ||
|
88515
|
88515
88515-16030
Valve, Cooler Expansion
[05.1982 - 03.1984] AL2# |
88515-16030 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[05.1982 - 03.1984] AL2# |
88515-16031 |
US $109.52 |
||
|
88515
|
88515
88515-16031 Valve, Cooler Expansion[03.1984 - 10.1989] AL2# |
88515-16031 |
US $109.52 |
||
|
88539
|
88539
88539-16020
Hose, Cooler Unit Drain, No.1
[05.1982 - 10.1989] AL2# |
88539-16020 |
— | ||
|
88578A
|
88578A
88578-14050
Packing, Cooler Stabilizer Amplifier
[05.1982 - 10.1989] AL21,25..EX,SX,VE,VS W/*AAC |
88578-14050 |
— | ||
|
88605
|
88605
88605-16110
Harness Sub-Assy, Cooler Wiring, No.1
[05.1982 - 10.1989] AL21,25..EX,SX,VE,VS W/*AAC |
88605-16110 |
— | ||
|
88605
|
88605
88605-16130
Harness Sub-Assy, Cooler Wiring, No.1
[05.1982 - 10.1989] AL2# |
88605-16130 |
— | ||
|
88625
|
88625
88625-16060
Thermistor, Cooler, No.1
[05.1982 - 05.1985] AL2# |
88625-16060 |
— | ||
|
88630
|
88630
90987-03001 Relay[05.1982 - 10.1989] AL21,25..EX,SX,VE,VS W/*AAC |
90987-03001 |
from US $31.32 |
||
|
88630C
|
88630C
88688-16100
Bracket, Cooler Relay
[05.1982 - 10.1989] AL21,25..EX,SX,VE,VS W/*AAC |
88688-16100 |
— | ||
|
88650
|
88650
88650-16030
Amplifier Assy, Cooler Stabilizer
[05.1982 - 03.1984] AL2# OD=32.5 |
88650-16030 |
— | ||
|
88650
|
88650
88650-16050
Amplifier Assy, Cooler Stabilizer
[05.1982 - 10.1989] AL21,25..EX,SX,VE,VS W/*AAC,NO.2 |
88650-16050 |
— | ||
|
88650
|
88650
88650-16120
Amplifier Assy, Cooler Stabilizer
[08.1984 - 05.1986] AL20,21 NO.1 |
88650-16120 |
— | ||
|
88688A
|
88688A
88688-16020
Bracket, Cooler Stabilizer Amplifier
[05.1982 - 10.1989] AL21,25..EX,SX,VE,VS W/*AAC,NO.2 |
88688-16020 |
— | ||
|
88688A
|
88688A
88688-16070
Bracket, Cooler Stabilizer Amplifier
[05.1982 - 10.1989] AL2# NO.1 |
88688-16070 |
— | ||
|
88716F
|
88716F
88716-16160 Pipe, Cooler Refrigerant Liquid, F[05.1982 - 10.1989] AL2# |
88716-16160 |
US $45.86 |
||
|
88891
|
88891
88892-16100
Packing (For Cooler)
[05.1982 - 10.1989] AL2# |
88892-16100 |
— | ||
|
88892
|
88892
88892-16060
Bracket, Cooler Evaporator Mounting
[05.1982 - 06.1983] AL2# |
88892-16060 |
— | ||
|
88892E
|
88892E
88891-16010
Cover, Relay
[05.1982 - 10.1989] AL21,25..EX,SX,VE,VS W/*AAC |
88891-16010 |
— | ||
|
8856912030
|
8856912030
88569-12030
Clamp (For Cooler Wiring Harness), No.1
|
88569-12030 |
— | ||
|
8856916020
|
8856916020
88569-16020
Clamp (for Cooler Relay)
|
88569-16020 |
— | ||
|
8889124010
|
8889124010
88891-24010
Packing (for Cooler)
|
88891-24010 |
— | ||
|
9009900145
|
9009900145
90099-00145
New Genuine Part
|
90099-00145 |
— | ||
|
9009901099
|
9009901099
90099-01099
New Genuine Part
|
90099-01099 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9048024008
|
9048024008
90480-24008
Grommet (For Cooler Unit)
|
90480-24008 |
— | ||
| replacement | |||||
|
9048024008
|
9048024008
90099-32137 Grommet (For Cooler Unit) |
90099-32137 |
US $5.39 |
||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.40 |
||
|
9338515012
|
9338515012
93385-15012 SCREW |
93385-15012 |
US $2.56 |
||
|
9358010612
|
9358010612
93580-10612
New Genuine Part
|
93580-10612 |
— | ||
|
9358016025
|
9358016025
93580-16025 New Genuine Part |
93580-16025 |
