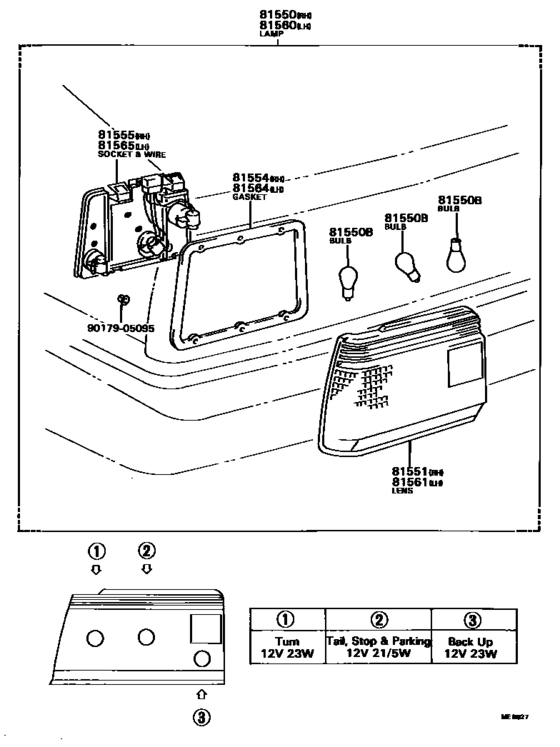

Rear Combination Lamp ([05.1982 - 08.1984] (8205-8408)CRS..4DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-16390 Lamp Assy, Rear Combination, Rh[05.1986 - 10.1989] AL2#..CRS |
81550-16390 |
US $308.67 |
||
| replacement | |||||
|
81550
|
81550
81550-16320 Lamp Assy, Rear Combination, Rh[05.1986 - 10.1989] AL2#..CRS |
81550-16320 |
US $307.22 |
||
|
81550
|
81550
81550-80128 Lamp Assy, Rear Combination, Rh[05.1982 - 05.1983] AL2#..CRS..4DS |
81550-80128 |
US $272.27 |
||
| replacement | |||||
|
81550
|
81550
81550-16191 Lamp Assy, Rear Combination, Rh[05.1982 - 05.1983] AL2#..CRS..4DS |
81550-16191 |
US $311.58 |
||
|
81550
|
81550
81550-80170
Lamp Assy, Rear Combination, Rh
[05.1983 - 08.1984] AL2#..CRS..4DS |
81550-80170 |
— | ||
| replacement | |||||
|
81550
|
81550
81550-16191 Lamp Assy, Rear Combination, Rh[05.1983 - 08.1984] AL2#..CRS..4DS |
81550-16191 |
US $311.58 |
||
|
81550
|
81550
81550-80241 Lamp Assy, Rear Combination, Rh[08.1984 - 05.1986] AL2#..CRS..4DS |
81550-80241 |
US $272.27 |
||
| replacement | |||||
|
81550
|
81550
81550-16320 Lamp Assy, Rear Combination, Rh[08.1984 - 05.1986] AL2#..CRS..4DS |
81550-16320 |
US $307.22 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[05.1982 - 10.1989] AL2# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[05.1982 - 10.1989] AL2# １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1982 - 10.1989] AL2# １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-16190 Lens, Rear Combination Lamp, Rh[05.1982 - 05.1983] AL2#..CRS..4DS |
81551-16190 |
US $251.89 |
||
| replacement | |||||
|
81551
|
81551
81551-16191 Lens, Rear Combination Lamp, Rh[05.1982 - 05.1983] AL2#..CRS..4DS |
81551-16191 |
US $251.89 |
||
|
81551
|
81551
81551-16191 Lens, Rear Combination Lamp, Rh[05.1983 - 08.1984] AL2#..CRS..4DS |
81551-16191 |
US $251.89 |
||
|
81551
|
81551
81551-16320
Lens, Rear Combination Lamp, Rh
[08.1984 - 05.1986] AL2#..CRS..4DS |
81551-16320 |
— | ||
|
81554
|
81554
81554-16200 Gasket, Rear Combination Lamp Body, Rh[05.1982 - 08.1984] AL2#..4DS |
81554-16200 |
US $15.29 |
||
|
81554
|
81554
81554-16320 Gasket, Rear Combination Lamp Body, Rh[08.1984 - 10.1989] AL2#..4DS |
81554-16320 |
US $15.87 |
||
|
81555
|
81555
81555-16190 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1982 - 08.1984] AL2#..CRS..4DS |
81555-16190 |
US $55.76 |
||
|
81555
|
81555
81555-16320 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.1984 - 10.1989] AL2#..4DS..(DX,EX,GX) |
81555-16320 |
US $57.95 |
||
|
81560
|
81560
81560-16420 Lamp Assy, Rear Combination, Lh[05.1986 - 10.1989] AL2#..CRS |
81560-16420 |
US $308.67 |
||
| replacement | |||||
|
81560
|
81560
81560-16320 Lamp Assy, Rear Combination, Lh[05.1986 - 10.1989] AL2#..CRS |
81560-16320 |
US $307.22 |
||
|
81560
|
81560
81560-80132 Lamp Assy, Rear Combination, Lh[05.1982 - 05.1983] AL2#..CRS..4DS |
81560-80132 |
US $272.27 |
||
| replacement | |||||
|
81560
|
81560
81560-16191 Lamp Assy, Rear Combination, Lh[05.1982 - 05.1983] AL2#..CRS..4DS |
81560-16191 |
US $311.58 |
||
|
81560
|
81560
81560-80175 Lamp Assy, Rear Combination, Lh[05.1983 - 08.1984] AL2#..CRS..4DS |
81560-80175 |
US $298.48 |
||
| replacement | |||||
|
81560
|
81560
81560-16191 Lamp Assy, Rear Combination, Lh[05.1983 - 08.1984] AL2#..CRS..4DS |
81560-16191 |
US $311.58 |
||
|
81560
|
81560
81560-80247 Lamp Assy, Rear Combination, Lh[08.1984 - 05.1986] AL2#..CRS..4DS |
81560-80247 |
US $272.27 |
||
| replacement | |||||
|
81560
|
81560
81560-16320 Lamp Assy, Rear Combination, Lh[08.1984 - 05.1986] AL2#..CRS..4DS |
81560-16320 |
US $307.22 |
||
|
81561
|
81561
81561-16190 Lens, Rear Combination Lamp, Lh[05.1982 - 05.1983] AL2#..CRS..4DS |
81561-16190 |
US $251.89 |
||
| replacement | |||||
|
81561
|
81561
81561-16191 Lens, Rear Combination Lamp, Lh[05.1982 - 05.1983] AL2#..CRS..4DS |
81561-16191 |
US $251.89 |
||
|
81561
|
81561
81561-16191 Lens, Rear Combination Lamp, Lh[05.1983 - 08.1984] AL2#..CRS..4DS |
81561-16191 |
US $251.89 |
||
|
81561
|
81561
81561-16320 Lens, Rear Combination Lamp, Lh[08.1984 - 08.1986] AL2#..4DS..(DX,EX,GX) |
81561-16320 |
US $230.05 |
||
|
81564
|
81564
81554-16200 Gasket, Rear Combination Lamp Body, Rh[05.1982 - 08.1984] AL2#..4DS |
81554-16200 |
US $15.29 |
||
|
81564
|
81564
81554-16320 Gasket, Rear Combination Lamp Body, Rh[08.1984 - 10.1989] AL2#..4DS |
81554-16320 |
US $15.87 |
||
|
81565
|
81565
81565-16190 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[05.1982 - 08.1984] AL2#..CRS..4DS |
81565-16190 |
US $55.76 |
||
|
81565
|
81565
81565-16320 Socket & Wire Sub-Assy, Rear Combination Lamp, Lh[08.1984 - 10.1989] AL2#..4DS..(DX,EX,GX) |
81565-16320 |
US $57.95 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
