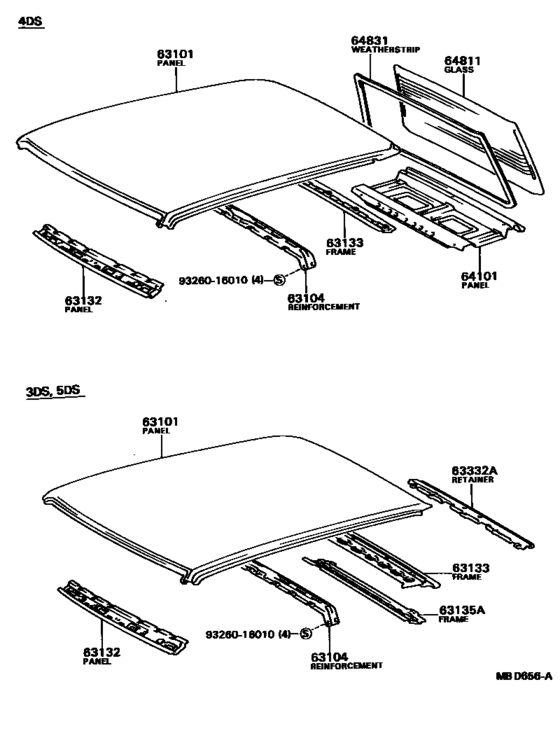

Roof Panel & Back Window Glass ([05.1982 - ] (8205- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63101
|
63101
63111-16120 Panel Sub-Assy, Roof[05.1982 - 10.1989] AL2#..4DS |
63111-16120 |
US $441.17 |
||
|
63104
|
63104
63141-16020 Reinforcement Sub-Assy, Roof Panel, Center[05.1982 - 10.1989] AL2# |
63141-16020 |
US $21.55 |
||
|
63132
|
63132
63132-16020 Panel, Windshield Header, Inner[05.1982 - 10.1989] AL2# |
63132-16020 |
US $22.71 |
||
|
63133
|
63133
63133-16020 Frame, Back Window Opening, Upper[05.1982 - 10.1989] AL2#..4DS |
63133-16020 |
US $35.67 |
||
|
64101
|
64101
64101-16050 Panel Sub-Assy, Upper Back[05.1982 - 10.1989] AL2#..4DS |
64101-16050 |
US $218.40 |
||
|
64811
|
64811
64811-16180 Glass, Back Window[05.1982 - 10.1989] AL2#..4DS ＊ＥＨＴＴ，厚さ＝３．５,*EHTT,T=3.5 |
64811-16180 |
US $844.48 |
||
|
64831
|
64831
64812-16030 Weatherstrip, Back Window Glass[05.1982 - 10.1989] AL2#..4DS |
64812-16030 |
US $132.50 |
||
|
9326016010
|
9326016010
93260-16010
New Genuine Part
|
93260-16010 |
— | ||
| replacement | |||||
|
9326016010
|
9326016010
93260-56010 SCREW |
93260-56010 |
from US $1.12 |
||
