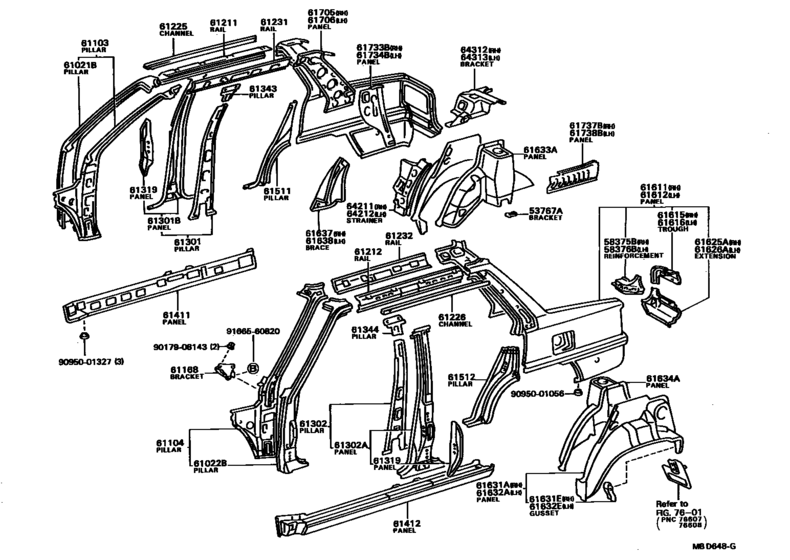

Side Member ([05.1982 - 08.1984] (8205-8408)4DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53767A
|
53767A
53767-20040 Bracket, Battery Wirring Harness[05.1982 - 10.1989] AL20,21..4DS |
53767-20040 |
US $3.49 |
||
|
58375B
|
58375B
58375-16020 Reinforcement, Body Lower Back Panel, Rh[05.1982 - 08.1984] AL2#..4DS |
58375-16020 |
US $18.49 |
||
|
58376B
|
58376B
58376-16020
Reinforcement, Body Lower Back Panel, Lh
[05.1982 - 08.1984] AL2#..4DS |
58376-16020 |
— | ||
|
61021B
|
61021B
61021-16901
Pillar Sub-Assy, Front Body, Upper Rh
[05.1982 - 10.1989] AL2# |
61021-16901 |
— | ||
|
61022B
|
61022B
61022-16901 Pillar Sub-Assy, Front Body, Upper Lh[05.1982 - 10.1989] AL2# |
61022-16901 |
US $403.31 |
||
|
61103
|
61103
61021-16040 Pillar Sub-Assy, Front Body, Rh[05.1982 - 11.1986] AL2# |
61021-16040 |
US $502.32 |
||
| replacement | |||||
|
61103
|
61103
61021-16080 Pillar Sub-Assy, Front Body, Rh[05.1982 - 11.1986] AL2# |
61021-16080 |
US $502.32 |
||
|
61104
|
61104
61022-16060 Pillar Sub-Assy, Front Body, Lh[05.1982 - 10.1989] AL2# |
61022-16060 |
US $503.78 |
||
|
61168
|
61168
61166-16020 Bracket, Instrument Panel To Cowl Side, Lh[05.1982 - 10.1989] AL2# |
61166-16020 |
US $17.33 |
||
|
61211
|
61211
61211-16060 Rail, Roof Side, Outer Rh[05.1982 - 10.1989] AL2#..4DS |
61211-16060 |
US $65.37 |
||
|
61212
|
61212
61212-16060 Rail, Roof Side, Outer Lh[05.1982 - 10.1989] AL2#..4DS |
61212-16060 |
US $65.37 |
||
|
61225
|
61225
61265-16020 Channel, Roof Drip, Center Rh[05.1982 - 10.1989] AL2#..4DS |
61265-16020 |
US $51.40 |
||
|
61226
|
61226
61266-16020 Channel, Roof Drip, Center Lh[05.1982 - 10.1989] AL2#..4DS |
61266-16020 |
US $51.40 |
||
|
61231
|
61231
61231-16080 Rail, Roof Side, Inner Rh[05.1982 - 10.1989] AL2#..4DS |
61231-16080 |
US $57.37 |
||
|
61232
|
61232
61232-16080 Rail, Roof Side, Inner Lh[05.1982 - 10.1989] AL2#..4DS |
61232-16080 |
US $57.37 |
||
|
61301
|
61301
61301-16020 Pillar Sub-Assy, Center Body, Rh[05.1982 - 10.1989] AL2#..4DS,5DS |
61301-16020 |
US $377.10 |
||
|
61301B
|
61301B
61301-16901 Pillar, Center Body, Outer Rh[05.1982 - 10.1989] AL2#..4DS,5DS |
61301-16901 |
US $377.10 |
||
|
61302
|
61302
61302-16030 Pillar Sub-Assy, Center Body, Lh[05.1982 - 10.1989] AL2#..4DS,5DS |
61302-16030 |
US $521.25 |
||
|
61302A
|
61302A
61302-16901 Pillar, Center Body, Outer Lh[05.1982 - 10.1989] AL2#..4DS,5DS |
61302-16901 |
US $377.10 |
||
|
61319
|
61319
61318-16020 Panel, Center Body Pillar Finish[05.1982 - 10.1989] AL2#..4DS,5DS RH |
61318-16020 |
US $11.36 |
||
|
61319
|
61319
61319-16020 Panel, Center Body Pillar Finish[05.1982 - 10.1989] AL2#..4DS,5DS LH |
61319-16020 |
US $11.36 |
||
|
61343
|
61343
61341-16020 Pillar, Center Body, Inner Upper Rh[05.1982 - 10.1989] AL2#..4DS,5DS |
61341-16020 |
US $27.66 |
||
|
61344
|
61344
61342-16020 Pillar, Center Body, Inner Upper Lh[05.1982 - 10.1989] AL2#..4DS,5DS |
61342-16020 |
US $27.66 |
||
|
61411
|
61411
61401-16100
Panel, Rocker, Outer Rh
[05.1982 - 10.1989] AL2#..4DS,5DS |
61401-16100 |
— | ||
|
61412
|
61412
61402-16100
Panel, Rocker, Outer Lh
[05.1982 - 10.1989] AL2#..4DS,5DS |
61402-16100 |
— | ||
|
61511
|
61511
61511-16900 Pillar, Quarter Lock, Rh[05.1982 - 10.1989] AL2#..4DS,5DS |
61511-16900 |
US $115.02 |
||
|
61512
|
61512
61512-16900 Pillar, Quarter Lock, Lh[05.1982 - 10.1989] AL2#..4DS,5DS |
61512-16900 |
US $115.02 |
||
|
61611
|
61611
61601-16900
Panel, Quarter, Rh
[05.1982 - 08.1984] AL2#..4DS |
61601-16900 |
— | ||
| replacements | |||||
|
61611
|
61611
58375-16020 Reinforcement, Body Lower Back Panel, Rh[05.1982 - 08.1984] AL2#..4DS |
58375-16020 |
US $18.49 |
||
|
61611
|
61611
61601-16918 Rail Sub-assy, Center Door, Under[05.1982 - 08.1984] AL2#..4DS |
61601-16918 |
US $529.98 |
||
|
61611
|
61611
61621-16050 Trough, Luggage Compartment Opening, Rh[05.1982 - 08.1984] AL2#..4DS |
61621-16050 |
US $23.44 |
||
|
61611
|
61611
61625-16030 Extension Sub-Assy, Quarter Panel, Rh[05.1982 - 08.1984] AL2#..4DS |
61625-16030 |
US $29.85 |
||
|
61611
|
61611
61601-16915 Panel, Quarter, Rh[08.1984 - 10.1989] AL20,21..4DS |
61601-16915 |
US $556.19 |
||
|
61612
|
61612
61602-16900 Panel, Quarter, Lh[05.1982 - 08.1984] AL2#..4DS W/FULL LID OPENER |
61602-16900 |
US $525.62 |
||
| replacements | |||||
|
61612
|
61612
58376-16020
Reinforcement, Body Lower Back Panel, Lh
[05.1982 - 08.1984] AL2#..4DS W/FULL LID OPENER |
58376-16020 |
— | ||
|
61612
|
61612
61602-16927 New Genuine Part[05.1982 - 08.1984] AL2#..4DS W/FULL LID OPENER |
61602-16927 |
US $529.98 |
||
|
61612
|
61612
61622-16050 Trough, Luggage Compartment Opening, Lh[05.1982 - 08.1984] AL2#..4DS W/FULL LID OPENER |
61622-16050 |
US $23.44 |
||
|
61612
|
61612
61626-16030 Extension Sub-Assy, Quarter Panel, Lh[05.1982 - 08.1984] AL2#..4DS W/FULL LID OPENER |
61626-16030 |
US $29.85 |
||
|
61612
|
61612
61602-16924 Panel, Quarter, Lh[08.1984 - 10.1989] AL20,21..4DS W/FULL LID OPENER |
61602-16924 |
US $556.19 |
||
|
61615
|
61615
61621-16050 Trough, Luggage Compartment Opening, Rh[05.1982 - 08.1984] AL2#..4DS |
61621-16050 |
US $23.44 |
||
|
61615
|
61615
61621-16060 Trough, Luggage Compartment Opening, Rh[08.1984 - 10.1989] AL2#..4DS |
61621-16060 |
US $23.73 |
||
|
61616
|
61616
61622-16050 Trough, Luggage Compartment Opening, Lh[05.1982 - 08.1984] AL2#..4DS |
61622-16050 |
US $23.44 |
||
|
61616
|
61616
61622-16060 Trough, Luggage Compartment Opening, Lh[08.1984 - 10.1989] AL2#..4DS |
61622-16060 |
US $23.73 |
||
|
61625A
|
61625A
61625-16030 Extension Sub-Assy, Quarter Panel, Rh[05.1982 - 08.1984] AL2#..4DS |
61625-16030 |
US $29.85 |
||
|
61626A
|
61626A
61626-16030 Extension Sub-Assy, Quarter Panel, Lh[05.1982 - 08.1984] AL2#..4DS |
61626-16030 |
US $29.85 |
||
|
61631A
|
61631A
61605-16130
Panel, Quarter Wheel House, Outer Rh
[05.1982 - 08.1984] AL2#..4DS |
61605-16130 |
— | ||
|
61631A
|
61631A
61605-16210 Panel, Quarter Wheel House, Outer Rh[08.1984 - 10.1989] AL20,21..4DS |
61605-16210 |
US $237.33 |
||
|
61631E
|
61631E
61645-16010 Gusset, Quarter Wheel House, Rear Rh[05.1982 - 08.1984] AL2# |
61645-16010 |
US $9.17 |
||
|
61631E
|
61631E
61645-16030 Gusset, Quarter Wheel House, Rear Rh[08.1984 - 10.1989] AL20,21..4DS |
61645-16030 |
US $10.63 |
||
|
61632A
|
61632A
61606-16150
Panel, Quarter Wheel House, Outer Lh
[05.1982 - 08.1984] AL2#..4DS |
61606-16150 |
— | ||
|
61632A
|
61632A
61606-16230 Panel, Quarter Wheel House, Outer Lh[08.1984 - 10.1989] AL20,21..4DS |
61606-16230 |
US $237.33 |
||
|
61632E
|
61632E
61646-16020 Gusset, Quarter Wheel House, Rear Lh[05.1982 - 08.1984] AL2# |
61646-16020 |
US $9.17 |
||
|
61632E
|
61632E
61646-16050
Gusset, Quarter Wheel House, Rear Lh
[08.1984 - 10.1989] AL20,21..4DS |
61646-16050 |
— | ||
|
61633A
|
61633A
61607-16060
Panel, Quarter Wheel House, Inner Rh
[05.1982 - 10.1989] AL20,21..4DS |
61607-16060 |
— | ||
|
61634A
|
61634A
61608-16070
Panel, Quarter Wheel House, Inner Lh
[05.1982 - 10.1989] AL20,21..4DS |
61608-16070 |
— | ||
|
61637
|
61637
61635-16060
Brace, Quarter Wheel House, Rh
[05.1982 - 08.1984] AL2#..4DS |
61635-16060 |
— | ||
|
61637
|
61637
61635-16090 Brace, Quarter Wheel House, Rh[08.1984 - 10.1989] AL20,21..4DS |
61635-16090 |
US $45.86 |
||
|
61638
|
61638
61636-16060
Brace, Quarter Wheel House, Lh
[05.1982 - 08.1984] AL2#..4DS |
61636-16060 |
— | ||
|
61638
|
61638
61636-16100 Brace, Quarter Wheel House, Lh[08.1984 - 10.1989] AL20,21..4DS |
61636-16100 |
US $45.86 |
||
|
61705
|
61705
61731-16900
Panel Sub-Assy, Roof Side, Inner Rh
[05.1982 - 10.1989] AL2#..4DS |
61731-16900 |
— | ||
|
61706
|
61706
61732-16900
Panel Sub-Assy, Roof Side, Inner Lh
[05.1982 - 10.1989] AL2#..4DS |
61732-16900 |
— | ||
|
61733B
|
61733B
61735-16040
Panel, Roof Side, Inner Rear Rh
[05.1982 - 08.1984] AL2#..4DS |
61735-16040 |
— | ||
|
61733B
|
61733B
61735-16050 Panel, Roof Side, Inner Rear Rh[08.1984 - 10.1989] AL20,21..4DS |
61735-16050 |
US $43.10 |
||
|
61734B
|
61734B
61736-16040
Panel, Roof Side, Inner Rear Lh
[05.1982 - 08.1984] AL2#..4DS |
61736-16040 |
— | ||
|
61734B
|
61734B
61736-16050 Panel, Roof Side, Inner Rear Lh[08.1984 - 10.1989] AL20,21..4DS |
61736-16050 |
US $43.10 |
||
|
61737B
|
61737B
61737-16020
Panel, Roof Side, Inner Lower Rh
[05.1982 - 08.1984] AL2#..4DS |
61737-16020 |
— | ||
|
61737B
|
61737B
61737-16040 Panel, Roof Side, Inner Lower Rh[08.1984 - 10.1989] AL20,21..4DS |
61737-16040 |
US $60.42 |
||
|
61738B
|
61738B
61738-16020
Panel, Roof Side, Inner Lower Lh
[05.1982 - 08.1984] AL2#..4DS |
61738-16020 |
— | ||
|
61738B
|
61738B
61738-16040 Panel, Roof Side, Inner Lower Lh[08.1984 - 10.1989] AL20,21..4DS |
61738-16040 |
US $60.42 |
||
|
64211
|
64211
64211-16900
Strainer, Package Tray To Floor, Rh
[05.1982 - 10.1989] AL20,21..4DS |
64211-16900 |
— | ||
|
64212
|
64212
64212-16900 Strainer, Package Tray To Floor, Lh[05.1982 - 10.1989] AL20,21..4DS |
64212-16900 |
US $69.31 |
||
|
64312
|
64312
64312-16900
Bracket, Package Tray, Rh
[05.1982 - 10.1989] AL2#..4DS |
64312-16900 |
— | ||
|
64313
|
64313
64313-16900
Bracket, Package Tray, Lh
[05.1982 - 10.1989] AL2#..4DS |
64313-16900 |
— | ||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.76 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $5.76 |
||
|
9166560820
|
9166560820
91665-60820
New Genuine Part
|
91665-60820 |
— | ||
| replacement | |||||
|
9166560820
|
9166560820
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
