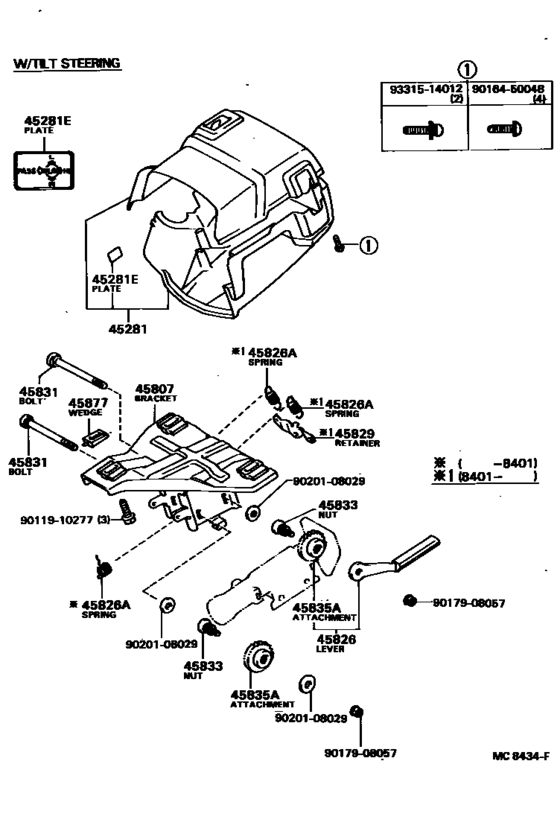

Steering Column & Shaft ([05.1982 - ] (8205- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45281
|
45281
45286-16901-01 Housing, Steering Column[08.1984 - 05.1986] AL21..SX,VS BLACK,BLACK,TRIM2# |
45286-16901-01 |
US $67.56 |
||
| replacement | |||||
|
45281
|
45281
45286-16901-11 Housing, Steering Column[08.1984 - 05.1986] AL21..SX,VS BLACK,BLACK,TRIM2# |
45286-16901-11 |
US $67.56 |
||
|
45281
|
45281
45286-16901-02 Housing, Steering Column[05.1982 - 08.1984] AL2#..DX,GX,SX,VC,VL,VS DARK WINE,RED/MAROON,TRIM3# |
45286-16901-02 |
US $67.56 |
||
| replacement | |||||
|
45281
|
45281
45286-16901-C0 Housing, Steering Column[05.1982 - 08.1984] AL2#..DX,GX,SX,VC,VL,VS DARK WINE,RED/MAROON,TRIM3# |
45286-16901-C0 |
US $67.56 |
||
|
45281
|
45281
45286-16901-03 Housing, Steering Column[05.1982 - 08.1984] AL2#..DX,GX,SX,VC,VL,VS GRAY,GRAY,TRIM1# |
45286-16901-03 |
US $67.56 |
||
| replacement | |||||
|
45281
|
45281
45286-16901-11 Housing, Steering Column[05.1982 - 08.1984] AL2#..DX,GX,SX,VC,VL,VS GRAY,GRAY,TRIM1# |
45286-16901-11 |
US $67.56 |
||
|
45281
|
45281
45286-16901-06 Housing, Steering Column[05.1982 - 08.1984] AL2#..DX,GX,SX,VC,VL,VS BROWN,BROWN,TRIM4# |
45286-16901-06 |
US $67.56 |
||
| replacement | |||||
|
45281
|
45281
45286-16901-11 Housing, Steering Column[05.1982 - 08.1984] AL2#..DX,GX,SX,VC,VL,VS BROWN,BROWN,TRIM4# |
45286-16901-11 |
US $67.56 |
||
|
45281
|
45281
45286-16901-13 Housing, Steering Column[08.1984 - 05.1986] AL2#..DX,GX,SX,VC,VL,VS GRAY,GRAY,TRIM1# |
45286-16901-13 |
US $67.56 |
||
| replacement | |||||
|
45281
|
45281
45286-16901-11 Housing, Steering Column[08.1984 - 05.1986] AL2#..DX,GX,SX,VC,VL,VS GRAY,GRAY,TRIM1# |
45286-16901-11 |
US $67.56 |
||
|
45281
|
45281
45286-16902-01 Housing, Steering Column[08.1984 - 05.1986] AL21..SX,VS W/TILT STEERING,BLACK,BLACK,TRIM2# |
45286-16902-01 |
US $67.56 |
||
| replacement | |||||
|
45281
|
45281
45286-16902-11 Housing, Steering Column[08.1984 - 05.1986] AL21..SX,VS W/TILT STEERING,BLACK,BLACK,TRIM2# |
45286-16902-11 |
US $67.56 |
||
|
45281
|
45281
45286-16902-13 Housing, Steering Column[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL) W/TILT STEERING,GRAY,GRAY,TRIM1#; AL21,25..EX,SX,VE,VS W/TILT STEERING,GRAY,GRAY,TRIM1# |
45286-16902-13 |
US $67.56 |
||
| replacement | |||||
|
45281
|
45281
45286-16902-11 Housing, Steering Column[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL) W/TILT STEERING,GRAY,GRAY,TRIM1#; AL21,25..EX,SX,VE,VS W/TILT STEERING,GRAY,GRAY,TRIM1# |
45286-16902-11 |
US $67.56 |
||
|
45281E
|
45281E
45283-12010 Plate, Safety Caution[05.1982 - 10.1989] AL2# |
45283-12010 |
US $3.06 |
||
|
45807
|
45807
45082-16020 Bracket Sub-Assy, Steering Column Upper Support[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL); AL21,25..EX,SX,VE,VS |
45082-16020 |
US $70.62 |
||
|
45826
|
45826
45804-16012 Lever, Steering Tilt[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL); AL21,25..EX,SX,VE,VS |
45804-16012 |
US $26.35 |
||
|
45826A
|
45826A
90506-14045 Spring, Tension(For Steering Tilt Lever)[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL); AL21,25..EX,SX,VE,VS |
90506-14045 |
US $2.77 |
||
|
45829
|
45829
45829-16020 Retainer, Tilt Steering Return Spring[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL); AL21,25..EX,SX,VE,VS |
45829-16020 |
US $6.41 |
||
|
45831
|
45831
45831-16010 Bolt, Tilt Lever Lock, No.1[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL) UPR; AL21,25..EX,SX,VE,VS UPR |
45831-16010 |
US $4.66 |
||
|
45831
|
45831
45832-16010 Bolt, Tilt Lever Lock, No.1[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL) LWR; AL21,25..EX,SX,VE,VS LWR |
45832-16010 |
US $4.66 |
||
|
45833
|
45833
45833-16010 Nut, Tilt Steering Adjusting, No.1[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL) UPR; AL21,25..EX,SX,VE,VS UPR |
45833-16010 |
US $10.92 |
||
|
45833
|
45833
45834-16010 Nut, Tilt Steering Adjusting, No.1[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL) LWR; AL21,25..EX,SX,VE,VS LWR |
45834-16010 |
US $10.92 |
||
|
45835A
|
45835A
45835-16011 Attachment, Tilt Lever Serration[08.1984 - 05.1986] AL20,21..(3DS,5DS)..(GX,VL); AL21,25..EX,SX,VE,VS |
45835-16011 |
US $25.77 |
||
|
45877
|
45877
45877-12010 Wedge, Caster(For Steering Column Tube Setting)[05.1982 - 10.1989] AL2# |
45877-12010 |
US $4.37 |
||
|
9011910277
|
9011910277
90119-10277 New Genuine Part |
90119-10277 |
US $3.64 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.88 |
||
|
9017908057
|
9017908057
90179-08057 NUT |
90179-08057 |
from US $0.80 |
||
|
9020108029
|
9020108029
90201-08029 Washer, Plate(For Steering Tilt Lever) |
90201-08029 |
US $3.35 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
