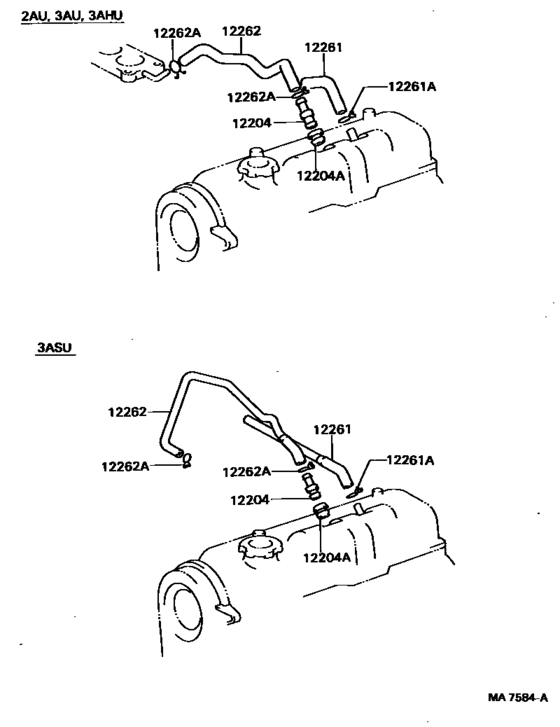

Ventilation Hose ([05.1982 - ] (8205- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-15022 Valve Sub-Assy, Ventilation[05.1982 - 09.1983] 2AU,3A#..AL2# |
12204-15022 |
from US $12.69 |
||
|
12204
|
12204
12204-15030 Valve Sub-Assy, Ventilation[08.1984 - 10.1989] 2AU,3A#..AL2# |
12204-15030 |
US $18.17 |
||
|
12204
|
12204
12204-71010 Valve Sub-Assy, Ventilation[09.1983 - 08.1984] 2AU,3A#..AL2# |
12204-71010 |
US $16.02 |
||
| replacement | |||||
|
12204
|
12204
12204-15030 Valve Sub-Assy, Ventilation[09.1983 - 08.1984] 2AU,3A#..AL2# |
12204-15030 |
US $18.17 |
||
|
12204A
|
12204A
90480-18001 Grommet(For Ventilation System)[05.1982 - 10.1989] 2AU,3A#..AL2# |
90480-18001 |
from US $3.98 |
||
|
12261
|
12261
12261-15020
Hose, Ventilation
[05.1982 - 08.1984] 2AU,3A#..AL2# |
12261-15020 |
— | ||
|
12261A
|
12261A
90467-16010 Clip Or Clamp(For Ventilation Hose)[05.1982 - 10.1989] 2AU,3A#..AL2# |
90467-16010 |
US $4 |
||
|
12262
|
12262
12262-15020 Hose, Ventilation, No.2[05.1982 - 08.1984] 3AHU..AL21 |
12262-15020 |
US $19.07 |
||
|
12262A
|
12262A
90467-13103 Clip Or Clamp(For Ventilation Hose)[05.1982 - 10.1989] 2AU,3A#..AL2# |
90467-13103 |
US $1.76 |
||
