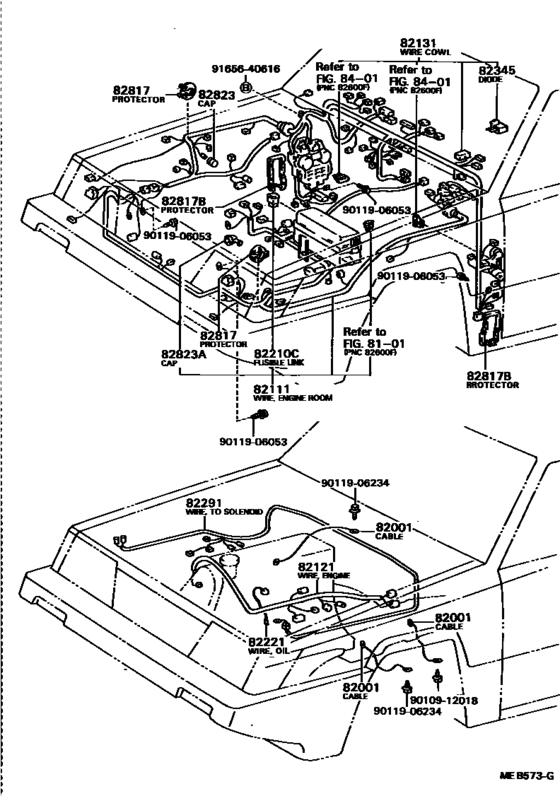

Wiring & Clamp ([05.1982 - ] (8205- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1984
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3AHU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 08.1984
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07119 Cable, Bond, No.1[05.1982 - 10.1989] AL2# L=320,CLUCH-FLOOR |
90980-07119 |
US $9.03 |
||
|
82001
|
82001
90980-07200 Cable, Bond, No.1[05.1982 - 02.1984] AL2# L=350,ENGINE-DASH |
90980-07200 |
US $7.72 |
||
|
82001
|
82001
90980-07208
Cable, Bond, No.1
[05.1982 - 10.1989] AL2#..MTM L=210,MISSION-FLOOR |
90980-07208 |
— | ||
|
82001
|
82001
90980-07233 Cable, Bond, No.1[02.1984 - 10.1989] AL2# L=350,ENGINE-DASH |
90980-07233 |
US $9.90 |
||
|
82111
|
82111
82111-16030
Wire, Engine Room Main
[05.1982 - 08.1984] AL21..SX,VS |
82111-16030 |
— | ||
|
82111
|
82111
82111-16270 Wire, Engine Room Main[08.1984 - 05.1986] AL21..EX,SX,VE,VS |
82111-16270 |
US $848.85 |
||
|
82121
|
82121
82121-16110
Wire, Engine
[05.1982 - 08.1984] AL21..SX,VS; AL20..(3DS,5DS)..(DX,VC) W/KNOCK CONTROL |
82121-16110 |
— | ||
|
82121
|
82121
82121-16140 Wire, Engine[08.1984 - 10.1989] AL20,21..MTM |
82121-16140 |
US $39.02 |
||
|
82131
|
82131
82131-16230
Wire, Cowl
[05.1982 - 08.1984] AL21..4DS..(SX,VS) |
82131-16230 |
— | ||
|
82210C
|
82210C
90982-08188 Fusible Link[05.1982 - 10.1989] AL2# ３０Ａ，メス端子,30A |
90982-08188 |
from US $5.13 |
||
|
82210C
|
82210C
90982-08190 Fusible Link[05.1982 - 10.1989] AL2# ６０Ａ，メス端子,60A |
90982-08190 |
US $12 |
||
|
82221
|
82221
82221-16010 Wire, Oil Pressure Switch[05.1982 - 10.1989] AL2# |
82221-16010 |
US $9.17 |
||
|
82817
|
82817
82817-16020
Protector, Wiring Harness, No.1
[05.1982 - 10.1989] AL2# |
82817-16020 |
— | ||
|
82817B
|
82817B
82817-16040 Protector, Wiring Harness, No.3[05.1982 - 10.1989] AL2# RH |
82817-16040 |
US $18.35 |
||
|
82817B
|
82817B
82817-16050 Protector, Wiring Harness, No.3[05.1982 - 10.1989] AL2# LH |
82817-16050 |
US $18.35 |
||
|
82823
|
82823
82823-16010 Cap, Terminal, No.1[08.1984 - 10.1989] AL2# |
82823-16010 |
US $3.49 |
||
|
82823
|
82823
82823-30010 Cap, Terminal, No.1[05.1982 - 08.1984] AL2# |
82823-30010 |
US $5.39 |
||
|
82823A
|
82823A
82823-22020
Cap, Terminal, No.1
[05.1982 - 08.1984] AL2# ALTERNATOR |
82823-22020 |
— | ||
| replacement | |||||
|
82823A
|
82823A
82823-12020
Cap, Terminal, No.1
[05.1982 - 08.1984] AL2# ALTERNATOR |
82823-12020 |
— | ||
|
82823A
|
82823A
82823-32020 Cap, Terminal, No.1[08.1984 - 01.1989] AL2# ALTERNATOR |
82823-32020 |
US $4.66 |
||
|
9010912018
|
9010912018
90109-12018 New Genuine Part |
90109-12018 |
US $3.64 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9011906234
|
9011906234
90119-06234 New Genuine Part |
90119-06234 |
US $1.75 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
