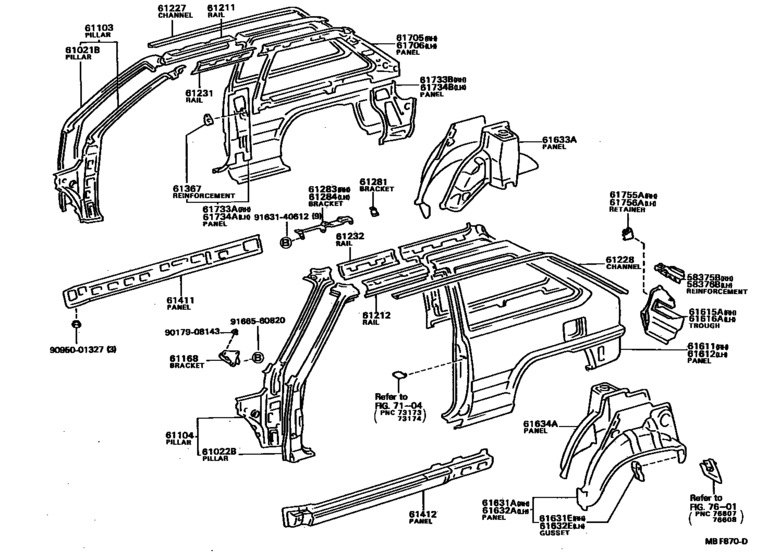

Side Member ([08.1983 - 05.1986] (8308-8605)3DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 05.1986
- Gear Shift Type
- 5F
- No.of Doors
- 3DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58375B
|
58375B
58375-16010 Reinforcement, Body Lower Back Panel, Rh[05.1982 - 05.1986] AL20,21..3DS,5DS |
58375-16010 |
US $27.96 |
||
|
58376B
|
58376B
58376-16010 Reinforcement, Body Lower Back Panel, Lh[05.1982 - 05.1986] AL20,21..3DS,5DS |
58376-16010 |
US $27.96 |
||
|
61021B
|
61021B
61021-16901
Pillar Sub-Assy, Front Body, Upper Rh
[05.1982 - 10.1989] AL2# |
61021-16901 |
— | ||
|
61022B
|
61022B
61022-16901 Pillar Sub-Assy, Front Body, Upper Lh[05.1982 - 10.1989] AL2# |
61022-16901 |
US $403.31 |
||
|
61103
|
61103
61021-16040 Pillar Sub-Assy, Front Body, Rh[05.1982 - 11.1986] AL2# |
61021-16040 |
US $502.32 |
||
| replacement | |||||
|
61103
|
61103
61021-16080 Pillar Sub-Assy, Front Body, Rh[05.1982 - 11.1986] AL2# |
61021-16080 |
US $502.32 |
||
|
61104
|
61104
61022-16060 Pillar Sub-Assy, Front Body, Lh[05.1982 - 10.1989] AL2# |
61022-16060 |
US $503.78 |
||
|
61168
|
61168
61166-16020 Bracket, Instrument Panel To Cowl Side, Lh[05.1982 - 10.1989] AL2# |
61166-16020 |
US $17.33 |
||
|
61211
|
61211
61211-16030
Rail, Roof Side, Outer Rh
[08.1983 - 05.1986] AL20,21..3DS |
61211-16030 |
— | ||
|
61212
|
61212
61212-16030
Rail, Roof Side, Outer Lh
[08.1983 - 05.1986] AL20,21..3DS |
61212-16030 |
— | ||
|
61227
|
61227
61267-16030 Channel, Roof Drip Side, Rear Rh[08.1983 - 05.1986] AL20,21..3DS |
61267-16030 |
US $60.28 |
||
|
61228
|
61228
61268-16030
Channel, Roof Drip Side, Rear Lh
[08.1983 - 05.1986] AL20,21..3DS |
61268-16030 |
— | ||
|
61231
|
61231
61231-16040
Rail, Roof Side, Inner Rh
[08.1983 - 05.1986] AL20,21..3DS |
61231-16040 |
— | ||
|
61232
|
61232
61232-16040
Rail, Roof Side, Inner Lh
[08.1983 - 05.1986] AL20,21..3DS |
61232-16040 |
— | ||
|
61281
|
61281
61281-16010
Bracket, Sliding Roof Housing Mounting, No.1
[05.1982 - 05.1986] AL21..(3DS,5DS)..(EX,SX,VE,VS) |
61281-16010 |
— | ||
|
61283
|
61283
61283-16010
Bracket, Sliding Roof Housing Mounting, No.3 Rh
[05.1982 - 05.1986] AL21..(3DS,5DS)..(EX,SX,VE,VS) |
61283-16010 |
— | ||
|
61284
|
61284
61284-16010
Bracket, Sliding Roof Housing Mounting, No.3 Lh
[05.1982 - 05.1986] AL21..(3DS,5DS)..(EX,SX,VE,VS) |
61284-16010 |
— | ||
|
61367
|
61367
61367-14010 Reinforcement, Belt Anchor To Center Pillar, Lower[08.1983 - 05.1986] AL20,21..3DS |
61367-14010 |
US $9.17 |
||
|
61411
|
61411
61401-16090 Panel, Rocker, Outer Rh[08.1983 - 05.1986] AL20,21..3DS |
61401-16090 |
US $264.99 |
||
|
61411
|
61411
61401-16110
Panel, Rocker, Outer Rh
[08.1984 - 05.1986] AL21..3DS SPORTS PACKAGE |
61401-16110 |
— | ||
|
61412
|
61412
61402-16090 Panel, Rocker, Outer Lh[08.1983 - 05.1986] AL20,21..3DS |
61402-16090 |
US $264.99 |
||
|
61412
|
61412
61402-16110
Panel, Rocker, Outer Lh
[08.1984 - 05.1986] AL21..3DS SPORTS PACKAGE |
61402-16110 |
— | ||
|
61611
|
61611
61601-16912 Panel, Quarter, Rh[05.1984 - 05.1986] AL20,21..3DS |
61601-16912 |
US $557.65 |
||
|
61611
|
61611
61601-16914 Panel, Quarter, Rh[08.1984 - 05.1986] AL21..3DS SPORTS PACKAGE |
61601-16914 |
US $557.65 |
||
|
61612
|
61612
61602-16921 Panel, Quarter, Lh[05.1984 - 05.1986] AL20,21..3DS..(DX,SX,VC,VS) W/FULL LID OPENER |
61602-16921 |
US $556.19 |
||
|
61612
|
61612
61602-16926 Panel, Quarter, Lh[08.1984 - 05.1986] AL21..3DS SPORTS PACKAGE |
61602-16926 |
US $557.65 |
||
|
61615A
|
61615A
61621-16030 Trough, Back Door Opening, Rh[05.1982 - 05.1986] AL20,21..3DS,5DS |
61621-16030 |
US $77.17 |
||
|
61616A
|
61616A
61622-16030 Trough, Back Door Opening, Lh[05.1982 - 05.1986] AL20,21..3DS,5DS |
61622-16030 |
US $77.17 |
||
|
61631A
|
61631A
61605-16060 Panel, Quarter Wheel House, Outer Rh[08.1983 - 05.1986] AL20,21..3DS |
61605-16060 |
US $123.76 |
||
| replacement | |||||
|
61631A
|
61631A
61605-16150 Panel, Quarter Wheel House, Outer RhQUARTER WHEEL HOUSE, OUTER RH [08.1983 - 05.1986] AL20,21..3DS |
61605-16150 |
US $123.76 |
||
|
61631E
|
61631E
61645-16010 Gusset, Quarter Wheel House, Rear Rh[05.1982 - 08.1984] AL2# |
61645-16010 |
US $9.17 |
||
|
61632A
|
61632A
61606-16080 Panel, Quarter Wheel House, Outer Lh[08.1983 - 05.1986] AL20,21..3DS |
61606-16080 |
US $123.76 |
||
| replacement | |||||
|
61632A
|
61632A
61606-16170 Panel, Quarter Wheel House, Outer LhQUARTER WHEEL HOUSE, OUTER LH [08.1983 - 05.1986] AL20,21..3DS |
61606-16170 |
US $135.41 |
||
|
61632E
|
61632E
61646-16020 Gusset, Quarter Wheel House, Rear Lh[05.1982 - 08.1984] AL2# |
61646-16020 |
US $9.17 |
||
|
61633A
|
61633A
61607-16110 Panel, Quarter Wheel House, Inner Rh[05.1982 - 05.1986] AL20,21..3DS,5DS |
61607-16110 |
US $196.56 |
||
|
61634A
|
61634A
61608-16140 Panel, Quarter Wheel House, Inner Lh[05.1982 - 10.1989] AL20,21..3DS,5DS |
61608-16140 |
US $196.56 |
||
|
61705
|
61705
61705-16909
Panel Sub-Assy, Roof Side, Inner Rh
[08.1983 - 05.1986] AL20,21..3DS |
61705-16909 |
— | ||
|
61706
|
61706
61706-16909
Panel Sub-Assy, Roof Side, Inner Lh
[08.1983 - 05.1986] AL20,21..3DS |
61706-16909 |
— | ||
|
61733A
|
61733A
61733-16900 Panel, Roof Side, Inner Front Rh[08.1983 - 05.1986] AL20,21..3DS |
61733-16900 |
US $51.69 |
||
|
61733B
|
61733B
61735-16010 Panel, Roof Side, Inner Rear Rh[05.1982 - 01.1986] AL20,21..3DS,5DS |
61735-16010 |
US $37.42 |
||
| replacement | |||||
|
61733B
|
61733B
61735-16030 Panel, Roof Side, Inner Rear Rh[05.1982 - 01.1986] AL20,21..3DS,5DS |
61735-16030 |
US $41.20 |
||
|
61733B
|
61733B
61735-16030 Panel, Roof Side, Inner Rear Rh[01.1986 - 05.1986] AL20,21..3DS,5DS |
61735-16030 |
US $41.20 |
||
|
61734A
|
61734A
61734-16900
Panel, Roof Side, Inner Front Lh
[08.1983 - 05.1986] AL20,21..3DS |
61734-16900 |
— | ||
|
61734B
|
61734B
61736-16010 Panel, Roof Side, Inner Rear Lh[05.1982 - 01.1986] AL20,21..3DS,5DS |
61736-16010 |
US $37.42 |
||
| replacement | |||||
|
61734B
|
61734B
61736-16030 Panel, Roof Side, Inner Rear Lh[05.1982 - 01.1986] AL20,21..3DS,5DS |
61736-16030 |
US $41.20 |
||
|
61734B
|
61734B
61736-16030 Panel, Roof Side, Inner Rear Lh[01.1986 - 05.1986] AL20,21..3DS,5DS |
61736-16030 |
US $41.20 |
||
|
61755A
|
61755A
61755-16020 Retainer, Deck Side Trim, Upper Rh[05.1982 - 05.1986] AL20,21..3DS,5DS |
61755-16020 |
US $13.83 |
||
|
61756A
|
61756A
61755-16020 Retainer, Deck Side Trim, Upper Rh[05.1982 - 05.1986] AL20,21..3DS,5DS |
61755-16020 |
US $13.83 |
||
|
9017908143
|
9017908143
90179-08143 NUT |
90179-08143 |
US $1.76 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $5.76 |
||
|
9163140612
|
9163140612
91631-40612 New Genuine Part |
91631-40612 |
US $1.75 |
||
|
9166560820
|
9166560820
91665-60820
New Genuine Part
|
91665-60820 |
— | ||
| replacement | |||||
|
9166560820
|
9166560820
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
