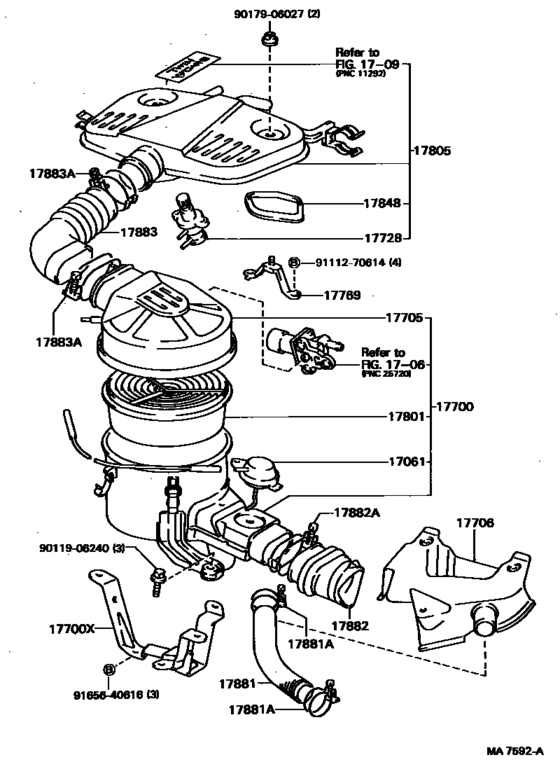

Air Cleaner ([08.1984 - ] (8408- )3ASU) Diagram Toyota CORSA/ TERCEL
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 05.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-15030
Diaphragm Sub-Assy
[08.1984 - 10.1989] 2AU,3A#..AL2# |
17061-15030 |
— | ||
|
17700
|
17700
17700-15180 Cleaner Assy, Air[08.1984 - 10.1989] 3ASU..AL21,25 |
17700-15180 |
US $834.29 |
||
|
17700X
|
17700X
17771-15010 Bracket, Air Cleaner[08.1984 - 10.1989] 3ASU..AL21,25 |
17771-15010 |
US $63.77 |
||
|
17705
|
17705
17705-15090
Cap Sub-Assy, Air Cleaner
[08.1984 - 10.1989] 3ASU..AL21,25 |
17705-15090 |
— | ||
|
17706
|
17706
17902-15060
Inlet Sub-Assy, Air Cleaner, No.2
[05.1982 - 08.1984] 2AU,3A#..AL2# |
17902-15060 |
— | ||
|
17706
|
17706
17902-15090 Inlet Sub-Assy, Air Cleaner, No.2[08.1984 - 10.1989] 3ASU..AL21,25 |
17902-15090 |
US $56.93 |
||
|
17728
|
17728
17728-13030 Valve, Thermostatic[08.1984 - 08.1986] 3ASU..AL21,25 |
17728-13030 |
US $90.27 |
||
|
17769
|
17769
17769-15010 Support, Air Cleaner[08.1984 - 10.1989] 3ASU..AL21,25 |
17769-15010 |
US $14.12 |
||
|
17801
|
17801
17801-15010 Element Sub-Assy, Air Cleaner Filter[05.1982 - 08.1984] 2AU,3A#..AL2# |
17801-15010 |
US $22.34 |
||
|
17801
|
17801
17801-63010
Element Sub-Assy, Air Cleaner Filter
[08.1984 - 10.1989] 3ASU..AL21,25 |
17801-63010 |
— | ||
|
17805
|
17805
17860-15010 Connector Sub-Assy, Intake Air[08.1984 - 10.1989] 3ASU..AL21,25 |
17860-15010 |
US $327.60 |
||
|
17848
|
17848
17848-15010
Gasket, Air Cleaner To Carburetor
[08.1984 - 10.1989] 3ASU..AL21,25 |
17848-15010 |
— | ||
|
17881
|
17881
17881-34110
Hose, Air Cleaner, No.1
[08.1984 - 02.1985] 3ASU..AL21 |
17881-34110 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-74040
Hose, Air Cleaner, No.1
[08.1984 - 02.1985] 3ASU..AL21 |
17881-74040 |
— | ||
|
17881
|
17881
17881-63010
Hose, Air Cleaner, No.1
[05.1982 - 08.1984] 2AU,3A#..AL2# |
17881-63010 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-74040
Hose, Air Cleaner, No.1
[05.1982 - 08.1984] 2AU,3A#..AL2# |
17881-74040 |
— | ||
|
17881
|
17881
17881-74040
Hose, Air Cleaner, No.1
[02.1985 - 05.1985] 2AU,3A#..AL2# |
17881-74040 |
— | ||
|
17881A
|
17881A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[05.1982 - 10.1989] 2AU,3A#..AL2# |
96111-10460 |
from US $2.98 |
||
|
17882
|
17882
17881-15050
Hose, Air Cleaner, No.2
[05.1982 - 08.1984] 2AU,3A#..AL2# |
17881-15050 |
— | ||
|
17882
|
17882
17881-16070 Hose, Air Cleaner, No.2[08.1984 - 10.1989] 3ASU..AL21,25 |
17881-16070 |
US $10.63 |
||
|
17882A
|
17882A
90460-01005 Clamp(For Air Cleaner Hose, No.2)[05.1982 - 10.1989] 2AU,3A#..AL2# |
90460-01005 |
US $4.40 |
||
|
17883
|
17883
17881-15080 Hose, Air Cleaner, No.3[08.1984 - 10.1989] 3ASU..AL21,25 |
17881-15080 |
US $54.75 |
||
|
17883A
|
17883A
90460-01033 Clamp(For Air Cleaner Hose, No.3)[08.1984 - 10.1989] 3ASU..AL21,25 CONECTOR SIDE |
90460-01033 |
US $2.18 |
||
|
17883A
|
17883A
96111-10710 Clamp(For Air Cleaner Inlet Duct)[08.1984 - 10.1989] 3ASU..AL21,25 AIR CLEANER SIDE |
96111-10710 |
from US $2.56 |
||
|
9011906240
|
9011906240
90119-06240 New Genuine Part |
90119-06240 |
US $1.75 |
||
| replacement | |||||
|
9011906240
|
9011906240
90119-06965 New Genuine Part |
90119-06965 |
US $0.87 |
||
|
9017906027
|
9017906027
90179-06027
Nut, Wing(For Air Connector)
|
90179-06027 |
— | ||
|
9111270614
|
9111270614
91112-70614
New Genuine Part
|
91112-70614 |
— | ||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
