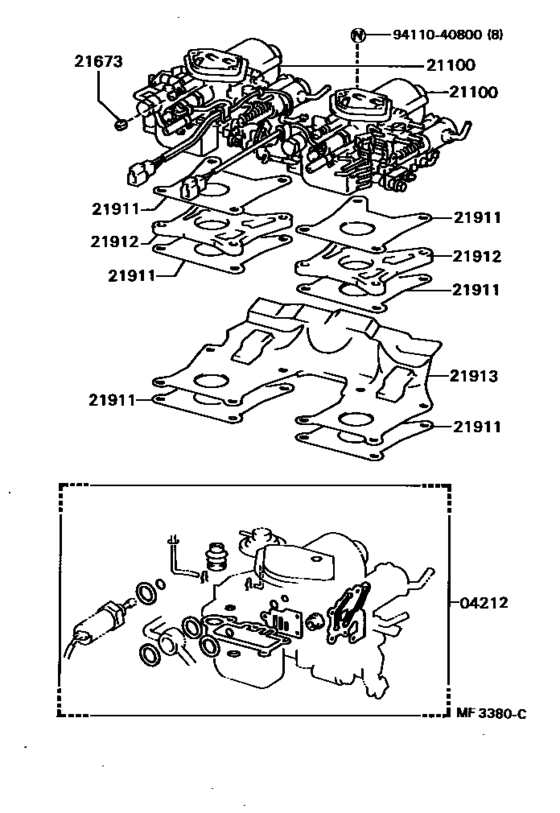

Carburetor Assembly ([08.1984 - ] (8408- )3ASU) Diagram Toyota CORSA/ TERCEL
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 05.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04212
|
04212
04212-15110 Gasket Kit, Carburetor[08.1984 - 02.1985] 2AU,3A#..AL2# |
04212-15110 |
US $36.69 |
||
| replacement | |||||
|
04212
|
04212
04212-15111
Gasket Kit, Carburetor
[08.1984 - 02.1985] 2AU,3A#..AL2# |
04212-15111 |
— | ||
|
04212
|
04212
04212-15111
Gasket Kit, Carburetor
[02.1985 - 10.1989] 3ASU..AL21,25 |
04212-15111 |
— | ||
|
21100
|
21100
21100-15390 Carburetor Assy[08.1984 - 09.1987] 3ASU..AL21,25 FR |
21100-15390 |
US $1,485.12 |
||
| replacement | |||||
|
21100
|
21100
21100-15391 Carburetor Assy[08.1984 - 09.1987] 3ASU..AL21,25 FR |
21100-15391 |
US $1,470.56 |
||
|
21100
|
21100
21100-15400 Carburetor Assy[08.1984 - 09.1987] 3ASU..AL21,25 RR |
21100-15400 |
US $1,485.12 |
||
| replacement | |||||
|
21100
|
21100
21100-15401 Carburetor Assy[08.1984 - 09.1987] 3ASU..AL21,25 RR |
21100-15401 |
US $1,470.56 |
||
|
21673
|
21673
21673-13280
Cap, Idle Limit
[08.1984 - 10.1989] 2AU,3A#..AL2# |
21673-13280 |
— | ||
|
21911
|
21911
21911-15050
Gasket, Carburetor
[08.1984 - 10.1989] 3ASU..AL21,25 |
21911-15050 |
— | ||
|
21912
|
21912
21901-15080
Insulator, Carburetor Heat
[08.1984 - 10.1989] 3ASU..AL21,25 |
21901-15080 |
— | ||
|
21913
|
21913
21913-15060
Insulator, Carburetor Heat, No.2
[08.1984 - 10.1989] 3ASU..AL21,25 |
21913-15060 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
