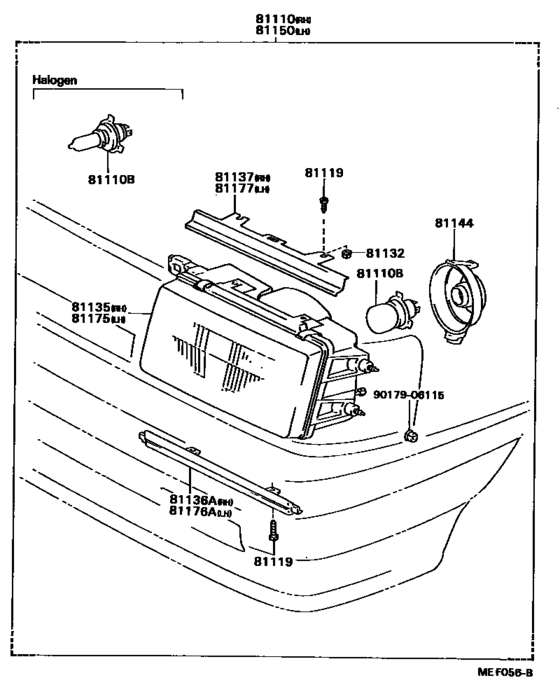

Headlamp ([08.1984 - 05.1986] (8408-8605)CRS) Diagram Toyota CORSA/ TERCEL
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 05.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-16152 Headlamp Assy, Rh[05.1986 - 10.1989] AL20,21; AL25..GX,VL |
81110-16152 |
US $362.54 |
||
|
81110
|
81110
81110-16162 Headlamp Assy, Rh[05.1986 - 10.1989] AL2# HALOGEN |
81110-16162 |
US $384.38 |
||
|
81110
|
81110
81110-80208 Headlamp Assy, Rh[05.1982 - 08.1984] AL2#..CRS HALOGEN |
81110-80208 |
US $465.92 |
||
|
81110
|
81110
81110-80425 Headlamp Assy, Rh[08.1984 - 05.1986] AL2#..CRS HALOGEN |
81110-80425 |
US $433.89 |
||
| replacement | |||||
|
81110
|
81110
81110-16141 Headlamp Assy, Rh[08.1984 - 05.1986] AL2#..CRS HALOGEN |
81110-16141 |
US $406.22 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[05.1982 - 10.1989] AL2# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 60/55W,HALOGEN |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [05.1982 - 10.1989] AL2# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 60/55W,HALOGEN |
90981-13058 |
from US $30.40 |
||
|
81110B
|
81110B
90981-13022 Bulb(For Headlamp, No.1)[05.1986 - 10.1989] AL20,21 １２Ｖ ６５／６０Ｗ，ホワイト,12V 65/60W; AL25..GX,VL １２Ｖ ６５／６０Ｗ，ホワイト,12V 65/60W |
90981-13022 |
US $21.84 |
||
|
81119
|
81119
81119-14880 Screw, Headlamp[05.1986 - 10.1989] AL2# |
81119-14880 |
US $2.77 |
||
|
81119
|
81119
81119-16140 Screw, Headlamp[05.1982 - 05.1986] AL2#..CRS |
81119-16140 |
US $2.18 |
||
|
81132
|
81132
81137-22530
Nut, Headlamp Self Locking
[08.1984 - 05.1986] AL2#..CRS |
81137-22530 |
— | ||
| replacement | |||||
|
81132
|
81132
90075-10004 Nut, Headlamp Self Locking[08.1984 - 05.1986] AL2#..CRS |
90075-10004 |
US $2.08 |
||
|
81135
|
81135
81105-16151 Unit Assy, Headlamp, Rh[05.1986 - 10.1989] AL20,21; AL25..GX,VL |
81105-16151 |
US $310.13 |
||
|
81135
|
81135
81105-16161 Unit Assy, Headlamp, Rh[05.1986 - 10.1989] AL2# HALOGEN |
81105-16161 |
US $310.13 |
||
|
81135
|
81135
81135-16141 Unit Assy, Headlamp, Rh[08.1984 - 05.1986] AL2#..CRS HALOGEN |
81135-16141 |
US $304.30 |
||
|
81136A
|
81136A
81116-16152 Rim, Headlamp, Rh[05.1986 - 10.1989] AL2# |
81116-16152 |
US $22.13 |
||
|
81136A
|
81136A
81137-16140 Rim, Headlamp, Rh[05.1982 - 08.1984] AL2#..CRS |
81137-16140 |
US $31.74 |
||
|
81136A
|
81136A
81137-16141 Rim, Headlamp, Rh[08.1984 - 05.1986] AL2#..CRS |
81137-16141 |
US $31.74 |
||
|
81137
|
81137
81136-16140
Protector, Headlamp, No.2 Rh
[05.1982 - 08.1984] AL2#..CRS |
81136-16140 |
— | ||
|
81137
|
81137
81136-16141 Protector, Headlamp, No.2 Rh[08.1984 - 05.1986] AL2#..CRS |
81136-16141 |
US $46.16 |
||
|
81144
|
81144
81139-14880 Cover, Sealed Beam Unit[05.1986 - 10.1989] AL2# |
81139-14880 |
US $19.36 |
||
|
81144
|
81144
81139-20730 Cover, Headlamp, No.1[08.1984 - 05.1986] AL2#..CRS |
81139-20730 |
US $18.54 |
||
|
81144
|
81144
81139-30481 Cover, Headlamp, No.1[05.1982 - 08.1984] AL2#..CRS |
81139-30481 |
US $16.89 |
||
|
81150
|
81150
81150-16152 Headlamp Assy, Lh[05.1986 - 10.1989] AL20,21; AL25..GX,VL |
81150-16152 |
US $362.54 |
||
|
81150
|
81150
81150-16162 Headlamp Assy, Lh[05.1986 - 10.1989] AL2# HALOGEN |
81150-16162 |
US $384.38 |
||
|
81150
|
81150
81150-80205 Headlamp Assy, Lh[05.1982 - 08.1984] AL2#..CRS HALOGEN |
81150-80205 |
US $465.92 |
||
|
81150
|
81150
81150-80417 Headlamp Assy, Lh[08.1984 - 05.1986] AL2#..CRS HALOGEN |
81150-80417 |
US $433.89 |
||
| replacement | |||||
|
81150
|
81150
81150-16141 Headlamp Assy, Lh[08.1984 - 05.1986] AL2#..CRS HALOGEN |
81150-16141 |
US $406.22 |
||
|
81175
|
81175
81106-16151 Unit Assy, Headlamp, Lh[05.1986 - 10.1989] AL20,21; AL25..GX,VL |
81106-16151 |
US $310.13 |
||
|
81175
|
81175
81106-16161 Unit Assy, Headlamp, Lh[05.1986 - 10.1989] AL2# HALOGEN |
81106-16161 |
US $310.13 |
||
|
81175
|
81175
81175-16141 Unit Assy, Headlamp, Lh[08.1984 - 05.1986] AL2#..CRS HALOGEN |
81175-16141 |
US $304.30 |
||
|
81176A
|
81176A
81156-16152 Rim, Headlamp, Lh[05.1986 - 10.1989] AL2# |
81156-16152 |
US $22.13 |
||
|
81176A
|
81176A
81177-16140 Rim, Headlamp, Lh[05.1982 - 08.1984] AL2#..CRS |
81177-16140 |
US $31.74 |
||
|
81176A
|
81176A
81177-16141 Rim, Headlamp, Lh[08.1984 - 05.1986] AL2#..CRS |
81177-16141 |
US $31.74 |
||
|
81177
|
81177
81176-16140
Protector, Headlamp, No.2 Lh
[05.1982 - 08.1984] AL2#..CRS |
81176-16140 |
— | ||
|
81177
|
81177
81176-16141 Protector, Headlamp, No.2 Lh[08.1984 - 05.1986] AL2#..CRS |
81176-16141 |
US $46.16 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
