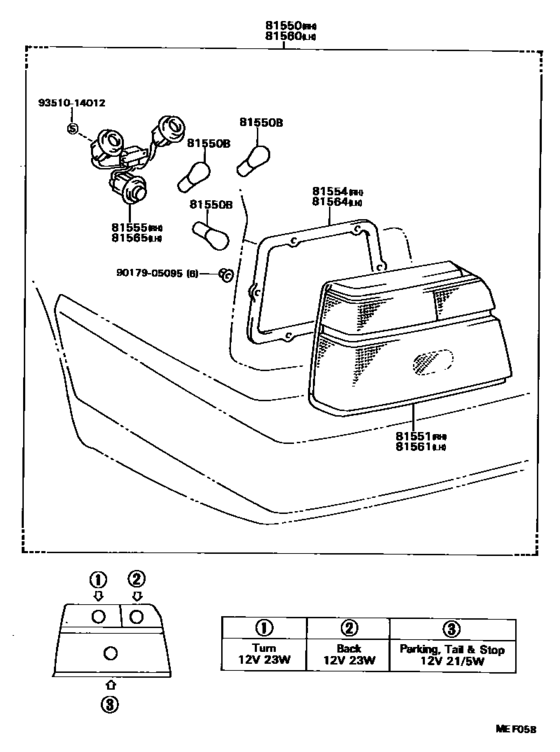

Rear Combination Lamp ([08.1984 - 05.1986] (8408-8605)CRS..3DS,5DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1984 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- SX
- body
- SED
- ENGINE
- 3ASU
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 05.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-16390 Lamp Assy, Rear Combination, Rh[05.1986 - 10.1989] AL2#..CRS |
81550-16390 |
US $308.67 |
||
| replacement | |||||
|
81550
|
81550
81550-16320 Lamp Assy, Rear Combination, Rh[05.1986 - 10.1989] AL2#..CRS |
81550-16320 |
US $307.22 |
||
|
81550
|
81550
81550-80131 Lamp Assy, Rear Combination, Rh[05.1982 - 03.1983] AL2#..CRS..5DS |
81550-80131 |
US $272.27 |
||
|
81550
|
81550
81550-80179 Lamp Assy, Rear Combination, Rh[03.1983 - 08.1984] AL2#..CRS..5DS |
81550-80179 |
US $297.02 |
||
|
81550
|
81550
81550-80237 Lamp Assy, Rear Combination, Rh[08.1984 - 05.1986] AL20,21..CRS..(3DS,5DS) |
81550-80237 |
US $298.48 |
||
| replacement | |||||
|
81550
|
81550
81550-16222 Lamp Assy, Rear Combination, Rh[08.1984 - 05.1986] AL20,21..CRS..(3DS,5DS) |
81550-16222 |
US $288.29 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[05.1982 - 10.1989] AL2# １２Ｖ ２３Ｗ,12V 23W |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[05.1982 - 10.1989] AL2# １２Ｖ ２３Ｗ,12V 23W |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1982 - 10.1989] AL2# １２Ｖ ２１／５Ｗ,12V 21/5W |
99132-21210 |
from US $2.81 |
||
|
81551
|
81551
81551-16221 Lens, Rear Combination Lamp, Rh[03.1983 - 08.1984] AL2#..CRS..(3DS,5DS) |
81551-16221 |
US $254.80 |
||
|
81551
|
81551
81551-16222 Lens, Rear Combination Lamp, Rh[08.1984 - 05.1986] AL20,21..CRS..(3DS,5DS) |
81551-16222 |
US $253.34 |
||
|
81551
|
81551
81551-16390 Lens, Rear Combination Lamp, Rh[05.1986 - 10.1989] AL2#..DX,EX,GX |
81551-16390 |
US $190.74 |
||
|
81554
|
81554
81554-16210
Gasket, Rear Combination Lamp Body, Rh
[05.1982 - 08.1984] AL2#..3DS,5DS |
81554-16210 |
— | ||
|
81554
|
81554
81554-16220 Gasket, Rear Combination Lamp Body, Rh[08.1984 - 05.1986] AL20,21..3DS,5DS |
81554-16220 |
US $15.58 |
||
|
81555
|
81555
81555-16221
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[03.1983 - 08.1984] AL2#..CRS..(3DS,5DS) |
81555-16221 |
— | ||
|
81555
|
81555
81555-16222 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.1984 - 05.1986] AL20,21..CRS..(3DS,5DS) |
81555-16222 |
US $64.06 |
||
|
81560
|
81560
81560-16420 Lamp Assy, Rear Combination, Lh[05.1986 - 10.1989] AL2#..CRS |
81560-16420 |
US $308.67 |
||
| replacement | |||||
|
81560
|
81560
81560-16320 Lamp Assy, Rear Combination, Lh[05.1986 - 10.1989] AL2#..CRS |
81560-16320 |
US $307.22 |
||
|
81560
|
81560
81560-80135 Lamp Assy, Rear Combination, Lh[05.1982 - 03.1983] AL2#..CRS..5DS |
81560-80135 |
US $272.27 |
||
|
81560
|
81560
81560-80184 Lamp Assy, Rear Combination, Lh[03.1983 - 08.1984] AL2#..CRS..5DS |
81560-80184 |
US $297.02 |
||
|
81560
|
81560
81560-80243 Lamp Assy, Rear Combination, Lh[08.1984 - 05.1986] AL20,21..CRS..(3DS,5DS) |
81560-80243 |
US $298.48 |
||
| replacement | |||||
|
81560
|
81560
81560-16222 Lamp Assy, Rear Combination, Lh[08.1984 - 05.1986] AL20,21..CRS..(3DS,5DS) |
81560-16222 |
US $288.29 |
||
|
81561
|
81561
81561-16221 Lens, Rear Combination Lamp, Lh[03.1983 - 08.1984] AL2#..CRS..(3DS,5DS) |
81561-16221 |
US $254.80 |
||
|
81561
|
81561
81561-16222 Lens, Rear Combination Lamp, Lh[08.1984 - 05.1986] AL20,21..CRS..(3DS,5DS) |
81561-16222 |
US $253.34 |
||
|
81564
|
81564
81554-16210
Gasket, Rear Combination Lamp Body, Rh
[05.1982 - 08.1984] AL2#..3DS,5DS |
81554-16210 |
— | ||
|
81564
|
81564
81554-16220 Gasket, Rear Combination Lamp Body, Rh[08.1984 - 05.1986] AL20,21..3DS,5DS |
81554-16220 |
US $15.58 |
||
|
81565
|
81565
81555-16222 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[08.1984 - 05.1986] AL20,21..CRS..(3DS,5DS) |
81555-16222 |
US $64.06 |
||
|
81565
|
81565
81565-16221
Socket & Wire Sub-Assy, Rear Combination Lamp, Lh
[03.1983 - 08.1984] AL2#..CRS..(3DS,5DS) |
81565-16221 |
— | ||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9351014012
|
9351014012
93510-14012 New Genuine Part |
93510-14012 |
US $1.49 |
||
| replacement | |||||
|
9351014012
|
9351014012
93540-A4014 SCREW TAPPING |
93540-A4014 |
US $1.60 |
||
