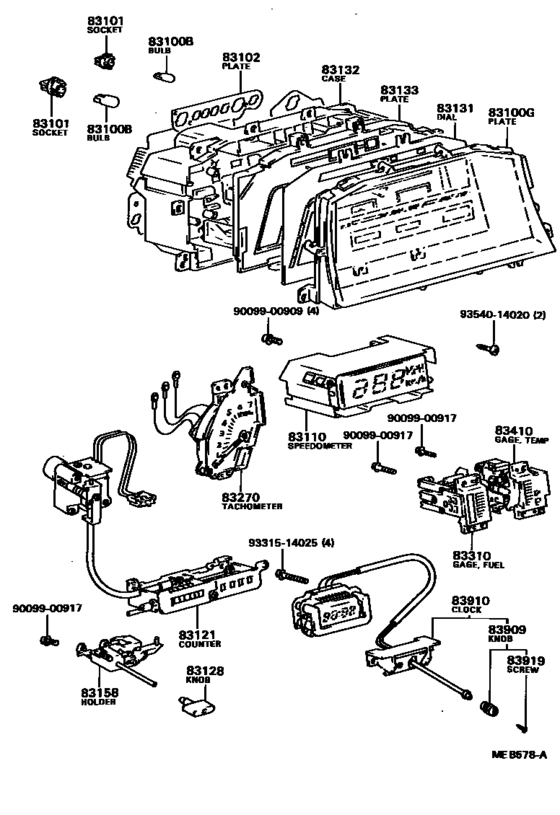

Meter ([05.1982 - ] (8205- )AL21..VE) Diagram Toyota CORSA/ TERCEL
- Year
- 1982 - 1986
- Sales region
- Japan
- Frame
- AL21
- grade
- VE
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- From
- 05.1982
- To
- 05.1986
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Tersel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24010 Bulb, Combination Meter, No.1[05.1982 - 10.1989] AL21..VE １２Ｖ １．４Ｗ，グリーン キャップ,12V 1.4W,W/GREEN CAP |
83109-24010 |
US $4.02 |
||
|
83100B
|
83100B
83109-24020 Bulb, Combination Meter, No.1[05.1982 - 10.1989] AL21..VE １２Ｖ ３．４Ｗ キャップ付き,12V 3.4W,W/GREEN CAP |
83109-24020 |
from US $6.12 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1984 - 10.1989] AL25..VE,VL;AL20,21..TER １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.24 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[05.1982 - 10.1989] AL2# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[05.1982 - 10.1989] AL2# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83100G
|
83100G
83133-16550
Glass, Combination Meter
[05.1982 - 10.1989] AL21..VE |
83133-16550 |
— | ||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1984 - 10.1989] AL2# 12V 3.4W,DENSO |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[05.1982 - 10.1989] AL2# 12V 1.4W |
83101-14040 |
US $3.02 |
||
|
83102
|
83102
83247-1G010
Plate Sub-Assy, Combination Meter Circuit, No.1
[05.1982 - 08.1984] AL21..VE |
83247-1G010 |
— | ||
|
83102
|
83102
83247-1G330
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1984 - 10.1989] AL21..VE |
83247-1G330 |
— | ||
|
83110
|
83110
83110-16540
Speedometer Assy
[05.1982 - 08.1984] AL21..VE |
83110-16540 |
— | ||
|
83110
|
83110
83110-16620 Speedometer Assy[08.1984 - 10.1989] AL21..VE |
83110-16620 |
US $1,285.65 |
||
|
83121
|
83121
83121-16110
Counter, Total
[05.1982 - 08.1984] AL21..VE |
83121-16110 |
— | ||
|
83121
|
83121
83121-16130
Counter, Total
[08.1984 - 10.1989] AL21..VE |
83121-16130 |
— | ||
|
83128
|
83128
83128-16090
Knob, Trip Counter
[05.1982 - 08.1984] AL21..VE,VS |
83128-16090 |
— | ||
|
83131
|
83131
83131-16110
Dial, Meter, No.1
[05.1982 - 01.1983] AL21..VE |
83131-16110 |
— | ||
|
83131
|
83131
83131-16130
Dial, Meter, No.1
[01.1983 - 08.1984] AL21..VE |
83131-16130 |
— | ||
|
83131
|
83131
83131-16150
Dial, Meter, No.1
[08.1984 - 10.1989] AL21..VE |
83131-16150 |
— | ||
|
83132
|
83132
83132-16630
Case, Combination Meter
[05.1982 - 08.1984] AL21..VE |
83132-16630 |
— | ||
|
83132
|
83132
83132-16810
Case, Combination Meter
[08.1984 - 10.1989] AL21..VE |
83132-16810 |
— | ||
|
83133
|
83133
83133-16570
Plate, Combination Meter, No.1
[05.1982 - 08.1984] AL21..VE |
83133-16570 |
— | ||
|
83133
|
83133
83133-16870
Plate, Combination Meter, No.1
[08.1984 - 10.1989] AL21..VE |
83133-16870 |
— | ||
|
83158
|
83158
83158-16110
Holder, Trip Gear
[05.1982 - 10.1989] AL21..VE |
83158-16110 |
— | ||
|
83270
|
83270
83242-16230
Tachometer Assy, Engine
[05.1982 - 08.1984] AL21..VE |
83242-16230 |
— | ||
|
83270
|
83270
83242-16510 Tachometer Assy, Engine[08.1984 - 10.1989] AL21..VE |
83242-16510 |
US $487.76 |
||
|
83310
|
83310
83243-16450 Gage Assy, Fuel Receiver[05.1982 - 08.1984] AL21..VE |
83243-16450 |
US $58.39 |
||
|
83310
|
83310
83243-16550 Gage Assy, Fuel Receiver[08.1984 - 10.1989] AL21..VE |
83243-16550 |
US $74.26 |
||
|
83410
|
83410
83244-16430 Gage Assy, Water Temperature Receiver[05.1982 - 08.1984] AL21..VE |
83244-16430 |
US $58.39 |
||
|
83410
|
83410
83244-16570 Gage Assy, Water Temperature Receiver[08.1984 - 10.1989] AL21..VE |
83244-16570 |
US $58.68 |
||
|
83909
|
83909
83909-16050 Knob, Clock[05.1982 - 10.1989] AL21,25..EX,SX,VE,VS DIGITAL |
83909-16050 |
US $4.37 |
||
|
83910
|
83910
83910-16080 Clock Assy[05.1982 - 10.1989] AL21..VE DIGITAL |
83910-16080 |
US $410.59 |
||
|
83919
|
83919
83919-12230 Screw, Clock[05.1982 - 10.1989] AL21,25..EX,SX,VE,VS DIGITAL |
83919-12230 |
US $1.92 |
||
|
9009900909
|
9009900909
90099-00909
New Genuine Part
|
90099-00909 |
— | ||
|
9009900917
|
9009900917
90099-00917
New Genuine Part
|
90099-00917 |
— | ||
|
9331514025
|
9331514025
93315-14025 New Genuine Part |
93315-14025 |
US $1.16 |
||
|
9354014020
|
9354014020
93540-14020 Screw |
93540-14020 |
US $1.92 |
||
