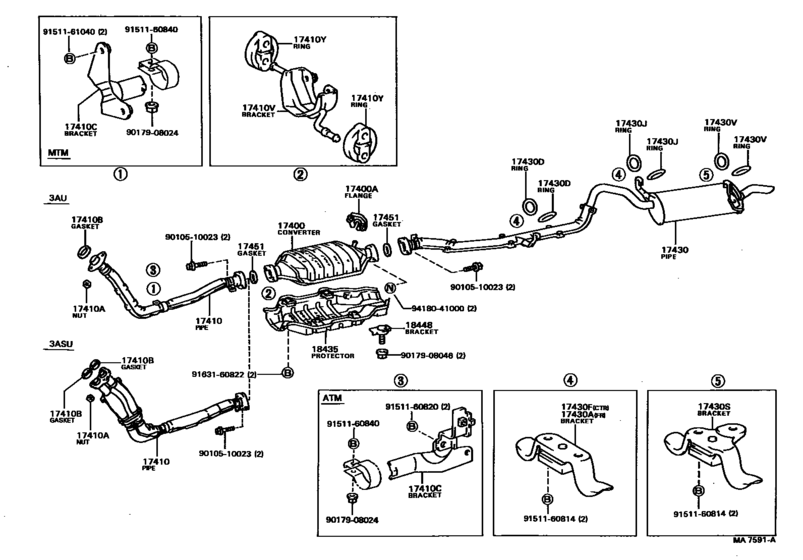

Exhaust Pipe ([08.1984 - ] (8408- )3A#..AL25) Diagram Toyota CORSA/ TERCEL
- Year
- 1984 - 1989
- Sales region
- Japan
- Frame
- AL25
- grade
- GX
- body
- SED
- ENGINE
- 3AU
- TRANSMISSION
- MTM
- From
- 08.1984
- To
- 10.1989
- Gear Shift Type
- 6F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
17400-13050 Converter Assy, W/catalyst[05.1982 - 08.1984] 2AU,3A#..AL2# |
17400-13050 |
US $787.70 |
||
|
17400
|
17400
18450-15070 Converter Assy, W/catalyst[08.1984 - 10.1989] 3A#..AL25 |
18450-15070 |
US $1,196.83 |
||
| replacement | |||||
|
17400
|
17400
18450-73170 Converter Assy, W/catalyst[08.1984 - 10.1989] 3A#..AL25 |
18450-73170 |
US $1,196.83 |
||
|
17400A
|
17400A
18491-38040 Flange, Thermosenser Inlet[05.1982 - 08.1984] 2AU,3A#..AL2# |
18491-38040 |
US $7.43 |
||
|
17400A
|
17400A
18491-63010 Flange, Thermosenser Inlet[08.1984 - 10.1989] 3A#..AL25 |
18491-63010 |
US $11.68 |
||
|
17410
|
17410
17410-15080 Pipe Assy, Exhaust, Front[05.1982 - 08.1984] 2AU,3A#..AL2# |
17410-15080 |
US $291.20 |
||
|
17410
|
17410
17410-15110 Pipe Assy, Exhaust, Front[08.1984 - 10.1989] 3AU..AL25 |
17410-15110 |
US $285.38 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[04.1984 - 10.1989] 2AU,3A#..AL2# |
90179-10070 |
from US $1.40 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[04.1984 - 10.1989] 2AU,3A#..AL2# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06004
Gasket(For Manifold Extension)
[05.1982 - 08.1984] 2AU,3A#..AL2# |
90917-06004 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06039 Gasket, Exhaust Pipe[05.1982 - 08.1984] 2AU,3A#..AL2# |
90917-06039 |
from US $2.36 |
||
|
17410C
|
17410C
17571-15070 Bracket, Exhaust Pipe Front (For Front)[05.1982 - 10.1989] 2AU,3A#..AL2#..MTM |
17571-15070 |
US $41.79 |
||
|
17410V
|
17410V
17503-15040 Bracket, Exhaust Pipe Front (For Rear)[05.1982 - 08.1984] 2AU,3A#..AL2# CTR |
17503-15040 |
US $36.25 |
||
|
17410V
|
17410V
17503-15060
Bracket, Exhaust Pipe Front (For Rear)
[08.1984 - 10.1989] 3A#..AL25..6F |
17503-15060 |
— | ||
|
17410V
|
17410V
17505-15030 Bracket, Exhaust Pipe Front (For Rear)[05.1982 - 08.1984] 2AU,3A#..AL2# LH SIDE |
17505-15030 |
US $9.17 |
||
|
17410Y
|
17410Y
17565-15020 Bolt Or Ring, Exhaust Pipe Front (For Rear)[05.1982 - 10.1989] 2AU,3A#..AL2# |
17565-15020 |
US $10.48 |
||
| replacement | |||||
|
17410Y
|
17410Y
17565-11160 Support, Exhaust Pipe, No.1[05.1982 - 10.1989] 2AU,3A#..AL2# |
17565-11160 |
from US $9.85 |
||
|
17430
|
17430
17430-15110 Pipe Assy, Exhaust, Tail[05.1982 - 08.1984] 2AU,3A#..AL2#..4DS |
17430-15110 |
US $326.14 |
||
|
17430
|
17430
17430-15310 Pipe Assy, Exhaust, Tail[08.1984 - 10.1989] 3AU..AL25 |
17430-15310 |
US $543.09 |
||
|
17430A
|
17430A
17506-13020
Bracket, Exhaust Tail Pipe(For Front)
[08.1984 - 10.1989] 3A#..AL25 |
17506-13020 |
— | ||
|
17430A
|
17430A
17508-15010 Bracket, Exhaust Tail Pipe(For Front)[05.1982 - 08.1984] 2AU,3A#..AL2# |
17508-15010 |
US $15.29 |
||
|
17430D
|
17430D
17565-15020 Bolt Or Ring, Exhaust Pipe Front (For Rear)[05.1982 - 08.1984] 2AU,3A#..AL2# |
17565-15020 |
US $10.48 |
||
| replacement | |||||
|
17430D
|
17430D
17565-11160 Support, Exhaust Pipe, No.1[05.1982 - 08.1984] 2AU,3A#..AL2# |
17565-11160 |
from US $9.85 |
||
|
17430D
|
17430D
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[08.1984 - 10.1989] 3A#..AL25 |
90301-36001 |
from US $5.13 |
||
|
17430F
|
17430F
17506-13020
Bracket, Exhaust Tail Pipe(For Front)
[08.1984 - 10.1989] 3A#..AL25 |
17506-13020 |
— | ||
|
17430J
|
17430J
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[08.1984 - 10.1989] 3A#..AL25 |
90301-36001 |
from US $5.13 |
||
|
17430S
|
17430S
17508-13010
Bracket, Exhaust Tail Pipe(For Center)
[08.1984 - 10.1989] 3A#..AL25 |
17508-13010 |
— | ||
|
17430S
|
17430S
17509-15010 Bracket, Exhaust Tail Pipe (For Rear)[05.1982 - 08.1984] 2AU,3A#..AL2#..4DS |
17509-15010 |
US $49.50 |
||
|
17430V
|
17430V
90301-33001
Bolt Or Ring, Exhaust Pipe Center
[05.1982 - 08.1984] 2AU,3A#..AL2# |
90301-33001 |
— | ||
|
17430V
|
17430V
90301-36001 Bolt Or Ring, Exhaust Pipe Front (For Rear)[08.1984 - 10.1989] 3A#..AL25 |
90301-36001 |
from US $5.13 |
||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[05.1982 - 08.1984] 2AU,3A#..AL2# RR |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[05.1982 - 08.1984] 2AU,3A#..AL2# RR |
90917-06039 |
from US $2.36 |
||
|
17451
|
17451
90917-06012
Gasket, Exhaust Pipe
[08.1984 - 10.1989] 2AU,3A#..AL2# RR |
90917-06012 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06045 Gasket, Exhaust Pipe[08.1984 - 10.1989] 2AU,3A#..AL2# RR |
90917-06045 |
from US $1.70 |
||
|
17451
|
17451
90917-06018 Gasket, Exhaust Pipe[05.1982 - 08.1984] 2AU,3A#..AL2# FR |
90917-06018 |
US $6.26 |
||
| replacement | |||||
|
17451
|
17451
90917-06046 Gasket, Exhaust Pipe[05.1982 - 08.1984] 2AU,3A#..AL2# FR |
90917-06046 |
from US $3.96 |
||
|
17451
|
17451
90917-06020
Gasket, Exhaust Pipe, Center
[08.1984 - 10.1989] 2AU,3A#..AL2# FR |
90917-06020 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06044 Gasket, Exhaust Pipe, Center[08.1984 - 10.1989] 2AU,3A#..AL2# FR |
90917-06044 |
from US $6.55 |
||
|
18435
|
18435
18407-15020 Protector, Catalytic Converter[08.1984 - 10.1989] 2AU,3A#..AL2# |
18407-15020 |
US $67.56 |
||
| replacement | |||||
|
18435
|
18435
18407-15021 Protector, Catalytic Converter[08.1984 - 10.1989] 2AU,3A#..AL2# |
18407-15021 |
US $68 |
||
|
18435
|
18435
18407-25011 Protector, Catalytic Converter[05.1982 - 08.1984] 2AU,3A#..AL2# |
18407-25011 |
US $71.78 |
||
|
18448
|
18448
18439-15030 Bracket, Converter Protector, Rh[08.1984 - 10.1989] 2AU,3A#..AL2# |
18439-15030 |
US $6.41 |
||
|
18448
|
18448
18448-26020 Bracket, Converter Protector, Center[05.1982 - 08.1984] 2AU,3A#..AL2# |
18448-26020 |
US $9.92 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9017908024
|
9017908024
90179-08024 NUT |
90179-08024 |
US $2.08 |
||
|
9017908046
|
9017908046
90179-08046 New Genuine Part |
90179-08046 |
US $3.20 |
||
|
9151160814
|
9151160814
91511-60814
New Genuine Part
|
91511-60814 |
— | ||
| replacement | |||||
|
9151160814
|
9151160814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
|
9151160840
|
9151160840
91511-60840
Bolt(For Alternator)
|
91511-60840 |
— | ||
| replacement | |||||
|
9151160840
|
9151160840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9151161040
|
9151161040
91511-61040 Bolt, Flange (For Idler) |
91511-61040 |
US $2.72 |
||
|
9163160822
|
9163160822
91631-60822 BOLT |
91631-60822 |
US $1.12 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
