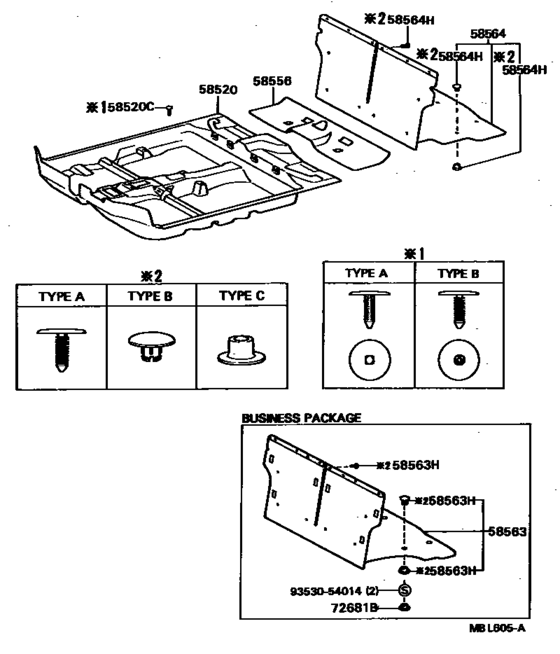

Mat & Carpet ([05.1986 - ] (8605- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- EL30
- grade
- TX
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- ATM
- From
- 05.1986
- To
- 05.1988
- Gear Shift Type
- 3FC
- No.of Doors
- 3DS
- Vehicle Model
- Corsa
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58520
|
58520
58510-16370-01 Carpet Assy, Front Floor[05.1986 - 09.1986] EL30..3DS BLACK,BLACK,TRIM2# |
58510-16370-01 |
US $675.58 |
||
| replacement | |||||
|
58520
|
58520
58510-1G130-01 Carpet Assy, Front Floor, Front[05.1986 - 09.1986] EL30..3DS BLACK,BLACK,TRIM2# |
58510-1G130-01 |
US $576.58 |
||
|
58520
|
58520
58510-16370-04 Carpet Assy, Front Floor[05.1986 - 09.1986] EL30..3DS BLUE,BLUE,TRIM8# |
58510-16370-04 |
US $675.58 |
||
| replacement | |||||
|
58520
|
58520
58510-1G130-04 Carpet Assy, Front Floor, Front[05.1986 - 09.1986] EL30..3DS BLUE,BLUE,TRIM8# |
58510-1G130-04 |
US $576.58 |
||
|
58520
|
58520
58510-16370-05 Carpet Assy, Front Floor[05.1986 - 09.1986] EL30..3DS BEIGE,DARK BEIGE,TRIM4# |
58510-16370-05 |
US $675.58 |
||
| replacement | |||||
|
58520
|
58520
58510-1G130-E0
Carpet Assy, Front Floor
[05.1986 - 09.1986] EL30..3DS BEIGE,DARK BEIGE,TRIM4# |
58510-1G130-E0 |
— | ||
|
58520
|
58520
58510-16500-01
Carpet Assy, Front Floor
[05.1986 - 09.1986] EL30..3DS COLD SPEC,BLACK,BLACK,TRIM2# |
58510-16500-01 |
— | ||
|
58520
|
58520
58510-16500-04
Carpet Assy, Front Floor
[05.1986 - 09.1986] EL30..3DS COLD SPEC,BLUE,BLUE,TRIM8# |
58510-16500-04 |
— | ||
|
58520
|
58520
58510-16500-05
Carpet Assy, Front Floor
[05.1986 - 09.1986] EL30..3DS COLD SPEC,BEIGE,DARK BEIGE,TRIM4# |
58510-16500-05 |
— | ||
|
58520
|
58520
58510-16770-01 Carpet Assy, Front Floor, Front[09.1986 - 05.1988] EL30..3DS BLACK,BLACK,TRIM2# |
58510-16770-01 |
US $677.04 |
||
| replacement | |||||
|
58520
|
58520
58510-1G130-01 Carpet Assy, Front Floor, Front[09.1986 - 05.1988] EL30..3DS BLACK,BLACK,TRIM2# |
58510-1G130-01 |
US $576.58 |
||
|
58520
|
58520
58510-16770-04 Carpet Assy, Front Floor, Front[09.1986 - 05.1988] EL30..3DS BLUE,BLUE,TRIM8# |
58510-16770-04 |
US $677.04 |
||
| replacement | |||||
|
58520
|
58520
58510-1G130-04 Carpet Assy, Front Floor, Front[09.1986 - 05.1988] EL30..3DS BLUE,BLUE,TRIM8# |
58510-1G130-04 |
US $576.58 |
||
|
58520
|
58520
58510-16770-05 Carpet Assy, Front Floor[09.1986 - 05.1988] EL30..3DS BEIGE,DARK BEIGE,TRIM4# |
58510-16770-05 |
US $677.04 |
||
| replacement | |||||
|
58520
|
58520
58510-1G130-E0
Carpet Assy, Front Floor
[09.1986 - 05.1988] EL30..3DS BEIGE,DARK BEIGE,TRIM4# |
58510-1G130-E0 |
— | ||
|
58520
|
58520
58510-16790-01 Carpet Assy, Front Floor, Front[09.1986 - 05.1988] EL30..3DS COLD SPEC,BLACK,BLACK,TRIM2# |
58510-16790-01 |
US $677.04 |
||
|
58520
|
58520
58510-16790-04 Carpet Assy, Front Floor, Front[09.1986 - 05.1988] EL30..3DS COLD SPEC,BLUE,BLUE,TRIM8# |
58510-16790-04 |
US $677.04 |
||
|
58520
|
58520
58510-16790-05
Carpet Assy, Front Floor
[09.1986 - 05.1988] EL30..3DS COLD SPEC,BEIGE,DARK BEIGE,TRIM4# |
58510-16790-05 |
— | ||
|
58520
|
58520
58510-1G030-01 Carpet Assy, Front Floor, Front[05.1987 - 05.1988] EL30..3DS..(TX,VC) BUSINESS PACK,BLACK,BLACK,TRIM2# |
58510-1G030-01 |
US $575.12 |
||
| replacement | |||||
|
58520
|
58520
58510-1G150-01 Carpet Assy, Front Floor, Front[05.1987 - 05.1988] EL30..3DS..(TX,VC) BUSINESS PACK,BLACK,BLACK,TRIM2# |
58510-1G150-01 |
US $576.58 |
||
|
58520
|
58520
58510-1G030-04 Carpet Assy, Front Floor, Front[05.1987 - 05.1988] EL30..3DS..(TX,VC) BUSINESS PACK,BLUE,BLUE,TRIM8# |
58510-1G030-04 |
US $575.12 |
||
| replacement | |||||
|
58520
|
58520
58510-1G150-04 Carpet Assy, Front Floor, Front[05.1987 - 05.1988] EL30..3DS..(TX,VC) BUSINESS PACK,BLUE,BLUE,TRIM8# |
58510-1G150-04 |
US $576.58 |
||
|
58520
|
58520
58510-1G040-01 Carpet Assy, Front Floor, Front[05.1987 - 05.1988] EL30..3DS..(TX,VC) BUSINESS PACK,COLD SPEC,BLACK,BLACK,TRIM2# |
58510-1G040-01 |
US $575.12 |
||
| replacement | |||||
|
58520
|
58520
58510-1G160-01 Carpet Assy, Front Floor, Front[05.1987 - 05.1988] EL30..3DS..(TX,VC) BUSINESS PACK,COLD SPEC,BLACK,BLACK,TRIM2# |
58510-1G160-01 |
US $576.58 |
||
|
58520
|
58520
58510-1G040-04 Carpet Assy, Front Floor, Front[05.1987 - 05.1988] EL30..3DS..(TX,VC) BUSINESS PACK,COLD SPEC,BLUE,BLUE,TRIM8# |
58510-1G040-04 |
US $575.12 |
||
| replacement | |||||
|
58520
|
58520
58510-1G160-04 Carpet Assy, Front Floor, Front[05.1987 - 05.1988] EL30..3DS..(TX,VC) BUSINESS PACK,COLD SPEC,BLUE,BLUE,TRIM8# |
58510-1G160-04 |
US $576.58 |
||
|
58520C
|
58520C
90467-06037-01 Clip(For Front Floor Carpet)[05.1986 - 05.1988] EL3#,NL30 TYPE B,BLACK,BLACK,TRIM2# |
90467-06037-01 |
US $1.89 |
||
| replacement | |||||
|
58520C
|
58520C
90467-06037-P0
Clip, Rear Seat Back, Rh
[05.1986 - 05.1988] EL3#,NL30 TYPE B,BLACK,BLACK,TRIM2# |
90467-06037-P0 |
— | ||
|
58520C
|
58520C
90467-06037-14 Clip(For Front Floor Carpet)[05.1986 - 05.1988] EL3#,NL30 TYPE B,BLUE,BLUE,TRIM8# |
90467-06037-14 |
US $1.89 |
||
| replacement | |||||
|
58520C
|
58520C
90467-06037-P0
Clip, Rear Seat Back, Rh
[05.1986 - 05.1988] EL3#,NL30 TYPE B,BLUE,BLUE,TRIM8# |
90467-06037-P0 |
— | ||
|
58520C
|
58520C
90467-06037-25 Clip(For Front Floor Carpet)[05.1986 - 05.1988] EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX TYPE B,,DARK BEIGE |
90467-06037-25 |
US $1.89 |
||
| replacement | |||||
|
58520C
|
58520C
90467-06037-P0
Clip, Rear Seat Back, Rh
[05.1986 - 05.1988] EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX TYPE B,,DARK BEIGE |
90467-06037-P0 |
— | ||
|
58563
|
58563
58571-16290-04 Mat, Rear Floor[05.1987 - 05.1988] EL30..TX,VC BUSINESS PACKAGE,BLUE |
58571-16290-04 |
US $394.58 |
||
|
58563H
|
58563H
90467-06037-04 Clip(For Rear Floor Mat)[05.1987 - 05.1988] EL30..TX,VC TYPEA,BUSINESS PACKAGE,BLUE |
90467-06037-04 |
US $1.89 |
||
| replacement | |||||
|
58563H
|
58563H
90467-06037-P0
Clip, Rear Seat Back, Rh
[05.1987 - 05.1988] EL30..TX,VC TYPEA,BUSINESS PACKAGE,BLUE |
90467-06037-P0 |
— | ||
|
58563H
|
58563H
90467-10086-04 Clip(For Rear Floor Mat)[05.1987 - 05.1988] EL30..TX,VC TYPEB,BUSINESS PACKAGE,BLUE |
90467-10086-04 |
US $1.75 |
||
|
58563H
|
58563H
90467-13040-04 Clip(For Rear Floor Mat)[05.1987 - 05.1988] EL30..TX,VC TYPEC,BUSINESS PACKAGE,BLUE |
90467-13040-04 |
US $1.75 |
||
|
58564
|
58564
58571-16120-01 Carpet, Rear Floor[05.1986 - 05.1988] EL30,NL30..TX,VC BLACK,BLACK,TRIM2# |
58571-16120-01 |
US $490.67 |
||
|
58564
|
58564
58571-16120-04 Carpet, Rear Floor[05.1986 - 05.1988] EL30,NL30..TX,VC BLUE,BLUE,TRIM8# |
58571-16120-04 |
US $490.67 |
||
|
58564
|
58564
58571-16120-05 Carpet, Rear Floor[05.1986 - 05.1988] EL30,NL30..TX,VC BEIGE,DARK BEIGE,TRIM4# |
58571-16120-05 |
US $490.67 |
||
|
58564H
|
58564H
90467-06037-01 Clip(For Front Floor Carpet)[05.1986 - 05.1988] EL30,NL30..TX,VC TYPE A,BLACK,BLACK,TRIM2# |
90467-06037-01 |
US $1.89 |
||
| replacement | |||||
|
58564H
|
58564H
90467-06037-P0
Clip, Rear Seat Back, Rh
[05.1986 - 05.1988] EL30,NL30..TX,VC TYPE A,BLACK,BLACK,TRIM2# |
90467-06037-P0 |
— | ||
|
58564H
|
58564H
90467-06037-14 Clip(For Front Floor Carpet)[05.1986 - 05.1988] EL30,NL30..TX,VC TYPE A,BLUE,BLUE,TRIM8# |
90467-06037-14 |
US $1.89 |
||
| replacement | |||||
|
58564H
|
58564H
90467-06037-P0
Clip, Rear Seat Back, Rh
[05.1986 - 05.1988] EL30,NL30..TX,VC TYPE A,BLUE,BLUE,TRIM8# |
90467-06037-P0 |
— | ||
|
58564H
|
58564H
90467-06037-25 Clip(For Front Floor Carpet)[05.1986 - 05.1988] EL30,NL30..TX,VC TYPE A,BEIGE,DARK BEIGE,TRIM4# |
90467-06037-25 |
US $1.89 |
||
| replacement | |||||
|
58564H
|
58564H
90467-06037-P0
Clip, Rear Seat Back, Rh
[05.1986 - 05.1988] EL30,NL30..TX,VC TYPE A,BEIGE,DARK BEIGE,TRIM4# |
90467-06037-P0 |
— | ||
|
58564H
|
58564H
90467-11037-01 Clip(For Rear Floor Carpet)[05.1986 - 05.1988] EL3#,NL30 TYPE B,BLACK,BLACK,TRIM2# |
90467-11037-01 |
US $1.75 |
||
|
58564H
|
58564H
90467-11037-04 Clip(For Rear Floor Carpet)[05.1986 - 05.1988] EL3#,NL30 TYPE B,BLUE,BLUE,TRIM8# |
90467-11037-04 |
US $1.75 |
||
|
58564H
|
58564H
90467-11037-05 Clip(For Rear Floor Carpet)[05.1986 - 05.1988] EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX TYPE B,BEIGE,DARK BEIGE,TRIM4# |
90467-11037-05 |
US $1.75 |
||
| replacement | |||||
|
58564H
|
58564H
90467-11037-06 Clip(For Rear Floor Carpet)[05.1986 - 05.1988] EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX TYPE B,BEIGE,DARK BEIGE,TRIM4# |
90467-11037-06 |
US $1.75 |
||
|
58564H
|
58564H
90467-13037-01 Clip(For Rear Floor Carpet)[05.1986 - 05.1988] EL3#,NL30 TYPE C,BLACK,BLACK,TRIM2# |
90467-13037-01 |
US $1.75 |
||
|
58564H
|
58564H
90467-13037-04 Clip(For Rear Floor Carpet)[05.1986 - 05.1988] EL3#,NL30 TYPE C,BLUE,BLUE,TRIM8# |
90467-13037-04 |
US $1.75 |
||
|
58564H
|
58564H
90467-13037-05 Clip(For Rear Floor Carpet)[05.1986 - 05.1988] EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX TYPE C,BEIGE,DARK BEIGE,TRIM4# |
90467-13037-05 |
US $1.75 |
||
| replacement | |||||
|
58564H
|
58564H
90467-13037-06 Clip(For Rear Floor Carpet)[05.1986 - 05.1988] EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX TYPE C,BEIGE,DARK BEIGE,TRIM4# |
90467-13037-06 |
US $1.75 |
||
|
72681B
|
72681B
72681-16010-24 Hook, Rear Seat Back Lock, Lower[05.1987 - 05.1988] EL30..TX,VC BUSINESS PACKAGE,BLUE |
72681-16010-24 |
US $3.93 |
||
| replacement | |||||
|
72681B
|
72681B
72681-16010-01 Hook, Rear Seat Back Lock, Lower[05.1987 - 05.1988] EL30..TX,VC BUSINESS PACKAGE,BLUE |
72681-16010-01 |
US $3.93 |
||
|
9353054014
|
9353054014
93530-54014 New Genuine Part |
93530-54014 |
US $0.61 |
||
