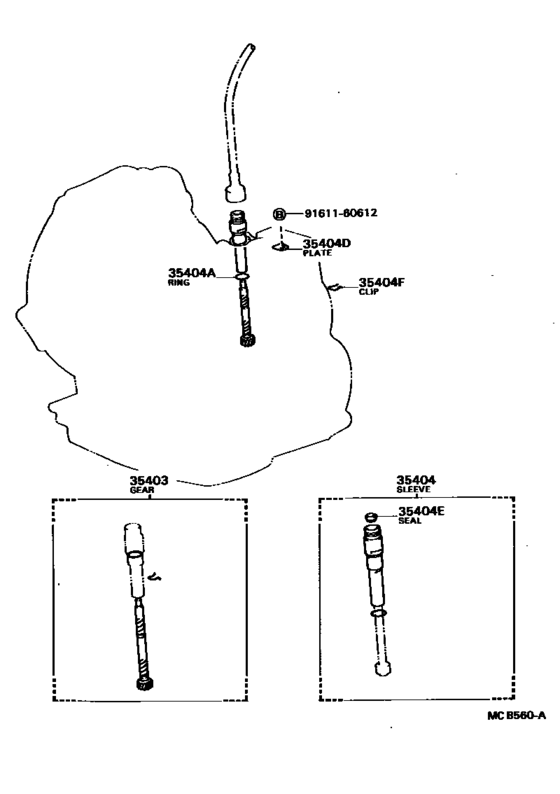

Speedometer Driven Gear (Atm) ([05.1986 - ] (8605- )3FC) Diagram Toyota CORSA/ TERCEL
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- EL30
- grade
- SOP
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- ATM
- From
- 05.1986
- To
- 05.1988
- Gear Shift Type
- 3FC
- No.of Doors
- 3DS
- Vehicle Model
- Corsa
- Fuel Induction
- CBR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35403
|
35403
33403-19375
Gear Sub-Assy, Speedometer Driven (Atm)
[05.1986 - 05.1988] EL3#..3FC N=23 |
33403-19375 |
— | ||
|
35404
|
35404
33404-32010
Sleeve Sub-Assy, Speedometer Shaft (Atm)
[05.1986 - 05.1988] EL3#..3FC |
33404-32010 |
— | ||
|
35404A
|
35404A
96711-24018 Ring, O[05.1986 - 05.1988] EL3#..3FC |
96711-24018 |
from US $2.34 |
||
|
35404D
|
35404D
33485-14010 Plate, Speedometer Sleeve Lock (Mtm)[05.1986 - 05.1988] EL3#..3FC |
33485-14010 |
US $2.24 |
||
|
35404E
|
35404E
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[05.1986 - 05.1988] EL3#,NL30..ATM |
90310-09001 |
from US $2.56 |
||
|
35404F
|
35404F
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[05.1986 - 05.1988] EL3#,NL30..ATM |
90468-12005 |
US $1.44 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
