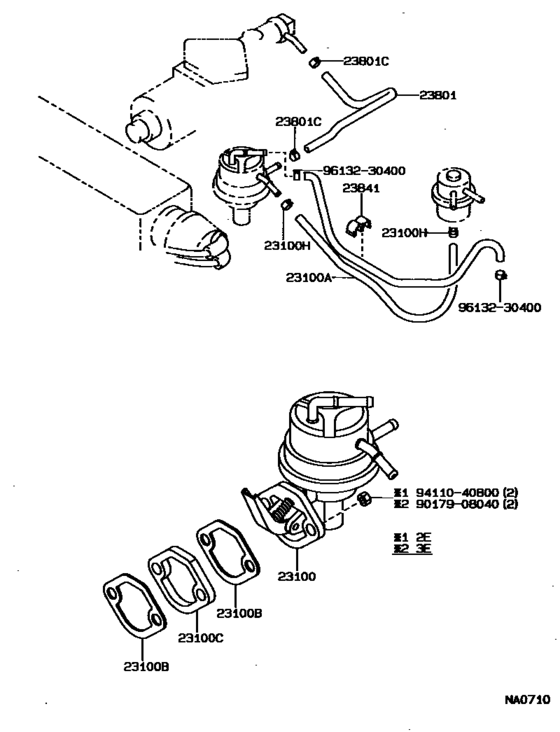

Fuel Pump & Pipe ([05.1988 - ] (8805- )2E,3E) Diagram Toyota CORSA/ TERCEL
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- EL30
- grade
- SOP
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- ATM
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 3FC
- No.of Doors
- 5DS
- Vehicle Model
- Corsa
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-11032 Pump Assy, Fuel[05.1988 - 07.1988] 2E..EL30 |
23100-11032 |
US $106.29 |
||
| replacement | |||||
|
23100
|
23100
23100-11033 Pump Assy, Fuel[05.1988 - 07.1988] 2E..EL30 |
23100-11033 |
US $107.74 |
||
|
23100
|
23100
23100-11033 Pump Assy, Fuel[07.1988 - 09.1990] 2E..EL30 |
23100-11033 |
US $107.74 |
||
|
23100A
|
23100A
95333-06030
Hose, Fuel
[05.1988 - 09.1990] 2E,3E..EL3# |
95333-06030 |
— | ||
| replacement | |||||
|
23100A
|
23100A
95338-06030 HOSE, FUEL[05.1988 - 09.1990] 2E,3E..EL3# |
95338-06030 |
from US $9.28 |
||
|
23100B
|
23100B
90923-05017
Gasket, Fuel Pump(For Cylinder Block Plate Plug)
[05.1988 - 12.1989] 2E,3E..EL3# |
90923-05017 |
— | ||
| replacement | |||||
|
23100B
|
23100B
90923-05024 Gasket, Fuel Pump(For Cylinder Block Plate Plug)[05.1988 - 12.1989] 2E,3E..EL3# |
90923-05024 |
US $3.49 |
||
|
23100B
|
23100B
90923-05024 Gasket, Fuel Pump(For Cylinder Block Plate Plug)[12.1989 - 09.1990] 2E,3E..EL3# |
90923-05024 |
US $3.49 |
||
|
23100C
|
23100C
23915-10020
Insulator, Fuel Pump
[05.1988 - 09.1990] 2E,3E..EL3# |
23915-10020 |
— | ||
| replacement | |||||
|
23100C
|
23100C
23915-10021 Insulator, Fuel Pump[05.1988 - 09.1990] 2E,3E..EL3# |
23915-10021 |
US $8.56 |
||
|
23100H
|
23100H
96132-30600
Clip(For Actuator Hose)
[05.1988 - 09.1990] 2E,3E..EL3# |
96132-30600 |
— | ||
| replacement | |||||
|
23100H
|
23100H
96132-51100 Clip (For Hose)[05.1988 - 09.1990] 2E,3E..EL3# |
96132-51100 |
from US $1.74 |
||
|
23801
|
23801
95333-06030
Hose, Fuel
[05.1988 - 09.1990] 2E,3E..EL3# ＊Ｈ，Ｌ＝３００ |
95333-06030 |
— | ||
| replacement | |||||
|
23801
|
23801
95338-06030 HOSE, FUEL[05.1988 - 09.1990] 2E,3E..EL3# ＊Ｈ，Ｌ＝３００ |
95338-06030 |
from US $9.28 |
||
|
23801C
|
23801C
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
[01.1989 - 09.1990] 2E,3E..EL3# |
90467-11009 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[01.1989 - 09.1990] 2E,3E..EL3# |
96135-51100 |
from US $1.93 |
||
|
23801C
|
23801C
90467-11049 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.1988 - 01.1989] 2E,3E..EL3# |
90467-11049 |
US $1.89 |
||
| replacement | |||||
|
23801C
|
23801C
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[05.1988 - 01.1989] 2E,3E..EL3# |
96135-51100 |
from US $1.93 |
||
|
23841
|
23841
90464-00231 Clamp, Fuel Pipe(Hose), No.1[05.1988 - 09.1990] 2E,3E..EL3# |
90464-00231 |
US $3.32 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.62 |
||
