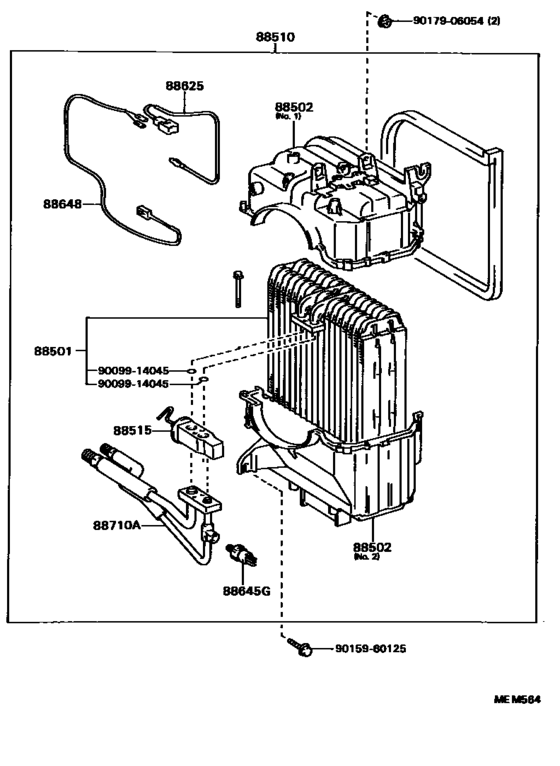

Heating & Air Conditioning - Cooler Unit ([07.1988 - ] (8807- )EFI) Diagram Toyota CORSA/ TERCEL
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- EL31
- grade
- SXI
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 3DS
- Vehicle Model
- Corsa
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88501
|
88501
88501-16080
Evaporator Sub-Assy, Cooler, No.1
[05.1988 - 07.1988] EL31..SXI,UX,VSI,VU |
88501-16080 |
— | ||
|
88501
|
88501
88501-16090
Evaporator Sub-Assy, Cooler, No.1
[07.1988 - 09.1990] EL31..EFI |
88501-16090 |
— | ||
|
88502
|
88502
88502-16110
Case Sub-Assy, Cooling Unit
[07.1988 - 09.1990] EL31..EFI ＮＯ．１ |
88502-16110 |
— | ||
|
88502
|
88502
88502-16120
Case Sub-Assy, Cooling Unit
[07.1988 - 09.1990] EL31..EFI ＮＯ．２ |
88502-16120 |
— | ||
|
88510
|
88510
88510-16170
Unit Assy, Cooler
[05.1988 - 07.1988] EL31..SXI,UX,VSI,VU |
88510-16170 |
— | ||
|
88510
|
88510
88510-16230
Unit Assy, Cooler
[07.1988 - 09.1990] EL31..EFI |
88510-16230 |
— | ||
|
88515
|
88515
88515-14060 Valve, Cooler Expansion[07.1988 - 09.1990] EL31..EFI |
88515-14060 |
US $142.69 |
||
| replacement | |||||
|
88515
|
88515
88515-33010 Valve, Cooler Expansion[07.1988 - 09.1990] EL31..EFI |
88515-33010 |
from US $132.72 |
||
|
88515
|
88515
88515-16040
Valve, Cooler Expansion
[05.1988 - 07.1988] EL31..SXI,UX,VSI,VU |
88515-16040 |
— | ||
|
88625
|
88625
88625-16080
Thermistor, Cooler, No.1
[05.1988 - 09.1990] EL31..TBO; EL30..GX,TX,VC,VL; EL31..SXI,UX,VSI,VU; EL30..CUT,SOP; EL31,NL30..EX,VX; EL31,NL30..GX,TX,VC,VL |
88625-16080 |
— | ||
|
88645G
|
88645G
88645-16020 Switch, Pressure[05.1988 - 09.1990] EL30..GX,TX,VC,VL; EL31..SXI,UX,VSI,VU; EL30..CUT,SOP; EL31,NL30..EX,VX |
88645-16020 |
US $75.48 |
||
|
88648
|
88648
88648-16120
Wiring, Cooler, No.1
[05.1988 - 07.1988] EL31..SXI,UX,VSI,VU |
88648-16120 |
— | ||
|
88648
|
88648
88648-16150
Wiring, Cooler, No.1
[07.1988 - 09.1990] EL31..EFI |
88648-16150 |
— | ||
|
88710A
|
88710A
88710-16100 Tube Assy, Air Conditioner[07.1988 - 09.1990] EL31..EFI |
88710-16100 |
US $123.76 |
||
|
9009914045
|
9009914045
90099-14045 Ring, O(For Cooler Refrigerant Suction Hose) |
90099-14045 |
US $2.57 |
||
|
9015960125
|
9015960125
90159-60125
New Genuine Part
|
90159-60125 |
— | ||
| replacement | |||||
|
9015960125
|
9015960125
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
