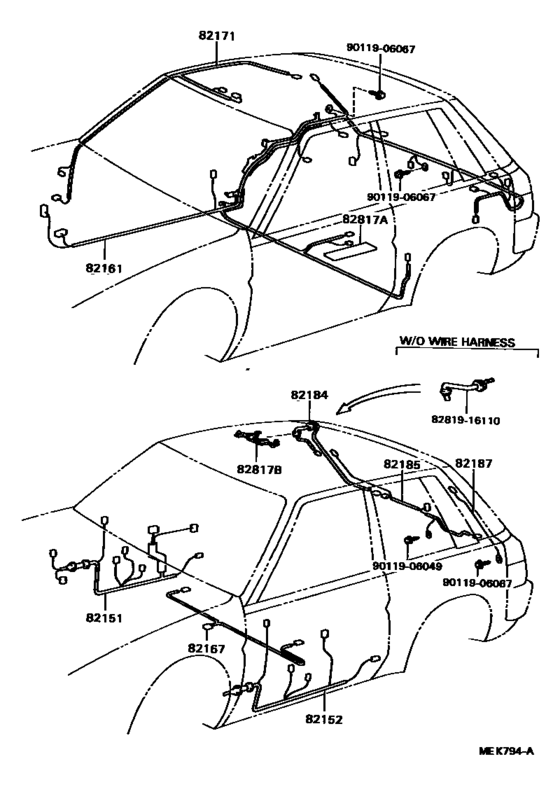

Wiring & Clamp ([05.1988 - ] (8805- )3DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- EL31
- grade
- SXI
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 3DS
- Vehicle Model
- Corsa
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-16030 Wire, Front Door, Rh[05.1988 - 09.1990] EL3#..3DS..(CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX) |
82151-16030 |
US $37.27 |
||
|
82151
|
82151
82151-16040 Wire, Front Door, Rh[05.1988 - 09.1990] EL3#..3DS..(CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
82151-16040 |
US $171.81 |
||
|
82152
|
82152
82152-16020 Wire, Front Door, Lh[05.1988 - 09.1990] EL3#..3DS..(CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX) |
82152-16020 |
US $37.27 |
||
|
82152
|
82152
82152-16030 Wire, Front Door, Lh[05.1988 - 09.1990] EL3#..3DS..(CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
82152-16030 |
US $126.67 |
||
|
82161
|
82161
82161-16480 Wire, Floor[05.1988 - 09.1990] EL31..3DS |
82161-16480 |
US $528.53 |
||
|
82167
|
82167
82167-16010 Wire, Seat, No.1[05.1988 - 09.1990] EL31..EFI,TBO |
82167-16010 |
US $37.27 |
||
|
82171
|
82171
82171-16060 Wire, Roof, No.1[05.1988 - 09.1990] EL3#,NL30 |
82171-16060 |
US $31.60 |
||
|
82171
|
82171
82171-16070 Wire, Roof, No.1[05.1988 - 09.1990] EL31..EFI,TBO ｱﾘ(ｻﾝﾙ-ﾌ) |
82171-16070 |
US $62.03 |
||
|
82171
|
82171
82171-16110 Wire, Roof, No.1[05.1988 - 09.1990] EL3#..3DS..(SXI,TX,VC,VSI) ｷﾔﾝﾊﾞｽ ﾄﾂﾌﾟ |
82171-16110 |
US $80.08 |
||
|
82184
|
82184
82184-16120 Wire, Back Door, No.1[05.1988 - 08.1988] EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL) |
82184-16120 |
US $55.76 |
||
|
82184
|
82184
82184-16180 Wire, Back Door, No.1[05.1988 - 08.1988] EL31..EFI,TBO ｱﾘ(ﾙ-ﾌｽﾎﾟｲﾗ (LED ﾂｷ)) |
82184-16180 |
US $62.03 |
||
|
82185
|
82185
82185-16120 Wire, Back Door, No.2[05.1988 - 09.1990] EL30..3DS..(TX,VC); EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL) |
82185-16120 |
US $37.27 |
||
|
82187
|
82187
82187-16040 Wire, Rear Window, No.2[05.1988 - 09.1990] EL30..3DS..(TX,VC); EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL) |
82187-16040 |
US $4.22 |
||
|
82817A
|
82817A
82817-16100 Protector, Wiring Harness, No.1[05.1988 - 09.1990] EL3#,NL30 |
82817-16100 |
US $5.53 |
||
|
82817B
|
82817B
82817-16190 Protector, Wiring Harness, No.3[05.1988 - 09.1990] EL30..3DS..(TX,VC); EL31,NL30..3DS;EL30..3DS..(CUT,GX,SOP,VL) |
82817-16190 |
US $16.45 |
||
|
8281916110
|
8281916110
82819-16110 Grommet, Wiring Harness |
82819-16110 |
US $17.33 |
||
|
9011906049
|
9011906049
90119-06049 New Genuine Part |
90119-06049 |
US $1.05 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
