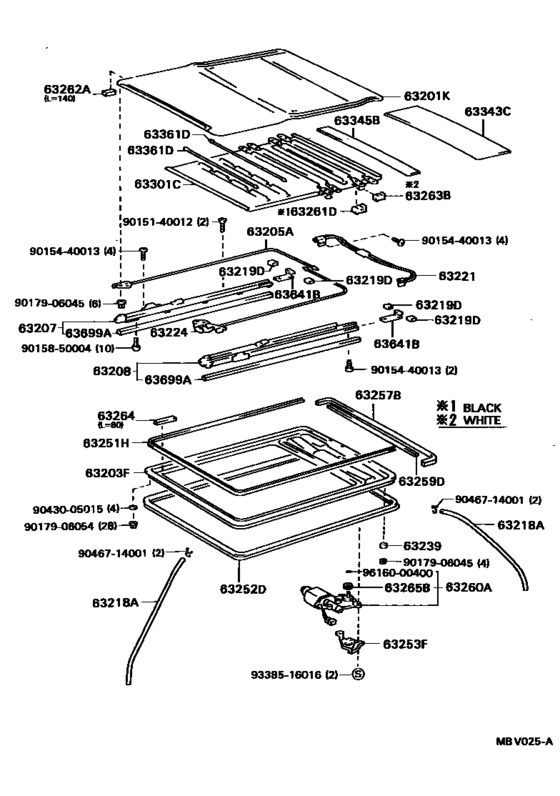

Roof Panel & Back Window Glass ([09.1990 - ] ｷﾔﾝﾊﾞｽ ﾄﾂﾌﾟ (9009- )3DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL41
- grade
- JOI
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 4F
- No.of Doors
- 3DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201K
|
63201K
63201-16060 Camvas Sub-Assy, Sliding Roof[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63201-16060 |
US $931.84 |
||
|
63203F
|
63203F
63203-16050 Housing Sub-Assy, Sliding Roof[09.1990 - 08.1992] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63203-16050 |
US $444.08 |
||
|
63203F
|
63203F
63203-16080 Housing Sub-Assy, Sliding Roof[08.1992 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63203-16080 |
US $444.08 |
||
|
63205A
|
63205A
63205-16040 Cable Sub-Assy, Sliding Roof Drive[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63205-16040 |
US $262.08 |
||
|
63207
|
63207
63207-16050 Rail Sub-Assy, Sliding Roof Guide, Rh[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63207-16050 |
US $193.65 |
||
|
63208
|
63208
63208-16050 Rail Sub-Assy, Sliding Roof Guide, Lh[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63208-16050 |
US $193.65 |
||
|
63218A
|
63218A
63249-16090 Hose(For Sliding Roof Or Removable Roof Drain)[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) FRONT |
63249-16090 |
US $18.78 |
||
|
63218A
|
63218A
63249-16100 Hose(For Sliding Roof Or Removable Roof Drain)[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) REAR |
63249-16100 |
US $7.72 |
||
|
63219D
|
63219D
63219-10020 Cushion, Sliding Roof Guide Rail[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63219-10020 |
US $4.37 |
||
|
63221
|
63221
63209-10040 Casing Sub-Assy, Sliding Roof Cable[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63209-10040 |
US $164.53 |
||
|
63224
|
63224
63206-16010 Cable, Sliding Roof Drive, Lh[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63206-16010 |
US $262.08 |
||
|
63239
|
63239
63239-10010 Stopper, Sliding Roof Panel[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) 厚さ＝１．０ |
63239-10010 |
US $19.66 |
||
|
63239
|
63239
63239-16010 Stopper, Sliding Roof Panel[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) 厚さ＝１．５ |
63239-16010 |
US $9.03 |
||
|
63239
|
63239
63239-16020 Stopper, Sliding Roof Panel[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) 厚さ＝２．０ |
63239-16020 |
US $10.05 |
||
|
63239
|
63239
63239-16030 Stopper, Sliding Roof Panel[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) 厚さ＝２．５ |
63239-16030 |
US $11.07 |
||
|
63239
|
63239
63239-16040 Stopper, Sliding Roof Panel[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) 厚さ＝３．０ |
63239-16040 |
US $12.52 |
||
|
63251H
|
63251H
63251-10040 Weatherstrip, Sliding Roof[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63251-10040 |
US $113.57 |
||
|
63252D
|
63252D
63252-16020 Weatherstrip, Sliding Roof Housing[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63252-16020 |
US $128.13 |
||
|
63253F
|
63253F
63253-16020 Bracket, Slide Roof Motor Cover[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63253-16020 |
US $9.61 |
||
|
63257B
|
63257B
63257-10010 Seal, Sliding Roof[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63257-10010 |
US $20.82 |
||
|
63259D
|
63259D
63259-10020 Seal, Sliding Roof, No.2[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63259-10020 |
US $19.22 |
||
|
63260A
|
63260A
63260-10060 Gear Sub-Assy, Sliding Roof Drive[08.1992 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63260-10060 |
US $628.99 |
||
|
63260A
|
63260A
63260-16010 Gear Sub-Assy, Sliding Roof Drive[09.1990 - 04.1991] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63260-16010 |
US $628.99 |
||
| replacement | |||||
|
63260A
|
63260A
63260-16050 Gear Sub-Assy, Sliding Roof Drive[09.1990 - 04.1991] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63260-16050 |
US $628.99 |
||
|
63260A
|
63260A
63260-16050 Gear Sub-Assy, Sliding Roof Drive[04.1991 - 08.1992] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63260-16050 |
US $628.99 |
||
|
63261D
|
63261D
63261-10020 Shoe, Sliding Roof[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63261-10020 |
US $5.97 |
||
|
63262A
|
63262A
63262-10010 Seal, Sliding Roof, Front No.1[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63262-10010 |
US $6.26 |
||
|
63263B
|
63263B
63263-10010 Shoe, Sliding Roof[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63263-10010 |
US $5.97 |
||
|
63264
|
63264
63264-10020 Seal, Sliding Roof, Front No.3[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63264-10020 |
US $4.37 |
||
|
63265B
|
63265B
63265-20010 Gear, Sliding Roof Drive[09.1990 - 09.1994] EL43,45;EL41..3DS..JOI;EL41..AVE,AXX,MOA,SOP |
63265-20010 |
US $22.71 |
||
|
63301C
|
63301C
63301-16020-01 Strength Sub-Assy, Roof[09.1990 - 08.1992] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) GRAY,TRIM2# |
63301-16020-01 |
US $382.93 |
||
| replacement | |||||
|
63301C
|
63301C
63301-16020-B0 Strength Sub-Assy, Roof[09.1990 - 08.1992] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) GRAY,TRIM2# |
63301-16020-B0 |
US $382.93 |
||
|
63301C
|
63301C
63301-16020-B0 Strength Sub-Assy, Roof[08.1992 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) GRAY,TRIM2# |
63301-16020-B0 |
US $382.93 |
||
|
63301C
|
63301C
63301-16020-G0
Strength Sub-Assy, Roof
[08.1992 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) SPRUCE,TRIM6# |
63301-16020-G0 |
— | ||
|
63301C
|
63301C
63301-16020-J0
Strength Sub-Assy, Roof
[08.1992 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) EISEN BLUE,TRIM8# |
63301-16020-J0 |
— | ||
|
63343C
|
63343C
63343-16020 Pad, Roof Silencer, Rear[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63343-16020 |
US $5.82 |
||
|
63345B
|
63345B
63345-16010 Pad, Roof Silencer, Center[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63345-16010 |
US $6.84 |
||
|
63361D
|
63361D
63361-10080 Support, Sliding Roof Headlining[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63361-10080 |
US $8.88 |
||
|
63641B
|
63641B
63641-10010 Stopper, Sliding Roof Guide Rail[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63641-10010 |
US $8.88 |
||
|
63699A
|
63699A
63699-10010 Seal, Sliding Roof Guide Rail[09.1990 - 09.1994] EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
63699-10010 |
US $17.76 |
||
|
9015140012
|
9015140012
90151-40012 New Genuine Part |
90151-40012 |
US $1.60 |
||
|
9015440013
|
9015440013
90154-40013 New Genuine Part |
90154-40013 |
US $1.60 |
||
|
9015850004
|
9015850004
90158-50004 New Genuine Part |
90158-50004 |
US $1.60 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9043005015
|
9043005015
90430-05015 New Genuine Part |
90430-05015 |
US $1.60 |
||
|
9046714001
|
9046714001
90467-14001 Clip Or Clamp(For Ventilation Hose) |
90467-14001 |
from US $0.76 |
||
| replacement | |||||
|
9046714001
|
9046714001
90466-T0026
Clip Or Clamp(For Ventilation Hose)
|
90466-T0026 |
— | ||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.28 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
