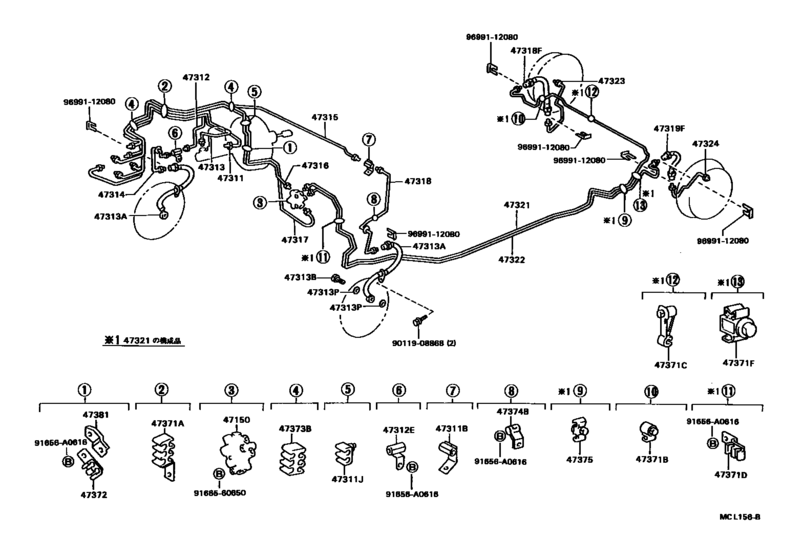

Brake Tube & Clamp ([09.1990 - ] ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ) (9009- )EL41,43,NL40) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47150
|
47150
47150-12060
Valve Assy, Proportioning
[09.1990 - 09.1994] EL41,43,NL40..DSL,EFI |
47150-12060 |
— | ||
| replacement | |||||
|
47150
|
47150
47150-12270 Valve Assy, Proportioning[09.1990 - 09.1994] EL41,43,NL40..DSL,EFI |
47150-12270 |
from US $172.98 |
||
|
47150
|
47150
47150-20240
Valve Assy, Proportioning
[09.1990 - 09.1994] EL41,43,NL40..DSL,EFI ｱﾘ(*66) |
47150-20240 |
— | ||
|
47311
|
47311
47311-10180 Tube, Front Brake, No.1[09.1990 - 03.1991] EL4#,NL40 |
47311-10180 |
US $7.72 |
||
|
47311
|
47311
47311-16130 Tube, Front Brake, No.1[09.1990 - 09.1994] EL41,43,NL40 ｱﾘ(*66) |
47311-16130 |
US $14.71 |
||
|
47311B
|
47311B
90412-10168 Way, No.1(For Front Brake Tube)[09.1990 - 09.1994] EL45 ｱﾘ(*66); EL41,43,NL40 ｱﾘ(*66) |
90412-10168 |
US $12.38 |
||
|
47311B
|
47311B
90413-10259 Way, No.1(For Front Brake Tube)[09.1990 - 09.1994] EL4#,NL40 |
90413-10259 |
US $13.25 |
||
|
47311J
|
47311J
90480-01573 Grommet, No.1(For Front Brake Tube)[09.1990 - 09.1994] EL4#,NL40 |
90480-01573 |
US $4.66 |
||
|
47312
|
47312
47312-16110 Tube, Front Brake, No.2[09.1990 - 09.1994] EL41,43,NL40 ｱﾘ(*66) |
47312-16110 |
US $19.66 |
||
|
47312
|
47312
47312-16120 Tube, Front Brake, No.2[09.1990 - 09.1994] EL4#,NL40 |
47312-16120 |
US $9.90 |
||
|
47312E
|
47312E
90412-10169 Way, No.1(For Front Brake Tube)[09.1990 - 09.1994] EL4#,NL40 |
90412-10169 |
US $7.72 |
||
|
47313
|
47313
47313-16130 Tube, Front Brake, No.3[09.1990 - 09.1994] EL41,43,NL40 ｱﾘ(*66) |
47313-16130 |
US $19.66 |
||
|
47313
|
47313
47313-16140 Tube, Front Brake, No.3[09.1990 - 09.1994] EL4#,NL40 |
47313-16140 |
US $7.72 |
||
|
47313A
|
47313A
90947-02644 Hose, Flexible, No.1(For Front)[09.1990 - 09.1994] EL4#,NL40 右側 |
90947-02644 |
US $38.58 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02813 Hose, Flexible, No.1(For Front)[09.1990 - 09.1994] EL4#,NL40 右側 |
90947-02813 |
US $40.28 |
||
|
47313A
|
47313A
90947-02645 Hose, Flexible, No.1(For Front)[09.1990 - 09.1994] EL4#,NL40 左側 |
90947-02645 |
US $38.58 |
||
| replacement | |||||
|
47313A
|
47313A
90947-02814 Hose, Flexible, No.1(For Front)[09.1990 - 09.1994] EL4#,NL40 左側 |
90947-02814 |
US $40.28 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[09.1990 - 09.1994] EL4#,NL40 |
90401-10015 |
from US $3.20 |
||
|
47313P
|
47313P
90430-10074 Gasket(For Oil Pressure Regulator)[09.1990 - 09.1994] EL4#,NL40 |
90430-10074 |
from US $0.94 |
||
|
47314
|
47314
47314-10230
Tube, Front Brake, No.4
[09.1990 - 09.1994] EL45 ｱﾘ(*66); EL41,43,NL40 ｱﾘ(*66) |
47314-10230 |
— | ||
|
47314
|
47314
47314-16090
Tube, Front Brake, No.4
[09.1990 - 09.1994] EL4#,NL40 |
47314-16090 |
— | ||
|
47315
|
47315
47315-16090 Tube, Front Brake, No.5[09.1990 - 09.1994] EL41,43,NL40 ｱﾘ(*66) |
47315-16090 |
US $21.99 |
||
|
47315
|
47315
47315-16100 Tube, Front Brake, No.5[09.1990 - 09.1994] EL4#,NL40 |
47315-16100 |
US $17.76 |
||
|
47316
|
47316
47316-16020 Tube, Front Brake, No.6[09.1990 - 09.1994] EL41,43,NL40 |
47316-16020 |
US $19.66 |
||
|
47317
|
47317
47317-16020 Tube, Front Brake, No.7[09.1990 - 09.1994] EL41,43,NL40 |
47317-16020 |
US $24.46 |
||
|
47318
|
47318
47318-18010 Tube, Front Brake, No.8[09.1990 - 09.1994] EL4#,NL40 |
47318-18010 |
US $13.10 |
||
|
47318F
|
47318F
90947-02603 Hose, Flexible(For Rear Rh)[09.1990 - 09.1994] EL41,43,NL40 |
90947-02603 |
US $25.33 |
||
|
47319F
|
47319F
90947-02603 Hose, Flexible(For Rear Rh)[09.1990 - 09.1994] EL41,43,NL40 |
90947-02603 |
US $25.33 |
||
|
47321
|
47321
47321-16070 Tube, Rear Brake, No.1[09.1990 - 03.1991] EL41,43,NL40 |
47321-16070 |
US $65.96 |
||
|
47321
|
47321
47321-16090 Tube, Rear Brake, No.1[03.1991 - 12.1993] EL41,43 |
47321-16090 |
US $65.96 |
||
| replacement | |||||
|
47321
|
47321
47321-16070 Tube, Rear Brake, No.1[03.1991 - 12.1993] EL41,43 |
47321-16070 |
US $65.96 |
||
|
47322
|
47322
47322-16060 Tube, Rear Brake, No.2[09.1990 - 03.1991] EL41,43,NL40 |
47322-16060 |
US $41.79 |
||
|
47322
|
47322
47322-16080 Tube, Rear Brake, No.2[03.1991 - 12.1993] EL41,43 |
47322-16080 |
US $41.79 |
||
| replacement | |||||
|
47322
|
47322
47322-16060 Tube, Rear Brake, No.2[03.1991 - 12.1993] EL41,43 |
47322-16060 |
US $41.79 |
||
|
47323
|
47323
47323-16140 Tube, Rear Brake, No.3[09.1990 - 09.1994] EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
47323-16140 |
US $7.72 |
||
|
47324
|
47324
47324-16130 Tube, Rear Brake, No.4[09.1990 - 09.1994] EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
47324-16130 |
US $7.72 |
||
|
47371A
|
47371A
47371-10020 Clamp, Brake Tube, No.1[09.1990 - 09.1994] EL45 ｱﾘ(*66); EL41,43,NL40 ｱﾘ(*66) |
47371-10020 |
US $8.88 |
||
|
47371A
|
47371A
90461-06055 Clamp, Brake Tube, No.1[09.1990 - 09.1994] EL4#,NL40 |
90461-06055 |
US $3.14 |
||
|
47371B
|
47371B
47371-10100 Clamp, Brake Tube, No.6[09.1990 - 09.1994] EL4#,NL40 |
47371-10100 |
US $6.84 |
||
|
47371C
|
47371C
47371-10110 Clamp, Brake Tube, No.7[09.1990 - 09.1994] EL41,43,NL40 |
47371-10110 |
US $9.17 |
||
|
47371D
|
47371D
47371-16030 Clamp, Brake Tube, No.1[03.1991 - 12.1993] EL41,43 |
47371-16030 |
US $7.28 |
||
|
47371D
|
47371D
47371-30010 Clamp, Brake Tube, No.1[09.1990 - 03.1991] EL4#,NL40 |
47371-30010 |
US $11.53 |
||
|
47371F
|
47371F
47371-16010 Clamp, Brake Tube, No.10[09.1990 - 09.1994] EL41,43,NL40 |
47371-16010 |
US $8.59 |
||
|
47372
|
47372
47371-10150 Clamp, Brake Tube, No.2[09.1990 - 09.1994] EL45 ｱﾘ(*66); EL41,43,NL40 ｱﾘ(*66) |
47371-10150 |
US $7.13 |
||
|
47372
|
47372
90461-10738 Clamp, Brake Tube, No.2[09.1990 - 09.1994] EL4#,NL40 |
90461-10738 |
US $4.37 |
||
|
47373B
|
47373B
90464-00478
Clamp, Brake Tube, No.3
[09.1990 - 09.1994] EL45 ｱﾘ(*66); EL41,43,NL40 ｱﾘ(*66) |
90464-00478 |
— | ||
|
47373B
|
47373B
90949-01207
Clamp, Brake Tube, No.6
[09.1990 - 09.1994] EL4#,NL40 |
90949-01207 |
— | ||
|
47374B
|
47374B
90461-06055 Clamp, Brake Tube, No.1[09.1990 - 09.1994] EL4#,NL40 |
90461-06055 |
US $3.14 |
||
|
47375
|
47375
47371-10080 Clamp, Brake Tube, No.3[09.1990 - 09.1994] EL41,43,NL40 |
47371-10080 |
US $7.43 |
||
|
47381
|
47381
47381-10070 Bracket, Brake Tube Clamp No.1[09.1990 - 09.1994] EL4#,NL40 |
47381-10070 |
US $6.99 |
||
|
91656A0616
|
91656A0616
91656-A0616 New Genuine Part |
91656-A0616 |
US $1.60 |
||
| replacement | |||||
|
91656A0616
|
91656A0616
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9011908868
|
9011908868
90119-08868 BOLT WWASHER |
90119-08868 |
US $1.12 |
||
|
9166560650
|
9166560650
91665-60650
New Genuine Part
|
91665-60650 |
— | ||
|
9699112080
|
9699112080
96991-12080 Clip |
96991-12080 |
US $1.92 |
||
