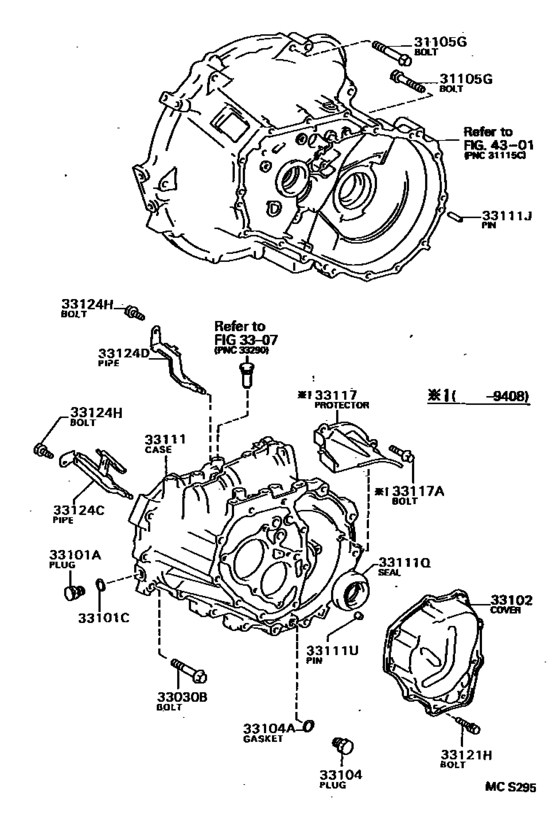

Clutch Housing & Transmission Case (Mtm) ([09.1990 - ] C150,C152,C50F (9009- )EL43,45..5F) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90105-10097 Bolt(For Transaxle & Engine Setting)[09.1990 - 09.1994] EL4#..MTM ＊１０−１．２５ＰＸ６０−２２ |
90105-10097 |
US $3.49 |
||
|
31105G
|
31105G
91611-61025
Bolt(For Transaxle & Engine Setting)
[09.1990 - 02.1993] EL41,43..MTM ＊１０−１．２５ＰＸ２５−２５ |
91611-61025 |
— | ||
| replacement | |||||
|
31105G
|
31105G
91612-61025 Bolt (For Control Shaft Cover)[09.1990 - 02.1993] EL41,43..MTM ＊１０−１．２５ＰＸ２５−２５ |
91612-61025 |
from US $1.13 |
||
|
31105G
|
31105G
91612-41025 Bolt(For Transaxle & Engine Setting)[08.1994 - 09.1994] EL4#..MTM ＊１０−１．２５ＰＸ２５−２５ |
91612-41025 |
US $2.18 |
||
| replacement | |||||
|
31105G
|
31105G
90119-10223 Bolt(For Transaxle & Engine Setting)[08.1994 - 09.1994] EL4#..MTM ＊１０−１．２５ＰＸ２５−２５ |
90119-10223 |
US $1.92 |
||
|
31105G
|
31105G
91619-61260 Bolt(For Transaxle & Engine Setting)[09.1990 - 09.1994] EL4#..MTM ＊１２−１．２５ＰＸ６０−３０ |
91619-61260 |
US $1.14 |
||
|
31105G
|
31105G
91621-60614 Bolt(For Transaxle & Engine Setting)[09.1990 - 02.1993] EL41,43..MTM ＊６−１．００ＰＸ１４−１４ |
91621-60614 |
from US $1.54 |
||
|
33030B
|
33030B
90105-08086 Bolt(For Transaxle Case & Transmission Case Setting)[09.1990 - 09.1994] EL41,43,NL40..MTM ＊８−１．２５ＰＸ４５−２７．５ |
90105-08086 |
US $1.76 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[09.1990 - 09.1994] EL41,43,NL40..MTM |
90341-18006 |
from US $2.76 |
||
|
33101C
|
33101C
90430-18008 Gasket[09.1990 - 09.1994] EL4#,NL40..MTM |
90430-18008 |
from US $1.76 |
||
|
33102
|
33102
33102-10020 Cover Sub-Assy, Manual Transmission Case[09.1990 - 05.1991] EL43,NL40..5F |
33102-10020 |
US $47.47 |
||
| replacement | |||||
|
33102
|
33102
33102-10023
Cover Sub-Assy, Manual Transmission Case
[09.1990 - 05.1991] EL43,NL40..5F |
33102-10023 |
— | ||
|
33102
|
33102
33102-10021 Cover Sub-Assy, Manual Transmission Case[05.1991 - 08.1992] EL43,NL40..5F |
33102-10021 |
US $47.32 |
||
| replacement | |||||
|
33102
|
33102
33102-10023
Cover Sub-Assy, Manual Transmission Case
[05.1991 - 08.1992] EL43,NL40..5F |
33102-10023 |
— | ||
|
33102
|
33102
33102-10022 Cover Sub-Assy, Manual Transmission Case[08.1992 - 09.1994] EL43,NL40..5F |
33102-10022 |
US $47.32 |
||
| replacement | |||||
|
33102
|
33102
33102-10023
Cover Sub-Assy, Manual Transmission Case
[08.1992 - 09.1994] EL43,NL40..5F |
33102-10023 |
— | ||
|
33104
|
33104
90341-18006 Plug (No magnet)[09.1990 - 09.1994] EL4#,NL40..MTM |
90341-18006 |
from US $2.76 |
||
|
33104A
|
33104A
90430-18008 Gasket[09.1990 - 09.1994] EL4#,NL40..MTM |
90430-18008 |
from US $1.76 |
||
|
33111
|
33111
33111-10071 Case, Manual Transmission[09.1990 - 08.1994] EL41,43,NL40..MTM |
33111-10071 |
US $527.07 |
||
| replacements | |||||
|
33111
|
33111
33111-16081 Case, Manual Transmission[09.1990 - 08.1994] EL41,43,NL40..MTM |
33111-16081 |
US $468.83 |
||
|
33111
|
33111
33124-10021 Pipe, Oil Receiver, No.2(Mtm)[09.1990 - 08.1994] EL41,43,NL40..MTM |
33124-10021 |
US $16.89 |
||
|
33111
|
33111
90109-12073 Bolt (For Shift Inter Lock Plate)[09.1990 - 08.1994] EL41,43,NL40..MTM |
90109-12073 |
US $3.06 |
||
|
33111
|
33111
90109-18005 Bolt (For Shift Inter Lock Plate)[09.1990 - 08.1994] EL41,43,NL40..MTM |
90109-18005 |
US $2.97 |
||
|
33111
|
33111
90430-18008 Gasket[09.1990 - 08.1994] EL41,43,NL40..MTM |
90430-18008 |
from US $1.76 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[09.1990 - 09.1994] EL4#,NL40..MTM 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.92 |
||
|
33111Q
|
33111Q
90311-34008
Seal, Oil(For Transmission Case)
[09.1990 - 08.1991] EL4#,NL40..MTM |
90311-34008 |
— | ||
| replacement | |||||
|
33111Q
|
33111Q
90311-34042 Oil Seal, Front Drive Shaft, Lh[09.1990 - 08.1991] EL4#,NL40..MTM |
90311-34042 |
from US $7.52 |
||
|
33111Q
|
33111Q
90311-34017
Seal, Oil(For Transmission Case)
[08.1991 - 09.1994] EL4#,NL40..MTM |
90311-34017 |
— | ||
| replacement | |||||
|
33111Q
|
33111Q
90311-34042 Oil Seal, Front Drive Shaft, Lh[08.1991 - 09.1994] EL4#,NL40..MTM |
90311-34042 |
from US $7.52 |
||
|
33117
|
33117
33117-16010
Protector, Manual Transmission Case
[09.1990 - 11.1990] EL41,43,NL40..MTM |
33117-16010 |
— | ||
|
33117A
|
33117A
90105-08040
Bolt(For Plate Bolt Lock)
[09.1990 - 08.1994] EL4#,NL40..MTM |
90105-08040 |
— | ||
| replacement | |||||
|
33117A
|
33117A
91641-H0820 Bolt[09.1990 - 08.1994] EL4#,NL40..MTM |
91641-H0820 |
from US $0.92 |
||
|
33121H
|
33121H
90119-08494 Bolt, W/washer(For Transmission Case Cover)[09.1990 - 09.1994] EL41,43,NL40..MTM |
90119-08494 |
US $1.89 |
||
| replacement | |||||
|
33121H
|
33121H
90119-08373 Bolt, W/washer(For Transmission Case Cover)[09.1990 - 09.1994] EL41,43,NL40..MTM |
90119-08373 |
US $2.24 |
||
|
33124C
|
33124C
33124-10010 Pipe, Oil Receiver, No.1(Mtm)[09.1990 - 08.1994] EL41,43,NL40..MTM |
33124-10010 |
US $20.97 |
||
|
33124D
|
33124D
33124-10020 Pipe, Oil Receiver, No.2(Mtm)[09.1990 - 05.1994] EL43,NL40..5F |
33124-10020 |
US $16.02 |
||
|
33124D
|
33124D
33124-10021 Pipe, Oil Receiver, No.2(Mtm)[05.1994 - 09.1994] EL43,NL40..5F |
33124-10021 |
US $16.89 |
||
|
33124H
|
33124H
91611-60820
Bolt(For Transaxle & Engine Setting)
[09.1990 - 01.1991] EL41,43,NL40..MTM |
91611-60820 |
— | ||
| replacement | |||||
|
33124H
|
33124H
91611-G0820 Bolt[09.1990 - 01.1991] EL41,43,NL40..MTM |
91611-G0820 |
from US $1.31 |
||
