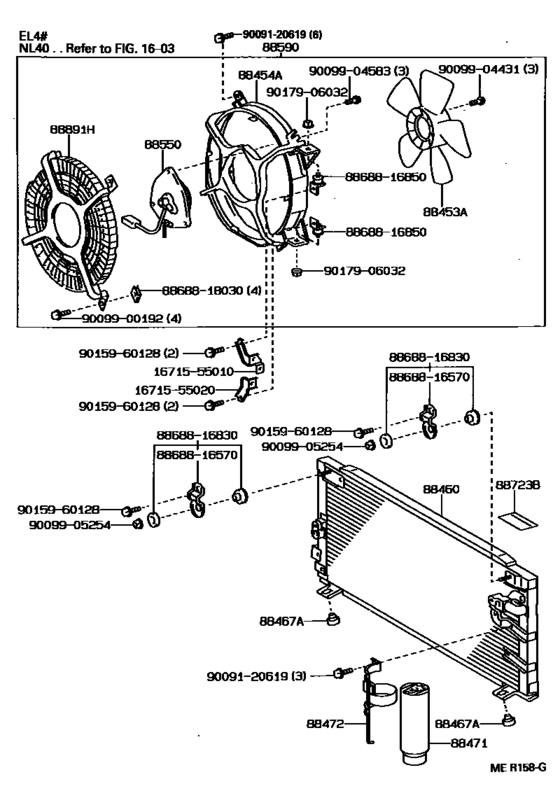

Heating & Air Conditioning - Cooler Piping ([09.1990 - 08.1992] (9009-9208)) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88453A
|
88453A
88453-10020
Fan, Cooling (For Condenser)
[09.1990 - 09.1994] EL4#..4F,4FC,5F |
88453-10020 |
— | ||
|
88454A
|
88454A
88454-16110
Shroud, Fan
[09.1990 - 09.1994] EL4#..4F,4FC,5F |
88454-16110 |
— | ||
|
88460
|
88460
88460-16240 Condenser Assy, Cooler[09.1990 - 08.1992] EL4# |
88460-16240 |
US $439.71 |
||
| replacement | |||||
|
88460
|
88460
88460-16250 Condenser Assy, Cooler[09.1990 - 08.1992] EL4# |
88460-16250 |
US $438.26 |
||
|
88460
|
88460
88460-16300 Condenser Assy, Cooler[08.1992 - 08.1993] EL4# |
88460-16300 |
US $438.26 |
||
| replacement | |||||
|
88460
|
88460
88460-16320 Condenser Assy, Cooler[08.1992 - 08.1993] EL4# |
88460-16320 |
US $438.26 |
||
|
88460
|
88460
88460-16301 Condenser Assy, Cooler[08.1993 - 09.1994] EL4# |
88460-16301 |
US $515.42 |
||
| replacement | |||||
|
88460
|
88460
88460-16321 Condenser Assy, Cooler[08.1993 - 09.1994] EL4# |
88460-16321 |
US $515.42 |
||
|
88467A
|
88467A
88467-10020
Cushion, Cooler Condenser, No.2
[09.1990 - 08.1992] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88467-10020 |
— | ||
|
88467A
|
88467A
88467-16090
Cushion, Cooler Condenser, No.1
[08.1992 - 09.1994] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88467-16090 |
— | ||
|
88471
|
88471
88471-16040
Receiver & Dryer Assy, Cooler
[09.1990 - 08.1993] EL4#;NL40..4FC |
88471-16040 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-16050 Receiver & Dryer Assy, Cooler[09.1990 - 08.1993] EL4#;NL40..4FC |
88471-16050 |
from US $51.98 |
||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[08.1993 - 09.1994] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88471-34010 |
from US $50.47 |
||
|
88472
|
88472
88472-16110
Bracket, Receiver Tank, No.1
[09.1990 - 08.1992] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88472-16110 |
— | ||
|
88472
|
88472
88472-16120
Bracket, Receiver Tank, No.1
[08.1992 - 09.1994] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
88472-16120 |
— | ||
|
88550
|
88550
88550-10050 Motor Assy, Blower (For Condenser)[09.1990 - 09.1994] EL4#..4F,4FC,5F |
88550-10050 |
US $230.05 |
||
|
88590
|
88590
88590-16040
Blower Assy, W/shroud
[09.1990 - 09.1994] EL4#..4F,4FC,5F |
88590-16040 |
— | ||
| replacement | |||||
|
88590
|
88590
88590-16050
Blower Assy, W/shroud
[09.1990 - 09.1994] EL4#..4F,4FC,5F |
88590-16050 |
— | ||
|
88723B
|
88723B
88723-16030
Label, Cooler Service Caution
[08.1993 - 09.1994] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88723-16030 |
— | ||
|
88723B
|
88723B
88723-20010
Label, Cooler Service Caution
[09.1990 - 08.1993] EL4#;NL40..4FC |
88723-20010 |
— | ||
|
88891H
|
88891H
88891-16040
Cover, Cooler, No.1
[09.1990 - 09.1994] EL4# |
88891-16040 |
— | ||
|
1671555010
|
1671555010
16715-55010 Bracket, Fan Shroud |
16715-55010 |
US $8.59 |
||
|
1671555020
|
1671555020
16715-55020 Bracket, Fan Shroud |
16715-55020 |
US $10.63 |
||
|
8868816570
|
8868816570
88688-16570
Bracket, Cooler Diaphragm
|
88688-16570 |
— | ||
|
8868816830
|
8868816830
88688-16830
Bracket, Cooler
|
88688-16830 |
— | ||
|
8868816850
|
8868816850
88688-16850
Bracket, Fan Shroud, No.2
|
88688-16850 |
— | ||
|
8868818030
|
8868818030
88688-18030 Bracket, Fan Shroud |
88688-18030 |
US $0.55 |
||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9009900192
|
9009900192
90099-00192
New Genuine Part
|
90099-00192 |
— | ||
|
9009904431
|
9009904431
90099-04431
New Genuine Part
|
90099-04431 |
— | ||
|
9009904583
|
9009904583
90099-04583
New Genuine Part
|
90099-04583 |
— | ||
|
9009905254
|
9009905254
90099-05254
New Genuine Part
|
90099-05254 |
— | ||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $1.92 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
