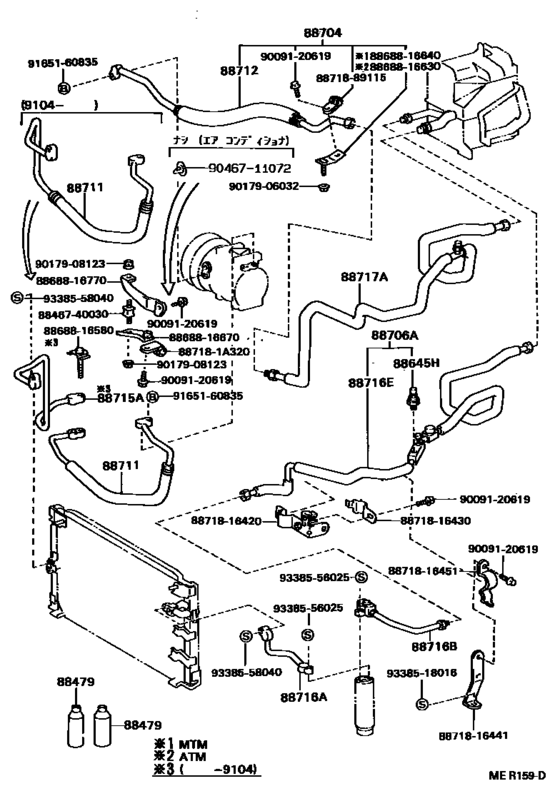

Heating & Air Conditioning - Cooler Piping ([09.1990 - 08.1992] (9009-9208)EL4#) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1992 - 08.1993] NL40..5F..(VITX,VX) ２５０Ｇ; NL40..5F..(AVE,AX,AXX,JOI,MOA) ２５０Ｇ; EL4#..EFI;NL40..4FC ２５０Ｇ |
90986-02004 |
— | ||
|
88479
|
88479
90986-02006
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[08.1993 - 09.1994] NL40..5F..(VITX,VX) ３００Ｇ; NL40..5F..(AVE,AX,AXX,JOI,MOA) ３００Ｇ; EL4#..EFI;NL40..4FC ３００Ｇ |
90986-02006 |
— | ||
| replacement | |||||
|
88479
|
88479
90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)[08.1993 - 09.1994] NL40..5F..(VITX,VX) ３００Ｇ; NL40..5F..(AVE,AX,AXX,JOI,MOA) ３００Ｇ; EL4#..EFI;NL40..4FC ３００Ｇ |
90986-02008 |
US $22.80 |
||
|
88479
|
88479
90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)[08.1993 - 09.1994] NL40..5F..(VITX,VX) ２００Ｇ; NL40..5F..(AVE,AX,AXX,JOI,MOA) ２００Ｇ; EL4#..EFI;NL40..4FC ２００Ｇ |
90986-02008 |
US $22.80 |
||
|
88645H
|
88645H
88645-10030
Switch, Pressure No.1
[09.1990 - 08.1993] EL4#;NL40..4FC |
88645-10030 |
— | ||
|
88645H
|
88645H
88645-20050
Switch, Pressure
[08.1993 - 09.1994] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88645-20050 |
— | ||
|
88704
|
88704
88704-16030 Hose Sub-Assy, Suction[09.1990 - 12.1991] EL4#..MTM |
88704-16030 |
US $205.30 |
||
| replacement | |||||
|
88704
|
88704
88704-16031 Hose Sub-Assy, Suction[09.1990 - 12.1991] EL4#..MTM |
88704-16031 |
US $192.19 |
||
|
88704
|
88704
88704-16031 Hose Sub-Assy, Suction[12.1991 - 08.1992] EL4#..MTM |
88704-16031 |
US $192.19 |
||
|
88704
|
88704
88704-16100 Hose Sub-Assy, Suction[08.1992 - 08.1993] EL43,45..5F..(SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) |
88704-16100 |
US $202.38 |
||
|
88704
|
88704
88704-16101 Hose Sub-Assy, Suction[08.1993 - 09.1994] EL43,45..5F..(SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) |
88704-16101 |
US $235.87 |
||
|
88704
|
88704
88704-16130 Hose Sub-Assy, Suction[08.1992 - 08.1993] EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC); EL43,45..5F..(SX,VE,VIT,VITX,VS,VX) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88704-16130 |
US $202.38 |
||
|
88704
|
88704
88704-16131 Hose Sub-Assy, Suction[08.1993 - 09.1994] EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC); EL43,45..5F..(SX,VE,VIT,VITX,VS,VX) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88704-16131 |
US $230.05 |
||
|
88706A
|
88706A
88706-16100 Tube Sub-Assy, Liquid, A[09.1990 - 12.1991] EL4# |
88706-16100 |
US $225.68 |
||
|
88706A
|
88706A
88706-16101 Tube Sub-Assy, Liquid, A[12.1991 - 08.1992] EL4# |
88706-16101 |
US $196.56 |
||
|
88706A
|
88706A
88706-16250 Tube Sub-Assy, Liquid, A[08.1992 - 08.1993] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88706-16250 |
US $138.32 |
||
|
88706A
|
88706A
88706-16251 Tube Sub-Assy, Liquid, A[08.1993 - 09.1994] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88706-16251 |
US $234.42 |
||
|
88706A
|
88706A
88706-16280 Tube Sub-Assy, Liquid, A[08.1992 - 08.1993] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC; EL43,45..SX,VE,VIT,VITX,VS,VX ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88706-16280 |
US $168.90 |
||
|
88706A
|
88706A
88706-16281 Tube Sub-Assy, Liquid, A[08.1993 - 09.1994] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC; EL43,45..SX,VE,VIT,VITX,VS,VX ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88706-16281 |
US $244.61 |
||
|
88711
|
88711
88711-16130 Hose, Cooler Refrigerant Discharge, No.1[09.1990 - 04.1991] EL4# |
88711-16130 |
US $173.26 |
||
|
88711
|
88711
88711-16160 Hose, Cooler Refrigerant Discharge, No.1[04.1991 - 08.1992] EL4# |
88711-16160 |
US $174.72 |
||
|
88711
|
88711
88711-16170 Hose, Cooler Refrigerant Discharge, No.1[08.1992 - 08.1993] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88711-16170 |
US $161.62 |
||
|
88711
|
88711
88711-16171 Hose, Cooler Refrigerant Discharge, No.1[08.1993 - 09.1994] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88711-16171 |
US $161.62 |
||
|
88711
|
88711
88711-16180 Hose, Cooler Refrigerant Discharge, No.1[08.1992 - 08.1993] EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC; EL43,45..SX,VE,VIT,VITX,VS,VX ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88711-16180 |
US $161.62 |
||
|
88711
|
88711
88711-16181 Hose, Cooler Refrigerant Discharge, No.1[08.1993 - 09.1994] EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC; EL43,45..SX,VE,VIT,VITX,VS,VX ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88711-16181 |
US $171.81 |
||
|
88712
|
88712
88712-16170 Hose, Cooler Refrigerant Suction, No.1[09.1990 - 12.1991] EL4#..MTM |
88712-16170 |
US $179.09 |
||
|
88712
|
88712
88712-16171 Hose, Cooler Refrigerant Suction, No.1[12.1991 - 08.1992] EL4#..MTM |
88712-16171 |
US $168.90 |
||
| replacement | |||||
|
88712
|
88712
88704-16031 Hose Sub-Assy, Suction[12.1991 - 08.1992] EL4#..MTM |
88704-16031 |
US $192.19 |
||
|
88712
|
88712
88712-16260 Hose, Cooler Refrigerant Suction, No.1[08.1992 - 08.1993] EL43,45..5F..(SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88712-16260 |
US $174.72 |
||
| replacement | |||||
|
88712
|
88712
88704-16100 Hose Sub-Assy, Suction[08.1992 - 08.1993] EL43,45..5F..(SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88704-16100 |
US $202.38 |
||
|
88712
|
88712
88712-16261 Hose, Cooler Refrigerant Suction, No.1[08.1993 - 09.1994] EL43,45..5F..(SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88712-16261 |
US $199.47 |
||
| replacement | |||||
|
88712
|
88712
88704-16101 Hose Sub-Assy, Suction[08.1993 - 09.1994] EL43,45..5F..(SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88704-16101 |
US $235.87 |
||
|
88712
|
88712
88712-16300 Hose, Cooler Refrigerant Suction, No.1[08.1992 - 08.1993] EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC); EL43,45..5F..(SX,VE,VIT,VITX,VS,VX) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88712-16300 |
US $192.19 |
||
| replacement | |||||
|
88712
|
88712
88704-16130 Hose Sub-Assy, Suction[08.1992 - 08.1993] EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC); EL43,45..5F..(SX,VE,VIT,VITX,VS,VX) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88704-16130 |
US $202.38 |
||
|
88712
|
88712
88712-16301 Hose, Cooler Refrigerant Suction, No.1[08.1993 - 09.1994] EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC); EL43,45..5F..(SX,VE,VIT,VITX,VS,VX) ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88712-16301 |
US $196.56 |
||
|
88715A
|
88715A
88715-16030 Pipe, Cooler Refrigerant Discharge, A[09.1990 - 04.1991] EL4#;NL40..4FC |
88715-16030 |
US $75.71 |
||
| replacement | |||||
|
88715A
|
88715A
88705-16010 Tube Sub-Assy, Discharge[09.1990 - 04.1991] EL4#;NL40..4FC |
88705-16010 |
US $115.02 |
||
|
88715A
|
88715A
88715-16031 Pipe, Cooler Refrigerant Discharge, A[08.1993 - 09.1994] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); NL40..4FC;EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
88715-16031 |
US $55.76 |
||
| replacement | |||||
|
88715A
|
88715A
88705-16011 Tube Sub-Assy, Discharge[08.1993 - 09.1994] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); NL40..4FC;EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
88705-16011 |
US $68.72 |
||
|
88716A
|
88716A
88716-16530 Pipe, Cooler Refrigerant Liquid, A[09.1990 - 08.1992] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88716-16530 |
US $39.60 |
||
| replacement | |||||
|
88716A
|
88716A
88716-1G300 Pipe, Cooler Refrigerant Liquid, A[09.1990 - 08.1992] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88716-1G300 |
US $39.60 |
||
|
88716A
|
88716A
88716-16531 Pipe, Cooler Refrigerant Liquid, A[08.1992 - 08.1993] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88716-16531 |
US $50.09 |
||
| replacement | |||||
|
88716A
|
88716A
88716-1G310 Pipe, Cooler Refrigerant Liquid, A[08.1992 - 08.1993] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88716-1G310 |
US $50.09 |
||
|
88716A
|
88716A
88716-16532 Pipe, Cooler Refrigerant Liquid, A[08.1993 - 09.1994] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88716-16532 |
US $33.49 |
||
|
88716B
|
88716B
88716-16570 Pipe, Cooler Refrigerant Liquid, B[09.1990 - 08.1992] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL4#;NL40..4FC |
88716-16570 |
US $50.09 |
||
|
88716B
|
88716B
88716-16730 Pipe, Cooler Refrigerant Liquid, B[08.1992 - 08.1993] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88716-16730 |
US $60.13 |
||
|
88716B
|
88716B
88716-16731 Pipe, Cooler Refrigerant Liquid, B[08.1993 - 09.1994] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88716-16731 |
US $65.23 |
||
|
88716B
|
88716B
88716-16840 Pipe, Cooler Refrigerant Liquid, B[08.1992 - 08.1993] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); EL43,45..SX,VE,VIT,VITX,VS,VX ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ; NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88716-16840 |
US $82.99 |
||
|
88716B
|
88716B
88716-16841 Pipe, Cooler Refrigerant Liquid, B[08.1993 - 09.1994] NL40..5F..(VITX,VX); NL40..5F..(AVE,AX,AXX,JOI,MOA); NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC; EL43,45..SX,VE,VIT,VITX,VS,VX ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88716-16841 |
US $52.27 |
||
|
88716E
|
88716E
88716-16700 Pipe, Cooler Refrigerant Liquid, E[09.1990 - 12.1991] EL4# |
88716-16700 |
US $138.32 |
||
|
88716E
|
88716E
88716-16701 Pipe, Cooler Refrigerant Liquid, E[12.1991 - 08.1992] EL4# |
88716-16701 |
US $117.94 |
||
|
88717A
|
88717A
88717-16130 Pipe, Cooler Refrigerant Suction, A[09.1990 - 12.1991] EL4# |
88717-16130 |
US $241.70 |
||
|
88717A
|
88717A
88717-16131 Pipe, Cooler Refrigerant Suction, A[12.1991 - 08.1992] EL4# |
88717-16131 |
US $215.49 |
||
|
88717A
|
88717A
88717-16200 Pipe, Cooler Refrigerant Suction, A[08.1992 - 08.1993] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88717-16200 |
US $202.38 |
||
|
88717A
|
88717A
88717-16201 Pipe, Cooler Refrigerant Suction, A[08.1993 - 09.1994] EL43,45..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾒ-ｶ ｵﾌﾟｼﾖﾝ |
88717-16201 |
US $193.65 |
||
|
88717A
|
88717A
88717-16220 Pipe, Cooler Refrigerant Suction, A[08.1992 - 08.1993] EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC; EL43,45..SX,VE,VIT,VITX,VS,VX ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88717-16220 |
US $123.76 |
||
|
88717A
|
88717A
88717-16221 Pipe, Cooler Refrigerant Suction, A[08.1993 - 09.1994] EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC; EL43,45..SX,VE,VIT,VITX,VS,VX ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
88717-16221 |
US $179.09 |
||
|
887181A320
|
887181A320
88718-1A320
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A320 |
— | ||
|
8846740030
|
8846740030
88467-40030
Cushion, Cooler Condenser, No.1
|
88467-40030 |
— | ||
|
8868816580
|
8868816580
88688-16580
Bracket, Cooler Diaphragm
|
88688-16580 |
— | ||
|
8868816630
|
8868816630
88688-16630
Bracket, Cooler Diaphragm
|
88688-16630 |
— | ||
|
8868816640
|
8868816640
88688-16640
Bracket, Cooler Diaphragm
|
88688-16640 |
— | ||
|
8868816670
|
8868816670
88688-16670
Bracket, Cooler Diaphragm
|
88688-16670 |
— | ||
|
8868816770
|
8868816770
88688-16770
Bracket, Cooler Diaphragm
|
88688-16770 |
— | ||
|
8871816420
|
8871816420
88718-16420
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16420 |
— | ||
|
8871816430
|
8871816430
88718-16430
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16430 |
— | ||
|
8871816441
|
8871816441
88718-16441
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16441 |
— | ||
|
8871816451
|
8871816451
88718-16451
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16451 |
— | ||
|
8871889115
|
8871889115
88718-89115
Pipe, Cooler Refrigerant Suction, No.2
|
88718-89115 |
— | ||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.98 |
||
|
9046711072
|
9046711072
90467-11072 New Genuine Part |
90467-11072 |
US $2.48 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
|
9338558040
|
9338558040
93385-58040
New Genuine Part
|
93385-58040 |
— | ||
