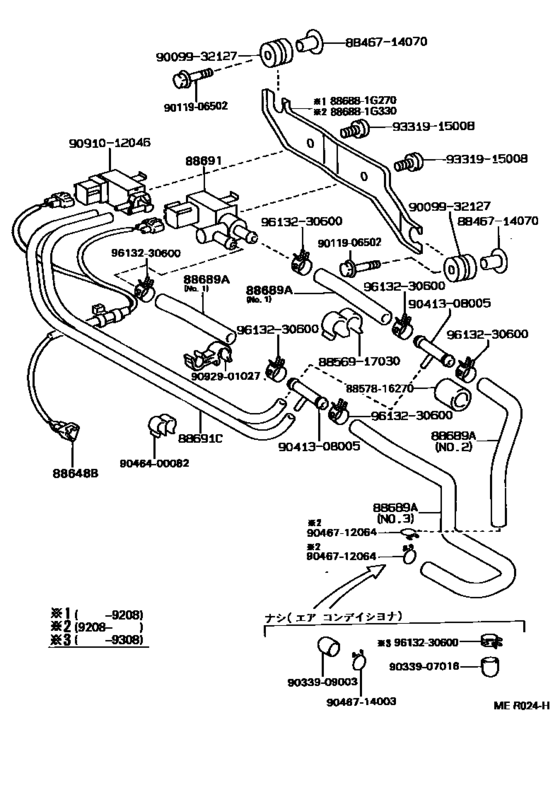

Heating & Air Conditioning - Vacuum Piping ([09.1990 - ] (9009- )EL4#) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88689A
|
88689A
88689-16050
Hose, Cooler Vacuum No.1
[09.1990 - 08.1992] EL4#..EFI ＮＯ．３ |
88689-16050 |
— | ||
|
88689A
|
88689A
88689-16051
Hose, Cooler Vacuum No.1
[08.1992 - 09.1994] EL4#..EFI ＮＯ．３ |
88689-16051 |
— | ||
|
88689A
|
88689A
88689-16060
Hose, Cooler Vacuum No.1
[09.1990 - 09.1994] EL4#..EFI ＮＯ．２ |
88689-16060 |
— | ||
|
88689A
|
88689A
88689-16070
Hose, Cooler Vacuum No.1
[09.1990 - 09.1994] EL4# 長さ＝８０,ＮＯ．１ |
88689-16070 |
— | ||
| replacement | |||||
|
88689A
|
88689A
88689-20390
Hose, Cooler Vacuum No.1
[09.1990 - 09.1994] EL4# 長さ＝８０,ＮＯ．１ |
88689-20390 |
— | ||
|
88691
|
88691
88691-17030
Valve, Magnet (For Idle Up Device)
[09.1990 - 09.1994] EL4# |
88691-17030 |
— | ||
|
88691C
|
88691C
90999-92002
Air Hose (300 mm)
[09.1990 - 09.1994] EL4# ＊Ｈ，Ｌ＝２３０，マーク＝＃＊; NL40..4FC ＊Ｈ，Ｌ＝１８０，マーク＝＃０ |
90999-92002 |
— | ||
|
88691C
|
88691C
95411-10022
Hose, Vacuum (For Idle Up Device), No.1
[09.1990 - 08.1992] EL4# ＊Ｈ，Ｌ＝２２０，マーク＝＃０ |
95411-10022 |
— | ||
|
886881G270
|
886881G270
88688-1G270
Bracket, Cooler Diaphragm
|
88688-1G270 |
— | ||
|
886881G330
|
886881G330
88688-1G330
Bracket, Cooler Diaphragm
|
88688-1G330 |
— | ||
|
8846714070
|
8846714070
88467-14070
Insulator (For Power Take-Off Cable Bracket)
|
88467-14070 |
— | ||
|
8856917030
|
8856917030
88569-17030
Clamp (For Idle Up Divice), No.1
|
88569-17030 |
— | ||
|
8857816270
|
8857816270
88578-16270
Packing, Cooling Unit, No.4
|
88578-16270 |
— | ||
| replacement | |||||
|
8857816270
|
8857816270
88578-26120
Packing, Cooling Unit, No.4
|
88578-26120 |
— | ||
|
9009932127
|
9009932127
90099-32127
Grommet (For Power Take-Off Cable Bracket)
|
90099-32127 |
— | ||
| replacement | |||||
|
9009932127
|
9009932127
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
US $1.54 |
||
|
9011906502
|
9011906502
90119-06502
New Genuine Part
|
90119-06502 |
— | ||
| replacement | |||||
|
9011906502
|
9011906502
90119-06330 Bolt |
90119-06330 |
US $1.28 |
||
|
9033907016
|
9033907016
90339-07016 Cap(For Intake Air Connector) |
90339-07016 |
US $2.56 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
US $3.36 |
||
|
9041308005
|
9041308005
90413-08005
Way, 3
|
90413-08005 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
|
9046712064
|
9046712064
90467-12064 Clip(For Actuator Hose) |
90467-12064 |
US $1.46 |
||
| replacement | |||||
|
9046712064
|
9046712064
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
|
9046714003
|
9046714003
90467-14003 Clip Or Clamp(For Ventilation Hose) |
90467-14003 |
US $2.08 |
||
|
9091012046
|
9091012046
90910-12046
Valve Assy, Vacuum Switching
|
90910-12046 |
— | ||
|
9092901027
|
9092901027
90929-01027
New Genuine Part
|
90929-01027 |
— | ||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.92 |
||
