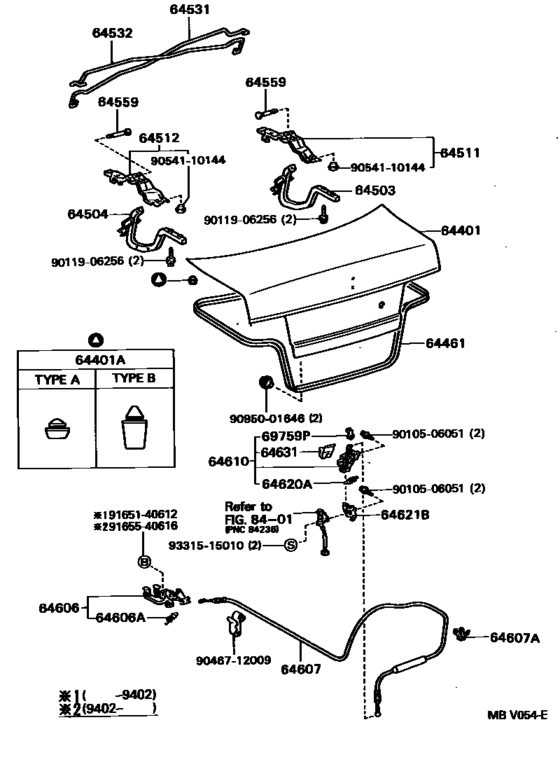

Luggage Compartment Door & Lock ([09.1990 - ] (9009- )4DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64401
|
64401
64401-16120 Panel Sub-Assy, Luggage Compartment Door[09.1990 - 04.1991] EL4#,NL40..4DS..(AVE,AXX,VE,VIT,VITX,VX); EL43..4DS..EFIS ﾅｼ(ﾘﾔ ｽﾎﾟｲﾗ); EL41,NL40..AX ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｶﾞ-ﾆﾂｼﾕ); EL41,NL40..4DS..JOI ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｶﾞ-ﾆﾂｼﾕ) |
64401-16120 |
US $398.94 |
||
| replacement | |||||
|
64401
|
64401
64401-16121 Panel Sub-Assy, Luggage Compartment Door[09.1990 - 04.1991] EL4#,NL40..4DS..(AVE,AXX,VE,VIT,VITX,VX); EL43..4DS..EFIS ﾅｼ(ﾘﾔ ｽﾎﾟｲﾗ); EL41,NL40..AX ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｶﾞ-ﾆﾂｼﾕ); EL41,NL40..4DS..JOI ｱﾘ(ﾗﾂｹﾞ-ｼﾞ ﾄﾞｱ ｶﾞ-ﾆﾂｼﾕ) |
64401-16121 |
US $435.34 |
||
|
64401
|
64401
64401-16121 Panel Sub-Assy, Luggage Compartment Door[04.1991 - 09.1994] EL4#,NL40..4DS..(AVE,AXX,VE,VIT,VITX,VX); EL43..4DS..EFIS ﾅｼ(ﾘﾔ ｽﾎﾟｲﾗ) |
64401-16121 |
US $435.34 |
||
|
64401
|
64401
64401-16130 Panel Sub-Assy, Luggage Compartment Door[09.1990 - 04.1991] EL43..4DS..EFIS; EL43,45,NL40..VE,VIT,VITX,VX ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
64401-16130 |
US $398.94 |
||
| replacement | |||||
|
64401
|
64401
64401-16131 Panel Sub-Assy, Luggage Compartment Door[09.1990 - 04.1991] EL43..4DS..EFIS; EL43,45,NL40..VE,VIT,VITX,VX ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
64401-16131 |
US $435.34 |
||
|
64401
|
64401
64401-16131 Panel Sub-Assy, Luggage Compartment Door[04.1991 - 08.1992] EL43,45,NL40..VE,VIT,VITX,VX ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
64401-16131 |
US $435.34 |
||
|
64401A
|
64401A
90541-06076
Cushion(For Luggage Compartment Door Panel)
[09.1990 - 09.1994] EL4#,NL40..4DS タイプ Ａ |
90541-06076 |
— | ||
| replacement | |||||
|
64401A
|
64401A
90541-06056 Cushion(For Luggage Compartment Door Panel)[09.1990 - 09.1994] EL4#,NL40..4DS タイプ Ａ |
90541-06056 |
US $3.20 |
||
|
64401A
|
64401A
90541-09043 Cushion(For Luggage Compartment Door Panel)[09.1990 - 09.1994] EL4#,NL40..4DS タイプ Ｂ |
90541-09043 |
from US $3.67 |
||
|
64461
|
64461
64461-16130
Weatherstrip, Luggage Compartment Door
[09.1990 - 09.1994] EL4#,NL40..4DS |
64461-16130 |
— | ||
|
64503
|
64503
64503-16020 Arm Sub-Assy, Luggage Compartment Door Hinge, Rh[09.1990 - 08.1992] EL4#,NL40..4DS |
64503-16020 |
US $32.18 |
||
|
64504
|
64504
64503-16020 Arm Sub-Assy, Luggage Compartment Door Hinge, Rh[11.1991 - 08.1992] EL4#,NL40..4DS |
64503-16020 |
US $32.18 |
||
|
64504
|
64504
64504-16010 Arm Sub-Assy, Luggage Compartment Door Hinge, Lh[09.1990 - 11.1991] EL4#,NL40..4DS |
64504-16010 |
US $32.18 |
||
| replacement | |||||
|
64504
|
64504
64503-16020 Arm Sub-Assy, Luggage Compartment Door Hinge, Rh[09.1990 - 11.1991] EL4#,NL40..4DS |
64503-16020 |
US $32.18 |
||
|
64511
|
64511
64511-16040 Support, Luggage Compartment Door Hinge, Rh[09.1990 - 09.1994] EL4#,NL40..4DS |
64511-16040 |
US $20.82 |
||
|
64512
|
64512
64512-16040 Support, Luggage Compartment Door Hinge, Lh[09.1990 - 09.1994] EL4#,NL40..4DS |
64512-16040 |
US $20.82 |
||
|
64531
|
64531
64531-16150 Bar, Luggage Door Hinge Torsion, Rh[09.1990 - 09.1994] EL4#,NL40..4DS..(AVE,AXX,VE,VIT,VITX,VX); EL43..4DS..EFIS ﾅｼ(ﾘﾔ ｽﾎﾟｲﾗ) |
64531-16150 |
US $23.30 |
||
|
64531
|
64531
64531-16160 Bar, Luggage Door Hinge Torsion, Rh[09.1990 - 08.1992] EL43,45,NL40..VE,VIT,VITX,VX ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
64531-16160 |
US $26.64 |
||
|
64532
|
64532
64532-16150 Bar, Luggage Door Hinge Torsion, Lh[09.1990 - 09.1994] EL4#,NL40..4DS..(AVE,AXX,VE,VIT,VITX,VX); EL43..4DS..EFIS ﾅｼ(ﾘﾔ ｽﾎﾟｲﾗ) |
64532-16150 |
US $23.30 |
||
|
64532
|
64532
64532-16160 Bar, Luggage Door Hinge Torsion, Lh[09.1990 - 08.1992] EL43,45,NL40..VE,VIT,VITX,VX ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
64532-16160 |
US $26.64 |
||
|
64559
|
64559
64559-30010 Pin, Luggage Door Hinge[09.1990 - 09.1994] EL4#,NL40..4DS |
64559-30010 |
US $3.93 |
||
|
64606
|
64606
64606-16050
Lever Sub-Assy, Luggage Door Lock Open
[09.1990 - 09.1994] EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ) |
64606-16050 |
— | ||
|
64606A
|
64606A
90506-09034 Spring, Tension(For Luggage Door Lock Open Lever)[09.1990 - 09.1994] EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ) |
90506-09034 |
US $2.97 |
||
|
64607
|
64607
64607-16250 Cable Sub-Assy, Luggage Door Lock Control[09.1990 - 09.1994] EL4#,NL40..4DS |
64607-16250 |
US $32.91 |
||
|
64607A
|
64607A
90959-01369 Clamp, Hood Lock Control Cable[09.1990 - 09.1994] EL4#,NL40..4DS |
90959-01369 |
from US $1.19 |
||
|
64610
|
64610
64610-16050 Lock Assy, Luggage Compartment Door[09.1990 - 06.1991] EL4#,NL40..4DS |
64610-16050 |
US $25.77 |
||
| replacement | |||||
|
64610
|
64610
64610-16062 Lock Assy, Luggage Compartment DoorLUGGAGE COMPARTMENT DOOR [09.1990 - 06.1991] EL4#,NL40..4DS |
64610-16062 |
US $25.48 |
||
|
64610
|
64610
64610-16051 Lock Assy, Luggage Compartment Door[06.1991 - 08.1992] EL4#,NL40..4DS |
64610-16051 |
US $25.48 |
||
| replacement | |||||
|
64610
|
64610
64610-16062 Lock Assy, Luggage Compartment DoorLUGGAGE COMPARTMENT DOOR [06.1991 - 08.1992] EL4#,NL40..4DS |
64610-16062 |
US $25.48 |
||
|
64610
|
64610
64610-16052 Lock Assy, Luggage Compartment Door[08.1992 - 09.1994] EL4#,NL40..4DS |
64610-16052 |
US $25.48 |
||
| replacement | |||||
|
64610
|
64610
64610-16062 Lock Assy, Luggage Compartment DoorLUGGAGE COMPARTMENT DOOR [08.1992 - 09.1994] EL4#,NL40..4DS |
64610-16062 |
US $25.48 |
||
|
64620A
|
64620A
90506-05001 Spring, Tension(For Lock)[09.1990 - 09.1994] EL4#,NL40..4DS |
90506-05001 |
US $1.05 |
||
|
64621B
|
64621B
64621-16020 Striker, Luggage Compartment Door Lock[12.1992 - 09.1994] EL4#,NL40..4DS |
64621-16020 |
from US $7.45 |
||
|
64621B
|
64621B
64621-22040 Striker Assy, Luggage Compartment Door[09.1990 - 12.1992] EL4#,NL40..4DS |
64621-22040 |
US $11.07 |
||
| replacement | |||||
|
64621B
|
64621B
64621-16020 Striker, Luggage Compartment Door Lock[09.1990 - 12.1992] EL4#,NL40..4DS |
64621-16020 |
from US $7.45 |
||
|
64631
|
64631
64631-16020 Protector, Luggage Door Lock[08.1992 - 09.1994] EL4#,NL40..4DS |
64631-16020 |
US $5.53 |
||
|
69759P
|
69759P
69759-16040 Snap, Door Lock Control Link[08.1992 - 09.1994] EL4#,NL40..4DS |
69759-16040 |
US $3.64 |
||
|
69759P
|
69759P
69759-20200 Snap, Front Door Lock Control Rod[09.1990 - 08.1992] EL4#,NL40..4DS |
69759-20200 |
US $3.04 |
||
|
9010506051
|
9010506051
90105-06051
New Genuine Part
|
90105-06051 |
— | ||
| replacement | |||||
|
9010506051
|
9010506051
90105-06168 BOLT WASHER BASED |
90105-06168 |
from US $0.76 |
||
|
9011906256
|
9011906256
90119-06256 BOLT |
90119-06256 |
US $1.60 |
||
|
9046712009
|
9046712009
90467-12009 Clamp, No.1(For Luggage Door Lock Control Cable) |
90467-12009 |
from US $3.16 |
||
|
9054110144
|
9054110144
90541-10144 Cushion, Luggage Compartment Door |
90541-10144 |
US $5.39 |
||
|
9095001646
|
9095001646
90950-01646 New Genuine Part |
90950-01646 |
US $1.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.12 |
||
