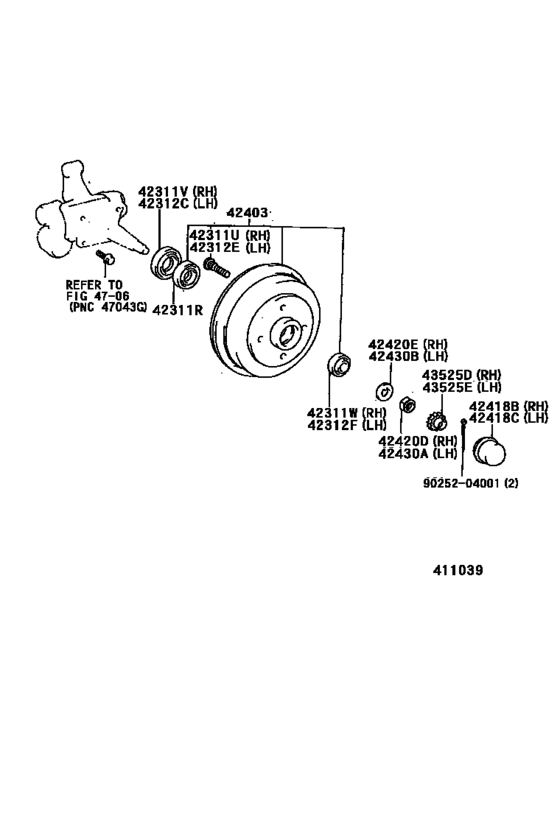

Rear Axle Shaft & Hub ([09.1990 - ] (9009- )EL41,43,NL40) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311R
|
42311R
90366-27001 Bearing (For Rear Axle Shaft Inner)[09.1990 - 09.1994] EL41,43,NL40 |
90366-27001 |
US $21.13 |
||
|
42311U
|
42311U
90942-02047 Bolt, Hub[09.1990 - 09.1994] EL4#,NL40 |
90942-02047 |
from US $3.68 |
||
|
42311V
|
42311V
90311-38037 Seal, Oil (For Rear Axle Shaft)[09.1990 - 09.1994] EL41,43,NL40 |
90311-38037 |
from US $5.60 |
||
|
42311W
|
42311W
90368-17017 Bearing (For Rear Axle Shaft Outer)[09.1990 - 09.1994] EL41,43,NL40 |
90368-17017 |
from US $24.47 |
||
|
42312C
|
42312C
90311-38037 Seal, Oil (For Rear Axle Shaft)[09.1990 - 09.1994] EL41,43,NL40 |
90311-38037 |
from US $5.60 |
||
|
42312E
|
42312E
90942-02047 Bolt, Hub[09.1990 - 09.1994] EL4#,NL40 |
90942-02047 |
from US $3.68 |
||
|
42312F
|
42312F
90368-17017 Bearing (For Rear Axle Shaft Outer)[09.1990 - 09.1994] EL41,43,NL40 |
90368-17017 |
from US $24.47 |
||
|
42403
|
42403
42043-10010 Drum Sub-Assy, Rear Brake[09.1990 - 07.1992] EL41,43,NL40 ｱﾘ(*66) |
42043-10010 |
US $251.89 |
||
| replacement | |||||
|
42403
|
42403
42043-19015 Drum Sub-Assy, Rear Brake[09.1990 - 07.1992] EL41,43,NL40 ｱﾘ(*66) |
42043-19015 |
US $209.66 |
||
|
42403
|
42403
42043-10030 Drum Sub-Assy, Rear Brake[07.1992 - 09.1994] EL41,43,NL40 ｱﾘ(*66) |
42043-10030 |
US $209.66 |
||
| replacement | |||||
|
42403
|
42403
42043-19015 Drum Sub-Assy, Rear Brake[07.1992 - 09.1994] EL41,43,NL40 ｱﾘ(*66) |
42043-19015 |
US $209.66 |
||
|
42403
|
42403
42403-10020 Drum Sub-Assy, Rear Brake[09.1990 - 07.1992] EL41,43,NL40 |
42403-10020 |
US $243.15 |
||
| replacement | |||||
|
42403
|
42403
42043-19015 Drum Sub-Assy, Rear Brake[09.1990 - 07.1992] EL41,43,NL40 |
42043-19015 |
US $209.66 |
||
|
42403
|
42403
42403-10060 Drum Sub-Assy, Rear Brake[07.1992 - 08.1992] EL41,43,NL40 |
42403-10060 |
US $206.75 |
||
| replacement | |||||
|
42403
|
42403
42043-19015 Drum Sub-Assy, Rear Brake[07.1992 - 08.1992] EL41,43,NL40 |
42043-19015 |
US $209.66 |
||
|
42403
|
42403
42403-19015 Drum Sub-Assy, Rear Brake[08.1992 - 09.1994] EL41,43,NL40 |
42403-19015 |
US $208.21 |
||
| replacement | |||||
|
42403
|
42403
42043-19015 Drum Sub-Assy, Rear Brake[08.1992 - 09.1994] EL41,43,NL40 |
42043-19015 |
US $209.66 |
||
|
42418B
|
42418B
43514-10030 Cap, Rear Hub Grease[09.1990 - 09.1994] EL41,43,NL40 |
43514-10030 |
from US $3.45 |
||
|
42418C
|
42418C
43514-10030 Cap, Rear Hub Grease[09.1990 - 09.1994] EL41,43,NL40 |
43514-10030 |
from US $3.45 |
||
|
42420D
|
42420D
90170-16137
Nut, Hexagon (For Drive Pinion Extension Shaft)
[09.1990 - 01.1992] EL41,43,NL40 |
90170-16137 |
— | ||
| replacement | |||||
|
42420D
|
42420D
94125-41600 Nut (For Rear Axle Shaft)[09.1990 - 01.1992] EL41,43,NL40 |
94125-41600 |
from US $1.44 |
||
|
42420D
|
42420D
94125-41600 Nut (For Rear Axle Shaft)[01.1992 - 09.1994] EL41,43,NL40 |
94125-41600 |
from US $1.44 |
||
|
42420E
|
42420E
90214-16010 Washer, Claw (For Rear Axle Shaft)[09.1990 - 09.1994] EL41,43,NL40 |
90214-16010 |
from US $1.64 |
||
|
42430A
|
42430A
90170-16137
Nut, Hexagon (For Drive Pinion Extension Shaft)
[09.1990 - 01.1992] EL41,43,NL40 |
90170-16137 |
— | ||
| replacement | |||||
|
42430A
|
42430A
94125-41600 Nut (For Rear Axle Shaft)[09.1990 - 01.1992] EL41,43,NL40 |
94125-41600 |
from US $1.44 |
||
|
42430A
|
42430A
94125-41600 Nut (For Rear Axle Shaft)[01.1992 - 09.1994] EL41,43,NL40 |
94125-41600 |
from US $1.44 |
||
|
42430B
|
42430B
90214-16010 Washer, Claw (For Rear Axle Shaft)[09.1990 - 09.1994] EL41,43,NL40 |
90214-16010 |
from US $1.64 |
||
|
43525D
|
43525D
43525-20011 Cap, Front Wheel Adjusting Lock[09.1990 - 09.1994] EL41,43,NL40 |
43525-20011 |
from US $3.68 |
||
|
43525E
|
43525E
43525-20011 Cap, Front Wheel Adjusting Lock[09.1990 - 09.1994] EL41,43,NL40 |
43525-20011 |
from US $3.68 |
||
|
9025204001
|
9025204001
90252-04001 CLIP |
90252-04001 |
US $0.16 |
||
