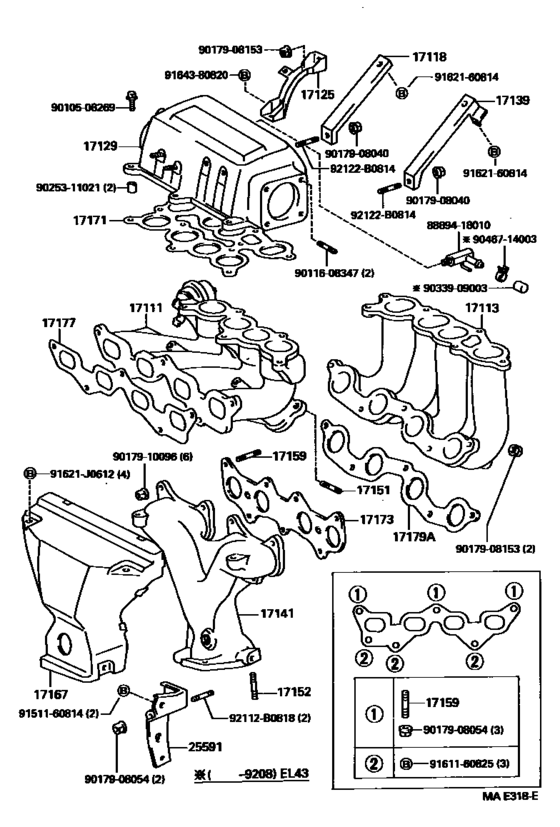

Manifold ([09.1990 - ] (9009- )5EFHE) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL43
- grade
- VZ
- ENGINE
- 5EFHE
- TRANSMISSION
- ATM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 4FC
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
- Fuel Induction
- EFIS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-11290 Manifold, Intake[09.1990 - 09.1994] 5EFHE..EL43 |
17101-11290 |
US $460.10 |
||
|
17113
|
17113
17113-11080 Pipe, Intake[09.1990 - 09.1994] 5EFHE..EL43 |
17113-11080 |
US $308.67 |
||
|
17118
|
17118
17118-11190 Stay, Manifold[09.1990 - 09.1994] 5EFHE..EL43 |
17118-11190 |
US $23.88 |
||
|
17125
|
17125
17125-11040 Stay, Surge Tank, No.1[09.1990 - 09.1994] 5EFHE..EL43 |
17125-11040 |
US $16.45 |
||
|
17129
|
17129
17109-11010 Tank, Intake Air Surge[09.1990 - 09.1994] 5EFHE..EL43 |
17109-11010 |
US $334.88 |
||
|
17139
|
17139
17139-11010 Stay, Manifold, No.2[09.1990 - 09.1994] 5EFHE..EL43 |
17139-11010 |
US $23.88 |
||
|
17141
|
17141
17141-11201
Manifold, Exhaust
[09.1990 - 09.1994] 5EFHE..EL43 |
17141-11201 |
— | ||
|
17151
|
17151
92112-60820 Bolt, Stud(For Manifold To Carburetor)[08.1992 - 09.1994] 5EFHE..EL43 |
92112-60820 |
US $2.08 |
||
|
17151
|
17151
92122-60820 Bolt, Stud(For Water Outlet)[09.1990 - 08.1992] 5EFHE..EL43 |
92122-60820 |
US $2.97 |
||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[09.1990 - 09.1994] 5EFHE..EL43 |
90116-10087 |
from US $2.40 |
||
|
17159
|
17159
92122-61025 Bolt, Stud(For Manifold To Cylinder Head)[09.1990 - 09.1994] 4EFE,5EF#..EL4# EXHAUST MANIFOLD |
92122-61025 |
US $3.68 |
||
|
17159
|
17159
92132-60825 Bolt, Stud(For Manifold To Cylinder Head)[09.1990 - 09.1994] 4EFE,5EF#..EL4# INTAKE MANIFOLD |
92132-60825 |
US $3.20 |
||
|
17167
|
17167
17167-11240
Insulator, Exhaust Manifold Heat, No.1
[09.1990 - 09.1994] 5EFHE..EL43 |
17167-11240 |
— | ||
| replacement | |||||
|
17167
|
17167
17167-11241
Insulator, Exhaust Manifold Heat, No.1
[09.1990 - 09.1994] 5EFHE..EL43 |
17167-11241 |
— | ||
|
17171
|
17171
17171-11010
Gasket, Intake To Exhaust Manifold
[09.1990 - 09.1994] 5EFHE..EL43 |
17171-11010 |
— | ||
|
17173
|
17173
17173-11050 Gasket, Exhaust Manifold To Head[09.1990 - 09.1994] 5EF#..EL43,45 |
17173-11050 |
US $19.22 |
||
|
17177
|
17177
17177-11020
Gasket, Intake Manifold To Head, No.1
[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
17177-11020 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-11021
Gasket, Intake Manifold To Head, No.1
[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
17177-11021 |
— | ||
|
17179A
|
17179A
17179-11010
Gasket, Intake Manifold, No.2
[09.1990 - 09.1994] 5EFHE..EL43 |
17179-11010 |
— | ||
|
25591
|
25591
25591-11050 Bracket, Manifold Support[09.1990 - 09.1994] 5EFHE..EL43 |
25591-11050 |
US $24.17 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
92112B0818
|
92112B0818
92112-B0818 Bolt, Stud(For Egr Valve) |
92112-B0818 |
US $2.62 |
||
|
92122B0814
|
92122B0814
92122-B0814 New Genuine Part |
92122-B0814 |
US $2.04 |
||
|
8889418010
|
8889418010
88894-18010
Joint, No.1 (For Idle Up Divice)
|
88894-18010 |
— | ||
|
9010508269
|
9010508269
90105-08269 New Genuine Part |
90105-08269 |
US $1.89 |
||
|
9011608347
|
9011608347
90116-08347 New Genuine Part |
90116-08347 |
US $1.31 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.60 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910096
|
9017910096
90179-10096 New Genuine Part |
90179-10096 |
US $2.56 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.50 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
from US $3.36 |
||
|
9046714003
|
9046714003
90467-14003 Clip Or Clamp(For Ventilation Hose) |
90467-14003 |
US $2.08 |
||
|
9151160814
|
9151160814
91511-60814
New Genuine Part
|
91511-60814 |
— | ||
| replacement | |||||
|
9151160814
|
9151160814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9162160814
|
9162160814
91621-60814
Bolt (For Transmission Control Cable Bracket)
|
91621-60814 |
— | ||
| replacement | |||||
|
9162160814
|
9162160814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.74 |
||
|
9164380820
|
9164380820
91643-80820 New Genuine Part |
91643-80820 |
US $1.75 |
||
| replacement | |||||
|
9164380820
|
9164380820
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.82 |
||
