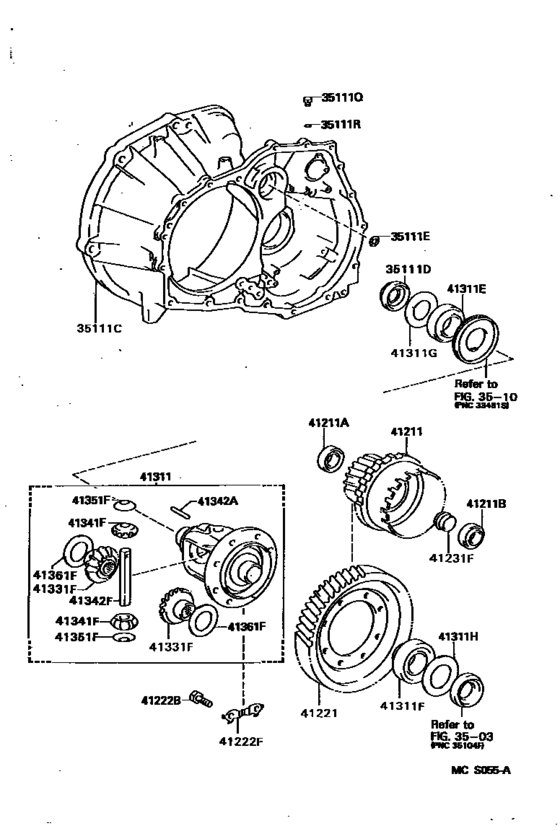

Front Axle Housing & Differential ([09.1994 - ] A242L,A241E (9409- )EL53,NL50..4FC) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- EL53
- grade
- JOI
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 4FC
- No.of Doors
- 4DS
- Vehicle Model
- Tersel
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35111C
|
35111C
35105-10014 Housing, Transaxle[09.1994 - 06.1995] EL53..4FC |
35105-10014 |
US $764.40 |
||
| replacements | |||||
|
35111C
|
35111C
90119-10223 Bolt(For Transaxle & Engine Setting)[09.1994 - 06.1995] EL53..4FC |
90119-10223 |
US $1.92 |
||
|
35111C
|
35111C
35105-10015 Housing, Transaxle[09.1994 - 06.1995] EL53..4FC |
35105-10015 |
US $768.77 |
||
|
35111C
|
35111C
35105-10015 Housing, Transaxle[06.1995 - 07.1999] EL53..4FC |
35105-10015 |
US $768.77 |
||
|
35111D
|
35111D
90311-34012 Oil Seal[09.1994 - 02.1998] EL53,NL50..4FC |
90311-34012 |
US $5.60 |
||
|
35111D
|
35111D
90311-34023 Seal, Type T Oil, No.2(For Cvt)[02.1998 - 07.1999] EL53,NL50..4FC |
90311-34023 |
from US $4.32 |
||
|
35111E
|
35111E
90210-13002 Washer, Seal (For Front Transaxle Housing)[09.1994 - 07.1999] EL53,55,NL50..4FC |
90210-13002 |
US $4.08 |
||
|
35111Q
|
35111Q
90341-08001 Plug, Transaxle Case, No.1[09.1994 - 07.1999] EL53,55,NL50..4FC |
90341-08001 |
from US $1.58 |
||
|
35111R
|
35111R
90301-06196 O Ring, Transaxle Case, No.1[09.1994 - 07.1999] EL53,55,NL50..4FC |
90301-06196 |
from US $2.52 |
||
|
41211
|
41211
41206-20030 Pinion, Differential Drive[09.1994 - 07.1999] EL53..4FC |
41206-20030 |
US $336.34 |
||
|
41211A
|
41211A
90366-30019 Bearing (For Rear Drive Pinion Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC |
90366-30019 |
US $39.17 |
||
|
41211B
|
41211B
90366-30020 Bearing (For Rear Drive Pinion Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC |
90366-30020 |
US $40.91 |
||
|
41221
|
41221
41221-20230 Gear, Front Differential Ring[09.1994 - 07.1999] EL53..4FC |
41221-20230 |
US $155.79 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[09.1994 - 01.1995] EL55;EL51,53,NL50..ATM |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-12050 Plate, Rear Differential Ring Gear Set Bolt Lock[09.1994 - 07.1999] EL5#,NL50..ATM |
41222-12050 |
US $3.49 |
||
|
41231F
|
41231F
41231-12030
Spacer, Rear Differential Drive Pinion Bearing
[09.1994 - 07.1999] EL53,NL50..4FC |
41231-12030 |
— | ||
|
41311
|
41311
41301-17021
Case Sub-Assy, Rear Differential
[09.1994 - 07.1999] EL53,NL50..4FC |
41301-17021 |
— | ||
|
41311E
|
41311E
90368-38002 Bearing, Tapered Roller (For Front Differential Case Front)[09.1994 - 03.1997] EL51,53,NL50..ATM |
90368-38002 |
US $15.72 |
||
|
41311F
|
41311F
90368-38010 Bearing(For Rear Differential Case)[09.1994 - 07.1999] EL5#,NL50..4F,4FC,5F |
90368-38010 |
from US $25.38 |
||
|
41311G
|
41311G
90201-41010 Washer, Plate (For Front Differential Case Front)[09.1994 - 07.1999] EL51,53,NL50..ATM 厚さ＝２．００ |
90201-41010 |
US $5.39 |
||
|
41311H
|
41311H
90201-41024 Washer, Plate (For Front Differential Case Front)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．００，マーク Ｖ |
90201-41024 |
US $4.08 |
||
|
41311H
|
41311H
90201-41025 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．３５，マーク Ａ |
90201-41025 |
US $6.84 |
||
|
41311H
|
41311H
90201-41026 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．４０，マーク Ｂ |
90201-41026 |
US $6.84 |
||
|
41311H
|
41311H
90201-41027 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．４５，マーク Ｃ |
90201-41027 |
US $6.84 |
||
|
41311H
|
41311H
90201-41028 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．５０，マーク Ｄ |
90201-41028 |
US $8.15 |
||
|
41311H
|
41311H
90201-41029 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．５５，マーク Ｅ |
90201-41029 |
US $8.15 |
||
|
41311H
|
41311H
90201-41030 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．６０，マーク Ｆ |
90201-41030 |
US $8.15 |
||
|
41311H
|
41311H
90201-41031 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．６５，マーク Ｇ |
90201-41031 |
US $8.15 |
||
|
41311H
|
41311H
90201-41032 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．７０，マーク Ｈ |
90201-41032 |
US $5.24 |
||
|
41311H
|
41311H
90201-41033 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．７５，マーク Ｊ |
90201-41033 |
US $8.15 |
||
|
41311H
|
41311H
90201-41034 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．８０，マーク Ｋ |
90201-41034 |
US $8.15 |
||
|
41311H
|
41311H
90201-41035 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．８５，マーク Ｌ |
90201-41035 |
US $8.15 |
||
|
41311H
|
41311H
90201-41036 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．９０，マーク Ｍ |
90201-41036 |
US $8.15 |
||
|
41311H
|
41311H
90201-41039 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．１０，マーク Ｑ |
90201-41039 |
US $6.84 |
||
|
41311H
|
41311H
90201-41040 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．１５，マーク Ｒ |
90201-41040 |
US $6.84 |
||
|
41311H
|
41311H
90201-41041 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．２０，マーク Ｓ |
90201-41041 |
US $6.84 |
||
|
41311H
|
41311H
90201-41042 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．２５，マーク Ｔ |
90201-41042 |
US $6.84 |
||
|
41311H
|
41311H
90201-41043 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．３０，マーク Ｕ |
90201-41043 |
US $6.84 |
||
|
41311H
|
41311H
90201-41044 Washer, Plate (For Front Differential Case Rear)[09.1994 - 07.1999] EL53,55,NL50..4FC 厚さ＝２．０５，マーク Ｗ |
90201-41044 |
US $4.08 |
||
|
41331F
|
41331F
41331-12011 Gear, Rear Differential Side[09.1994 - 07.1999] EL55;EL51,53,NL50..ATM |
41331-12011 |
US $38.26 |
||
|
41341F
|
41341F
41341-12030 Pinion, Rear Differential[09.1994 - 07.1999] EL55;EL51,53,NL50..ATM |
41341-12030 |
US $24.98 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[09.1994 - 07.1999] EL55;EL51,53,NL50..ATM |
90250-06058 |
from US $2.09 |
||
|
41342F
|
41342F
41342-12140 Shaft, Front Differential Pinion, No.1[09.1994 - 07.1999] EL55;EL51,53,NL50..ATM |
41342-12140 |
US $15.24 |
||
|
41351F
|
41351F
41351-12020 Washer, Rear Differential Pinion Thrust[09.1994 - 07.1999] EL55;EL51,53,NL50..ATM |
41351-12020 |
from US $1.69 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[09.1994 - 08.1997] EL53,55,NL50..4FC 厚さ＝０．９５ |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[09.1994 - 08.1997] EL53,55,NL50..4FC 厚さ＝１．００ |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[09.1994 - 08.1997] EL53,55,NL50..4FC 厚さ＝１．０５ |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[09.1994 - 08.1997] EL53,55,NL50..4FC 厚さ＝１．１０ |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[09.1994 - 08.1997] EL53,55,NL50..4FC 厚さ＝１．１５ |
41361-17050 |
US $3.32 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[09.1994 - 08.1997] EL53,55,NL50..4FC 厚さ＝１．２０ |
41361-17060 |
US $2.62 |
||
