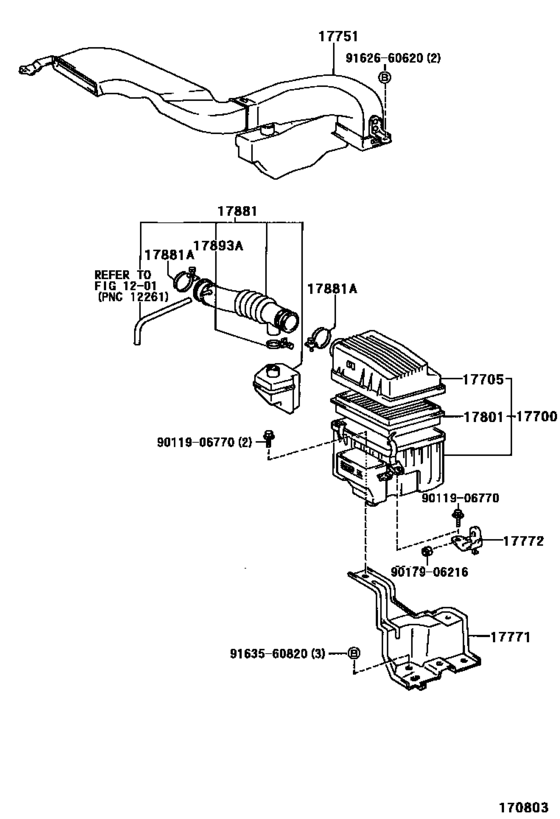

Air Cleaner ([09.1994 - ] (9409- )4EFE,5EFE) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- EL55
- grade
- AX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-11860 Cleaner Assy, Air[09.1994 -] 4EFE,5EFE..EL5# |
17700-11860 |
US $336.34 |
||
| replacement | |||||
|
17700
|
17700
17700-11861 Cleaner Assy, Air[09.1994 -] 4EFE,5EFE..EL5# |
17700-11861 |
US $336.34 |
||
|
17705
|
17705
17705-11490
Cap Sub-Assy, Air Cleaner
[09.1994 - 05.1995] 4EFE,5EFE..EL5# |
17705-11490 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-11570
Cap Sub-Assy, Air Cleaner
[09.1994 - 05.1995] 4EFE,5EFE..EL5# |
17705-11570 |
— | ||
|
17705
|
17705
17705-11570
Cap Sub-Assy, Air Cleaner
[05.1995 -] 4EFE,5EFE..EL5# |
17705-11570 |
— | ||
|
17751
|
17751
17750-11030 Inlet, Air Cleaner, No.1[09.1994 -] 4EFE,5EFE..EL5# |
17750-11030 |
US $125.22 |
||
|
17771
|
17771
17771-11130
Bracket, Air Cleaner Inlet Duct
[09.1994 -] 4EFE,5EFE..EL5# |
17771-11130 |
— | ||
|
17772
|
17772
17772-11030
Bracket, Intake Air Connector, No.2
[09.1994 -] 4EFE,5EFE..EL5#; 1NT..NL50 |
17772-11030 |
— | ||
|
17801
|
17801
17801-11050 Element Sub-Assy, Air Cleaner Filter[09.1994 -] 4EFE,5EFE..EL5# |
17801-11050 |
from US $34.65 |
||
|
17881
|
17881
17880-11230
Hose, Air Cleaner, No.1
[09.1994 - 08.1996] 4EFE,5EFE..EL5# |
17880-11230 |
— | ||
|
17881
|
17881
17880-11231 Hose, Air Cleaner, No.1[08.1996 -] 4EFE,5EFE..EL5# |
17880-11231 |
US $59.06 |
||
|
17881A
|
17881A
96111-10690 Clamp, Hose[09.1994 -] 4EFE,5EFE..EL5#; 1NT..NL50 |
96111-10690 |
from US $2.56 |
||
|
17893A
|
17893A
96111-10380 Clamp Or Clip, Hose(For Radiator Inlet)[09.1994 -] 4EFE,5EFE..EL5# |
96111-10380 |
US $2.24 |
||
|
9011906770
|
9011906770
90119-06770 New Genuine Part |
90119-06770 |
US $1.75 |
||
| replacement | |||||
|
9011906770
|
9011906770
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.09 |
||
|
9017906216
|
9017906216
90179-06216
Direct
|
90179-06216 |
— | ||
| replacement | |||||
|
9017906216
|
9017906216
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9162660620
|
9162660620
91626-60620 New Genuine Part |
91626-60620 |
US $1.60 |
||
| replacement | |||||
|
9162660620
|
9162660620
91621-B0616 Bolt |
91621-B0616 |
from US $0.94 |
||
|
9163560820
|
9163560820
91635-60820 BOLTWWASHER |
91635-60820 |
US $1.75 |
||
| replacement | |||||
|
9163560820
|
9163560820
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.08 |
||
