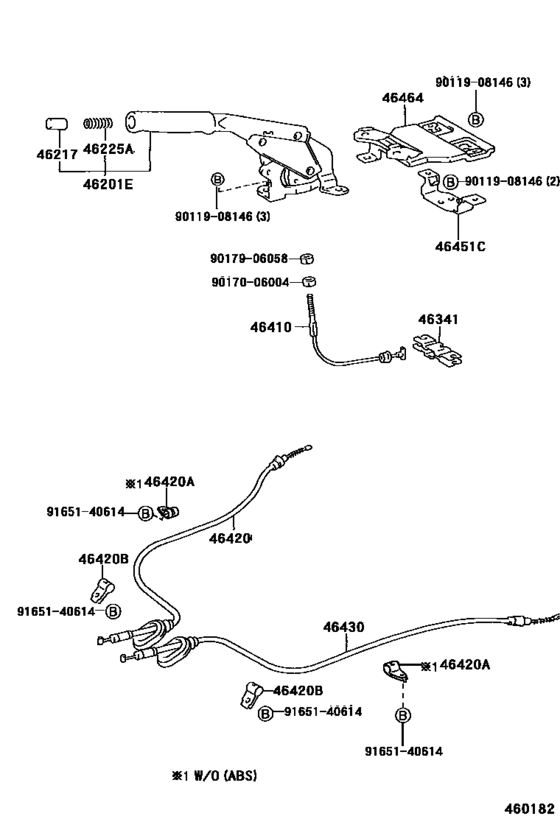

Parking Brake & Cable ([09.1994 - ] (9409- )EL55) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- EL55
- grade
- AX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46201E
|
46201E
46201-16080-B0 Lever Sub-Assy, Parking Brake[09.1994 - 08.1995] EL55 BLUISH GRAY,TRIM1# |
46201-16080-B0 |
US $62.17 |
||
| replacement | |||||
|
46201E
|
46201E
46201-16100-B1 Lever Sub-Assy, Parking Brake[09.1994 - 08.1995] EL55 BLUISH GRAY,TRIM1# |
46201-16100-B1 |
US $62.17 |
||
|
46201E
|
46201E
46201-16080-B1 Lever Sub-Assy, Parking Brake[08.1995 - 08.1996] EL55 SHADOW GRAY,TRIM1# |
46201-16080-B1 |
US $62.17 |
||
| replacement | |||||
|
46201E
|
46201E
46201-16100-B0 Lever Sub-Assy, Parking Brake[08.1995 - 08.1996] EL55 SHADOW GRAY,TRIM1# |
46201-16100-B0 |
US $62.17 |
||
|
46201E
|
46201E
46201-16100-B0 Lever Sub-Assy, Parking Brake[08.1996 -] EL55 SHADOW GRAY,TRIM1# |
46201-16100-B0 |
US $62.17 |
||
|
46201E
|
46201E
46201-16100-E1 Lever Sub-Assy, Parking Brake[12.1997 -] EL55 SANDAL WOOD,TRIM4# |
46201-16100-E1 |
US $62.17 |
||
|
46217
|
46217
46217-12020-B2 Knob, Parking Brake Release Rod[08.1995 - 08.1996] EL5#,NL50 SHADOW GRAY,TRIM1# |
46217-12020-B2 |
US $3.06 |
||
|
46217
|
46217
46217-12020-B3 Knob, Parking Brake Release Rod[09.1994 - 08.1995] EL5#,NL50 BLUISH GRAY,TRIM1# |
46217-12020-B3 |
US $3.35 |
||
| replacement | |||||
|
46217
|
46217
46217-16030-B1 Knob, Parking Brake Release Rod[09.1994 - 08.1995] EL5#,NL50 BLUISH GRAY,TRIM1# |
46217-16030-B1 |
US $3.35 |
||
|
46217
|
46217
46217-16030-B0 Knob, Parking Brake Release Rod[08.1996 -] EL5#,NL50 SHADOW GRAY,TRIM1# |
46217-16030-B0 |
US $3.20 |
||
|
46217
|
46217
46217-16030-E1 Knob, Parking Brake Release Rod[12.1997 -] EL5#,NL50 SANDAL WOOD,TRIM4# |
46217-16030-E1 |
US $3.35 |
||
|
46225A
|
46225A
90501-10069 Spring, Compression(For Parking Brake Pawl Rod)[09.1994 -] EL5#,NL50 |
90501-10069 |
US $1.31 |
||
|
46341
|
46341
46341-33010 Equalizer Sub-Assy, Parking Brake[09.1994 -] EL55 |
46341-33010 |
US $7.13 |
||
|
46410
|
46410
46410-16040 Cable Assy, Parking Brake, No.1[09.1994 -] EL55 |
46410-16040 |
US $29.41 |
||
|
46420
|
46420
46420-16190 Cable Assy, Parking Brake, No.2[09.1994 - 07.1999] EL55 |
46420-16190 |
US $62.32 |
||
|
46420A
|
46420A
90461-10641
Clamp, No.1(For Parking Brake Cable)
[09.1994 - 08.1996] EL5#,NL50 |
90461-10641 |
— | ||
|
46420B
|
46420B
90949-01585
Clamp, No.2(For Parking Brake Cable)
[09.1994 - 08.1996] EL5#,NL50 |
90949-01585 |
— | ||
|
46430
|
46430
46430-16190 Cable Assy, Parking Brake, No.3[09.1994 -] EL55 |
46430-16190 |
US $62.32 |
||
|
46451C
|
46451C
46451-10020 Bracket, Parking Brake Cable Support[09.1994 -] EL55 |
46451-10020 |
US $18.05 |
||
|
46464
|
46464
46464-16030 Plate, Cable Clamp Support[09.1994 -] EL55 |
46464-16030 |
US $31.60 |
||
|
9011908146
|
9011908146
90119-08146
Bolt(For Parking Brake Setting)
|
90119-08146 |
— | ||
|
9017006004
|
9017006004
90170-06004 Nut, Wire Adjusting, No.1 |
90170-06004 |
US $2.08 |
||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
