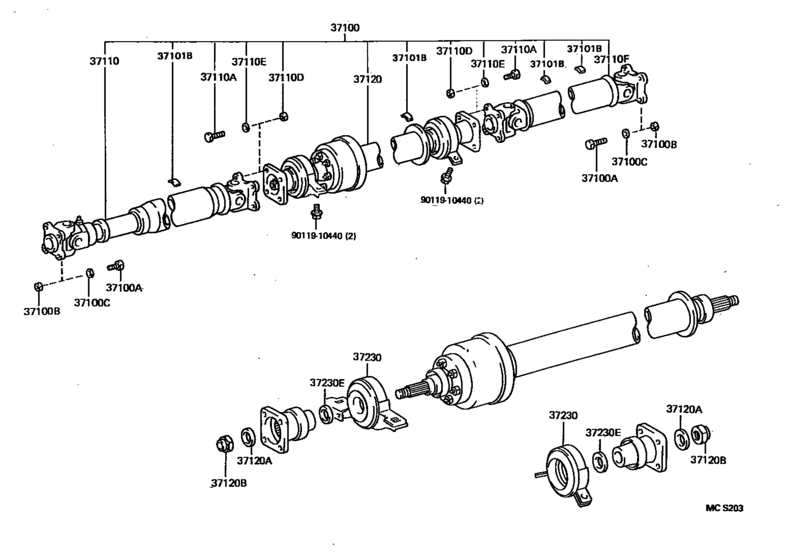

Propeller Shaft & Universal Joint ([09.1994 - ] (9409- )EL55) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- EL55
- grade
- AX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-16040 Shaft Assy, Propeller W/center Bearing[09.1994 -] EL55 |
37100-16040 |
US $2,460.64 |
||
|
37100A
|
37100A
90105-08244 Bolt, No.1 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 |
90105-08244 |
from US $1.60 |
||
|
37100B
|
37100B
90179-08197 Nut, No.1 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 |
90179-08197 |
from US $0.92 |
||
|
37100C
|
37100C
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 |
94512-00800 |
from US $0.76 |
||
|
37101B
|
37101B
90937-01184 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ４Ｇ，厚さ＝１．６ |
90937-01184 |
US $1.31 |
||
|
37101B
|
37101B
90937-01191 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ８Ｇ，厚さ＝１．６ |
90937-01191 |
US $2.18 |
||
|
37101B
|
37101B
90937-01192 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １２Ｇ，厚さ＝４．５ |
90937-01192 |
US $2.77 |
||
|
37101B
|
37101B
90937-01193 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １６Ｇ，厚さ＝４．５ |
90937-01193 |
US $2.91 |
||
|
37101B
|
37101B
90937-01194 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ２０Ｇ，厚さ＝４．５ |
90937-01194 |
US $3.06 |
||
|
37101B
|
37101B
90937-01198 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ２４Ｇ，厚さ＝４．５，長さ＝２５．１ |
90937-01198 |
US $3.06 |
||
|
37101B
|
37101B
90937-01199 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ２８Ｇ，厚さ＝６，長さ＝２２．７ |
90937-01199 |
US $3.68 |
||
|
37101B
|
37101B
90937-01200 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ３２Ｇ，厚さ＝６，長さ＝２４．３ |
90937-01200 |
US $4.95 |
||
|
37101B
|
37101B
90937-01268 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ３６Ｇ，長さ＝２３．１，厚さ＝８．０ |
90937-01268 |
US $4.37 |
||
|
37101B
|
37101B
90937-01269 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ４０Ｇ，長さ＝２５．６ |
90937-01269 |
US $4.37 |
||
|
37101B
|
37101B
90937-01270 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ４４Ｇ，長さ＝２２．６ |
90937-01270 |
US $4.37 |
||
|
37101B
|
37101B
90937-01271 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ４８Ｇ，長さ＝２４．６ |
90937-01271 |
US $4.37 |
||
|
37101B
|
37101B
90937-01272 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ５２Ｇ，長さ＝２６．７ |
90937-01272 |
US $4.37 |
||
|
37101B
|
37101B
90937-01273 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ５６Ｇ，長さ＝２８．７ |
90937-01273 |
US $4.37 |
||
|
37101B
|
37101B
90937-01274 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ６０Ｇ，長さ＝２８．７ |
90937-01274 |
US $4.37 |
||
|
37101B
|
37101B
90937-01338 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ３Ｇ，厚さ＝１．０，長さ＝１９．１ |
90937-01338 |
US $1.60 |
||
|
37101B
|
37101B
90937-01339 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ５Ｇ，厚さ＝１．０，長さ＝３１．８ |
90937-01339 |
US $1.60 |
||
|
37101B
|
37101B
90937-01340 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ７Ｇ，厚さ＝２．０ |
90937-01340 |
US $1.60 |
||
|
37101B
|
37101B
90937-01355 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ２Ｇ，厚さ＝１．０，長さ＝１２．７ |
90937-01355 |
US $2.77 |
||
|
37101B
|
37101B
90937-01356 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ４Ｇ，厚さ＝１．０，長さ＝２５．４ |
90937-01356 |
US $2.77 |
||
|
37101B
|
37101B
90937-01357 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ６Ｇ，厚さ＝２．０ |
90937-01357 |
US $2.77 |
||
|
37101B
|
37101B
90937-01358 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ８Ｇ，厚さ＝２．０ |
90937-01358 |
US $3.93 |
||
|
37101B
|
37101B
90937-01359 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １０Ｇ，厚さ＝２．０ |
90937-01359 |
US $3.93 |
||
|
37101B
|
37101B
90937-01360 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １２Ｇ，厚さ＝２．０ |
90937-01360 |
US $3.93 |
||
|
37101B
|
37101B
90937-01361 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １４Ｇ，厚さ＝２．０ |
90937-01361 |
US $3.93 |
||
|
37101B
|
37101B
90937-01362 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １６Ｇ，厚さ＝２．０ |
90937-01362 |
US $3.93 |
||
|
37101B
|
37101B
90937-01363 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １８Ｇ，厚さ＝２．０ |
90937-01363 |
US $5.10 |
||
|
37101B
|
37101B
90937-01364 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ２０Ｇ，厚さ＝２．０，長さ＝４２．４ |
90937-01364 |
US $5.10 |
||
|
37101B
|
37101B
90937-01365 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １Ｇ，厚さ＝１．０，長さ＝６．４ |
90937-01365 |
US $2.77 |
||
|
37101B
|
37101B
90937-01385 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ２２Ｇ，厚さ＝２．０，長さ＝４６．６ |
90937-01385 |
US $5.10 |
||
|
37101B
|
37101B
90937-01386 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ２４Ｇ，厚さ＝２．０，長さ＝５０．８ |
90937-01386 |
US $5.10 |
||
|
37101B
|
37101B
90937-01423 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １Ｇ，厚さ＝１．０，長さ＝４．２ |
90937-01423 |
US $1.31 |
||
|
37101B
|
37101B
90937-01424 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ２Ｇ，厚さ＝１．０，長さ＝８．５ |
90937-01424 |
US $1.31 |
||
|
37101B
|
37101B
90937-01425 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ３Ｇ，厚さ＝１．０，長さ＝１２．７ |
90937-01425 |
US $1.31 |
||
|
37101B
|
37101B
90937-01426 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ４Ｇ，厚さ＝１．０，長さ＝１７．０ |
90937-01426 |
US $1.31 |
||
|
37101B
|
37101B
90937-01427 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ５Ｇ，厚さ＝３．２ |
90937-01427 |
US $1.31 |
||
|
37101B
|
37101B
90937-01428 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ６Ｇ，厚さ＝３．２ |
90937-01428 |
US $1.60 |
||
|
37101B
|
37101B
90937-01429 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ７Ｇ，厚さ＝３．２ |
90937-01429 |
US $1.60 |
||
|
37101B
|
37101B
90937-01430 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 ８Ｇ，厚さ＝３．２ |
90937-01430 |
US $1.60 |
||
|
37101B
|
37101B
90937-01431 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １０Ｇ，厚さ＝３．２ |
90937-01431 |
US $1.60 |
||
|
37101B
|
37101B
90937-01432 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １２Ｇ，厚さ＝３．２ |
90937-01432 |
US $2.04 |
||
|
37101B
|
37101B
90937-01433 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １４Ｇ，厚さ＝３．２ |
90937-01433 |
US $2.04 |
||
|
37101B
|
37101B
90937-01434 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １６Ｇ，厚さ＝３．２ |
90937-01434 |
US $2.48 |
||
|
37101B
|
37101B
90937-01435 Piece, Balance, No.1 (For Propeller Shaft)[09.1994 -] EL55 １８Ｇ，厚さ＝３．２ |
90937-01435 |
US $2.48 |
||
|
37110
|
37110
37110-16030 Shaft Assy, Propeller[09.1994 -] EL55 |
37110-16030 |
US $914.37 |
||
|
37110A
|
37110A
90105-08244 Bolt, No.1 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 ＊８−１．２５ＰＸ２６−１３,リヤ |
90105-08244 |
from US $1.60 |
||
|
37110A
|
37110A
90105-10085 Bolt, No.1 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 ＊１０−１．００ＰＸ２７−１３,フロント |
90105-10085 |
from US $1.21 |
||
| replacement | |||||
|
37110A
|
37110A
90080-10294 Bolt, No.1 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 ＊１０−１．００ＰＸ２７−１３,フロント |
90080-10294 |
US $6.47 |
||
|
37110D
|
37110D
90179-08197 Nut, No.1 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 リヤ |
90179-08197 |
from US $0.92 |
||
|
37110D
|
37110D
90179-10059 Nut, No.1 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 フロント |
90179-10059 |
from US $2.28 |
||
| replacement | |||||
|
37110D
|
37110D
90080-17239 Nut, No.2 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 フロント |
90080-17239 |
US $8.96 |
||
|
37110E
|
37110E
90204-10002
Washer, No.1 (For Propeller Shaft & Differential Setting)
[09.1994 -] EL55 フロント |
90204-10002 |
— | ||
| replacement | |||||
|
37110E
|
37110E
90560-10H00 Washer, No.1 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 フロント |
90560-10H00 |
from US $1.54 |
||
|
37110E
|
37110E
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting)[09.1994 -] EL55 リヤ |
94512-00800 |
from US $0.76 |
||
|
37110F
|
37110F
37110-16020 Shaft Assy, Propeller, Rear[09.1994 -] EL55 |
37110-16020 |
US $524.16 |
||
|
37120
|
37120
37120-16030 Shaft Assy, Propeller Intermediate[09.1994 -] EL55 |
37120-16030 |
US $1,003.18 |
||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[09.1994 -] EL55 外径＝３３．５，厚さ＝４．０ |
90201-18182 |
from US $2.88 |
||
|
37120B
|
37120B
90179-18009 Nut (For Propeller Intermediate Shaft Setting)[09.1994 -] EL55 |
90179-18009 |
from US $1.72 |
||
|
37230
|
37230
37230-10031 Bearing Assy, Center Support, No.1[09.1994 -] EL55 リヤ |
37230-10031 |
from US $129.58 |
||
|
37230
|
37230
37230-16010 Bearing Assy, Center Support, No.1[09.1994 -] EL55 フロント |
37230-16010 |
US $179.09 |
||
|
37230E
|
37230E
90201-25005 Washer, Plate (For Propeller Intermediate Shaft Set)[09.1994 -] EL55 |
90201-25005 |
US $0.70 |
||
|
9011910440
|
9011910440
90119-10440 Bolt, No.1 (For Center Support Bearing) |
90119-10440 |
US $4.48 |
||
