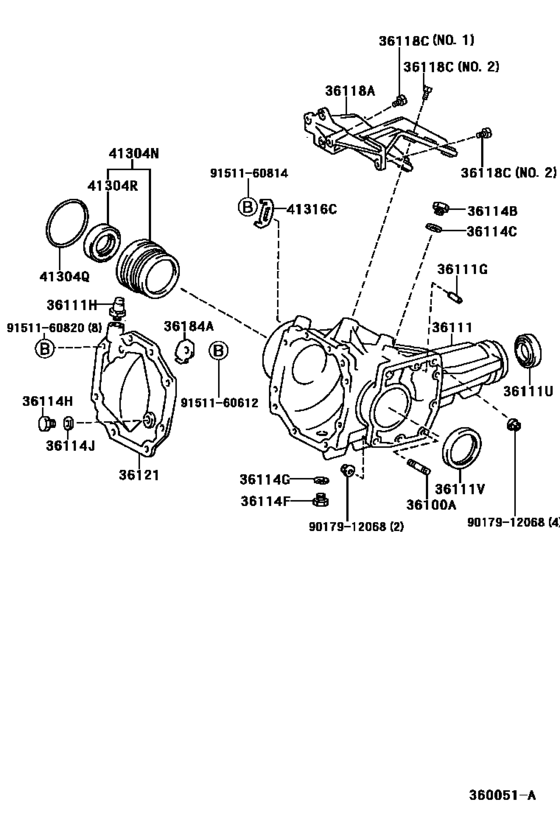

Transfer Case & Extension Housing ([09.1994 - ] (9409- )EL55) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- EL55
- grade
- AX
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36100A
|
36100A
90116-12033 Bolt, Stud (For Transfer & Transaxle Setting)[09.1994 -] EL55 ネジ部長さ＝１５ ＆ ２７，長さ＝５８ |
90116-12033 |
US $2.77 |
||
|
36100A
|
36100A
90116-12034 Bolt, Stud (For Transfer & Transaxle Setting)[09.1994 -] EL55..5F ネジ部長さ＝１９ ＆ １９，長さ＝４７ |
90116-12034 |
from US $1.74 |
||
|
36111
|
36111
36111-16010 Case, Transfer[09.1994 -] EL55 |
36111-16010 |
US $416.42 |
||
|
36111G
|
36111G
90250-10017 Pin, Straight(For Clutch Housing Set)[09.1994 -] EL55..5F 長さ＝２０，外径＝１０ |
90250-10017 |
from US $2.08 |
||
|
36111H
|
36111H
90930-03031 Plug, Breather(For Parking Cover)[09.1994 - 07.1999] EL55 |
90930-03031 |
from US $5.92 |
||
|
36111U
|
36111U
90311-38042
Seal, Oil (For Transfer Case)
[09.1994 -] EL55 |
90311-38042 |
— | ||
|
36111V
|
36111V
90311-54004 Seal, Oil, No.2(For Transaxle Case)[09.1994 -] EL55 |
90311-54004 |
US $3.32 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[09.1994 -] EL55 |
90341-18006 |
US $2.88 |
||
|
36114C
|
36114C
90430-18008 Gasket[09.1994 -] EL55 |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
36114C
|
36114C
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[09.1994 -] EL55 |
90430-T0021 |
— | ||
|
36114F
|
36114F
90341-18057 Drain Plug (with Magnet)[09.1994 - 07.1999] EL55 |
90341-18057 |
from US $5.60 |
||
|
36114G
|
36114G
90430-18008 Gasket[09.1994 - 07.1999] EL55 |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
36114G
|
36114G
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[09.1994 - 07.1999] EL55 |
90430-T0021 |
— | ||
|
36114H
|
36114H
90341-18045 Plug(For Manual Transmission Filler)[09.1994 -] EL55 |
90341-18045 |
US $4.96 |
||
|
36114J
|
36114J
90430-18008 Gasket[09.1994 -] EL55 |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
36114J
|
36114J
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[09.1994 -] EL55 |
90430-T0021 |
— | ||
|
36118A
|
36118A
36118-16021 Plate, Transfer Stiffener, Rh[09.1994 -] EL55..5F |
36118-16021 |
US $151.42 |
||
|
36118C
|
36118C
91511-60825
Bolt (For Transfer Stiffener Plate)
[09.1994 -] EL55 ＮＯ．２ |
91511-60825 |
— | ||
| replacement | |||||
|
36118C
|
36118C
91511-B0825 Bolt (For Transfer Stiffener Plate)[09.1994 -] EL55 ＮＯ．２ |
91511-B0825 |
from US $1.07 |
||
|
36118C
|
36118C
91511-60845 Bolt (For Transfer Stiffener Plate)[09.1994 -] EL55 ＮＯ．１ |
91511-60845 |
US $2.97 |
||
| replacement | |||||
|
36118C
|
36118C
91511-B0845 Bolt[09.1994 -] EL55 ＮＯ．１ |
91511-B0845 |
US $3.04 |
||
|
36121
|
36121
36121-16010 Cover, Transfer Case, No.1[09.1994 -] EL55 |
36121-16010 |
US $113.57 |
||
|
36184A
|
36184A
36184-16010 Separator, Transfer Oil[09.1994 -] EL55 |
36184-16010 |
US $5.10 |
||
|
41304N
|
41304N
41304-16010 Nut Sub-Assy, Center Differential Bearing Adjusting[09.1994 -] EL55 |
41304-16010 |
US $109.20 |
||
|
41304Q
|
41304Q
90301-79002 Ring, O (For Center Differential Bearing Adjusting Nut)[09.1994 -] EL55 |
90301-79002 |
US $4.66 |
||
|
41304R
|
41304R
90311-47009 Seal, Oil (For Transfer Case Rh)[09.1994 -] EL55 |
90311-47009 |
US $5.94 |
||
|
41316C
|
41316C
41316-16010 Plate, Center Differential Bearing Adjusting Nut Lock[09.1994 -] EL55 |
41316-16010 |
US $3.49 |
||
|
9017912068
|
9017912068
90179-12068 Nut(For Transaxle Case Cover) |
90179-12068 |
US $1.76 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9151160814
|
9151160814
91511-60814
New Genuine Part
|
91511-60814 |
— | ||
| replacement | |||||
|
9151160814
|
9151160814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9151160820
|
9151160820
91511-60820
Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
|
91511-60820 |
— | ||
| replacement | |||||
|
9151160820
|
9151160820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.07 |
||
