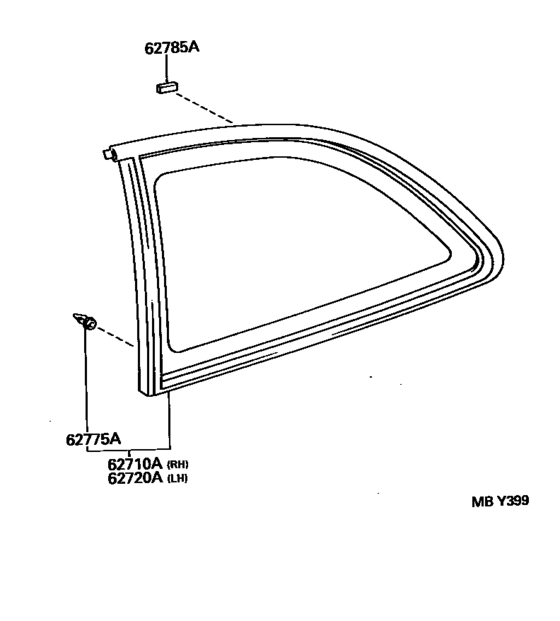

Quarter Window ([09.1994 - ] (9409- )3DS) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- EL55
- grade
- MOA
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 3DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62710A
|
62710A
62710-16260 Window Assy, Quarter, Rh[09.1994 - 08.1995] EL5#,NL50..3DS ＊ＴＥＭ，厚さ＝３．５，ブルー |
62710-16260 |
US $356.72 |
||
|
62710A
|
62710A
62710-16370
Window Assy, Quarter, Rh
[08.1995 - 12.1997] EL5#,NL50..3DS ＊ＴＥＭ，厚さ＝３．５，グリーン |
62710-16370 |
— | ||
|
62710A
|
62710A
62710-16380 Window Assy, Quarter, Rh[12.1997 - 07.1999] EL5#..3DS ＊ＵＶＣＴＴ，厚さ＝３．５，グリーン |
62710-16380 |
US $432.43 |
||
|
62720A
|
62720A
62720-16330 Window Assy, Quarter, Lh[09.1994 - 08.1995] EL5#,NL50..3DS ＊ＴＥＭ，厚さ＝３．５，ブルー |
62720-16330 |
US $356.72 |
||
| replacement | |||||
|
62720A
|
62720A
62720-16370
Window Assy, Quarter, Lh
[09.1994 - 08.1995] EL5#,NL50..3DS ＊ＴＥＭ，厚さ＝３．５，ブルー |
62720-16370 |
— | ||
|
62720A
|
62720A
62720-16370
Window Assy, Quarter, Lh
[08.1995 - 12.1997] EL5#,NL50..3DS ＊ＴＥＭ，厚さ＝３．５，グリーン |
62720-16370 |
— | ||
|
62720A
|
62720A
62720-16380 Window Assy, Quarter, Lh[12.1997 -] EL5#..3DS ＊ＵＶＣＴＴ，厚さ＝３．５，グリーン |
62720-16380 |
US $432.43 |
||
|
62775A
|
62775A
62775-16020 Clip, Quarter Window[09.1994 -] EL5#,NL50..3DS |
62775-16020 |
US $2.33 |
||
|
62785A
|
62785A
62785-16030 Spacer Quarter Panel, No.1[09.1994 -] EL5#,NL50..3DS |
62785-16030 |
from US $2.46 |
||
