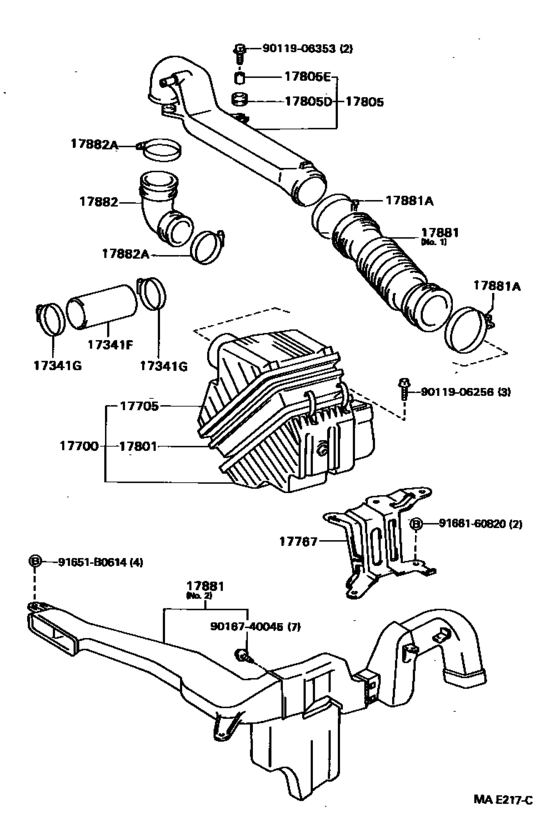

Air Cleaner ([09.1990 - ] (9009- )1NT) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- NL40
- grade
- MOA
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 4FC
- No.of Doors
- 3DS
- Vehicle Model
- Corsa
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-55010
Hose, Air, No.1
[09.1990 - 09.1994] 1NT..NL40 |
17341-55010 |
— | ||
| replacement | |||||
|
17341F
|
17341F
17341-55011
Hose, Air, No.1
[09.1990 - 09.1994] 1NT..NL40 |
17341-55011 |
— | ||
|
17341G
|
17341G
90460-50001 Clamp Or Clip(For Air Hose, No.1)[09.1990 - 09.1994] 1NT..NL40 |
90460-50001 |
US $5.53 |
||
|
17700
|
17700
17700-55020 Cleaner Assy, Air[09.1990 - 09.1994] 1NT..NL40 |
17700-55020 |
US $334.88 |
||
|
17705
|
17705
17705-55040
Cap Sub-Assy, Air Cleaner
[09.1990 - 09.1994] 1NT..NL40 |
17705-55040 |
— | ||
|
17767
|
17767
17771-55010 Bracket, Air Cleaner[09.1990 - 08.1992] 1NT..NL40 |
17771-55010 |
US $22.13 |
||
|
17767
|
17767
17771-55011 Bracket, Air Cleaner[08.1992 - 09.1994] 1NT..NL40 |
17771-55011 |
US $22.42 |
||
|
17801
|
17801
17801-55020 Element Sub-Assy, Air Cleaner Filter[09.1990 - 09.1994] 1NT..NL40 |
17801-55020 |
US $24.11 |
||
|
17805
|
17805
17860-55010 Connector Sub-Assy, Intake Air[09.1990 - 03.1992] 1NT..NL40 |
17860-55010 |
US $74.26 |
||
| replacement | |||||
|
17805
|
17805
17860-55011 Connector Sub-Assy, Intake Air[09.1990 - 03.1992] 1NT..NL40 |
17860-55011 |
US $74.26 |
||
|
17805
|
17805
17860-55011 Connector Sub-Assy, Intake Air[03.1992 - 09.1994] 1NT..NL40 |
17860-55011 |
US $74.26 |
||
|
17805D
|
17805D
90480-14015
Grommet(For Intake Air Connector)
[09.1990 - 09.1994] 1NT..NL40 |
90480-14015 |
— | ||
|
17805E
|
17805E
90387-07016 Collar(For Intake Air Connector)[09.1990 - 09.1994] 1NT..NL40 |
90387-07016 |
US $0.79 |
||
|
17881
|
17881
17880-55040 Hose, Air Cleaner, No.1[09.1990 - 09.1994] 1NT..NL40 ＮＯ．２ |
17880-55040 |
US $90.27 |
||
|
17881
|
17881
17881-55050 Hose, Air Cleaner, No.1[09.1990 - 09.1994] 1NT..NL40 ＮＯ．１ |
17881-55050 |
US $44.41 |
||
|
17881A
|
17881A
96111-10690 Clamp, Hose[09.1990 - 09.1994] 1NT..NL40 |
96111-10690 |
from US $2.56 |
||
|
17882
|
17882
17882-55040 Hose, Air Cleaner, No.2[09.1990 - 09.1994] 1NT..NL40 |
17882-55040 |
US $23.76 |
||
|
17882A
|
17882A
90460-52003 Clamp, Sub Radiator Inlet Hose[09.1990 - 09.1994] 1NT..NL40 TURBO SIDE |
90460-52003 |
US $3.84 |
||
|
17882A
|
17882A
90460-65004
Clamp Or Clip(For Air Hose, No.1)
[09.1990 - 09.1994] 1NT..NL40 CONNECTOR SIDE |
90460-65004 |
— | ||
| replacement | |||||
|
17882A
|
17882A
90460-65002 Clamp Or Clip(For Air Hose, No.1)[09.1990 - 09.1994] 1NT..NL40 CONNECTOR SIDE |
90460-65002 |
from US $4.29 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9011906256
|
9011906256
90119-06256 BOLT |
90119-06256 |
US $1.60 |
||
|
9011906353
|
9011906353
90119-06353
LEXSCREW
|
90119-06353 |
— | ||
| replacement | |||||
|
9011906353
|
9011906353
90119-06420 BOLT WWASHER |
90119-06420 |
from US $1.46 |
||
|
9016740045
|
9016740045
90167-40045 SCREW |
90167-40045 |
from US $0.86 |
||
|
9166160820
|
9166160820
91661-60820
New Genuine Part
|
91661-60820 |
— | ||
| replacement | |||||
|
9166160820
|
9166160820
91661-B0820 Bolt |
91661-B0820 |
US $2.56 |
||
