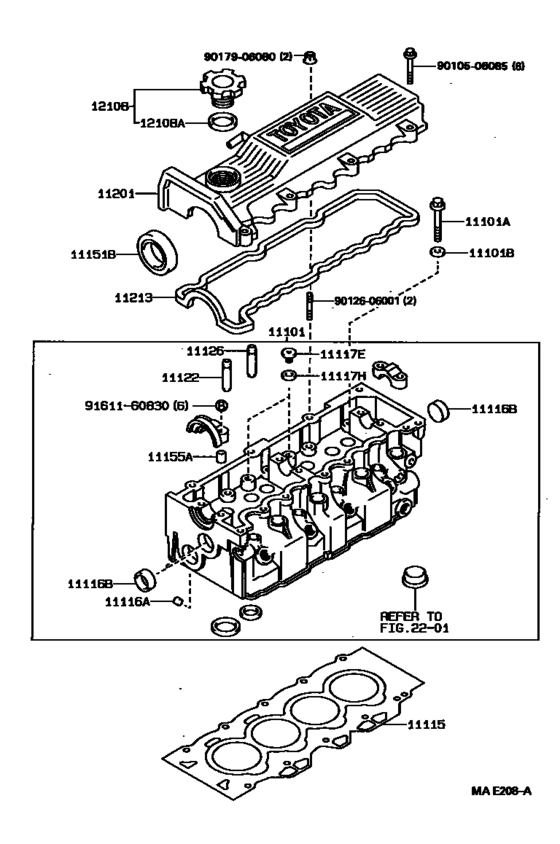

Cylinder Head ([09.1990 - ] (9009- )1NT) Diagram Toyota CORSA/ TERCEL
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- NL40
- grade
- MOA
- ENGINE
- 1NT
- TRANSMISSION
- ATM
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 4FC
- No.of Doors
- 3DS
- Vehicle Model
- Corsa
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-55041 Head Sub-Assy, Cylinder[09.1990 - 09.1994] 1NT..NL40 |
11101-55041 |
US $1,470.56 |
||
|
11101A
|
11101A
90910-02105
Bolt(For Cylinder Head Set)
[09.1990 - 09.1994] 1NT..NL40 |
90910-02105 |
— | ||
|
11101B
|
11101B
90201-11016 Washer, Plate(For Cylinder Head Set)[09.1990 - 09.1994] 1NT..NL40 |
90201-11016 |
US $2.80 |
||
|
11115
|
11115
11115-55030-01
Gasket, Cylinder Head
[09.1990 - 09.1994] 1NT..NL40 MARK 1 |
11115-55030-01 |
— | ||
|
11115
|
11115
11115-55030-02 Gasket, Cylinder Head[09.1990 - 09.1994] 1NT..NL40 MARK 2 |
11115-55030-02 |
US $74.95 |
||
|
11115
|
11115
11115-55030-03 Gasket, Cylinder Head[09.1990 - 09.1994] 1NT..NL40 MARK 3 |
11115-55030-03 |
US $74.95 |
||
|
11116A
|
11116A
90331-08004 Plug, Tight, No.1[09.1990 - 09.1994] 1NT..NL40 |
90331-08004 |
US $1.49 |
||
|
11116B
|
11116B
96411-12800
Plug, Tight, No.2
[09.1990 - 09.1994] 1NT..NL40 |
96411-12800 |
— | ||
| replacement | |||||
|
11116B
|
11116B
96411-42800 Plug, Tight, No.1[09.1990 - 09.1994] 1NT..NL40 |
96411-42800 |
from US $3.68 |
||
|
11117E
|
11117E
90341-18023 Plug, W/head Straight Screw, No.1[09.1990 - 09.1994] 1NT..NL40 |
90341-18023 |
from US $3.04 |
||
|
11117H
|
11117H
90430-18008 Gasket[09.1990 - 09.1994] 1NT..NL40 |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
11117H
|
11117H
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[09.1990 - 09.1994] 1NT..NL40 |
90430-T0021 |
— | ||
|
11122
|
11122
11122-16010
Bush, Intake Valve Guide
[09.1990 - 08.1992] 1NT..NL40 ＳＴＤ |
11122-16010 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-16020 Bush, Intake Valve Guide[09.1990 - 08.1992] 1NT..NL40 ＳＴＤ |
11122-16020 |
from US $11.95 |
||
|
11122
|
11122
11122-16020 Bush, Intake Valve Guide[08.1992 - 09.1994] 1NT..NL40 ＳＴＤ |
11122-16020 |
from US $11.95 |
||
|
11122
|
11122
11123-16010 Bush, Intake Valve Guide[09.1990 - 08.1992] 1NT..NL40 Ｏ／Ｓ ０．０５ |
11123-16010 |
US $11.36 |
||
|
11122
|
11122
11123-16020 Bush, Intake Valve Guide[08.1992 - 09.1994] 1NT..NL40 Ｏ／Ｓ ０．０５ |
11123-16020 |
US $11.18 |
||
|
11126
|
11126
11122-16010
Bush, Intake Valve Guide
[09.1990 - 08.1992] 1NT..NL40 ＳＴＤ |
11122-16010 |
— | ||
| replacement | |||||
|
11126
|
11126
11122-16020 Bush, Intake Valve Guide[09.1990 - 08.1992] 1NT..NL40 ＳＴＤ |
11122-16020 |
from US $11.95 |
||
|
11126
|
11126
11122-16020 Bush, Intake Valve Guide[08.1992 - 09.1994] 1NT..NL40 ＳＴＤ |
11122-16020 |
from US $11.95 |
||
|
11126
|
11126
11123-16010 Bush, Intake Valve Guide[09.1990 - 08.1992] 1NT..NL40 Ｏ／Ｓ ０．０５ |
11123-16010 |
US $11.36 |
||
|
11126
|
11126
11123-16020 Bush, Intake Valve Guide[08.1992 - 09.1994] 1NT..NL40 Ｏ／Ｓ ０．０５ |
11123-16020 |
US $11.18 |
||
|
11151B
|
11151B
90311-38041 Seal, Oil(For Camshaft Setting)[09.1990 - 09.1994] 1NT..NL40 |
90311-38041 |
from US $4.32 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[09.1990 - 09.1994] 1NT..NL40 |
90253-11021 |
from US $1.50 |
||
|
11201
|
11201
11201-55030
Cover Sub-Assy, Cylinder Head
[09.1990 - 09.1994] 1NT..NL40 |
11201-55030 |
— | ||
| replacement | |||||
|
11201
|
11201
11201-55040
Cover Sub-Assy, Cylinder Head
[09.1990 - 09.1994] 1NT..NL40 |
11201-55040 |
— | ||
|
11213
|
11213
11213-55010
Gasket, Cylinder Head Cover
[09.1990 - 09.1994] 1NT..NL40 |
11213-55010 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-55011 Gasket, Cylinder Head Cover[09.1990 - 09.1994] 1NT..NL40 |
11213-55011 |
US $29.70 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[09.1990 - 12.1993] 1NT..NL40 |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37004 Gasket(For Oil Filler Cap)[09.1990 - 09.1994] 1NT..NL40 |
90430-37004 |
from US $1.35 |
||
|
9010506085
|
9010506085
90105-06085 New Genuine Part |
90105-06085 |
US $1.02 |
||
|
9012606001
|
9012606001
90126-06001 STUD HEX LOBULAR |
90126-06001 |
US $2.56 |
||
|
9017906080
|
9017906080
90179-06080 NUT |
90179-06080 |
from US $0.51 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
