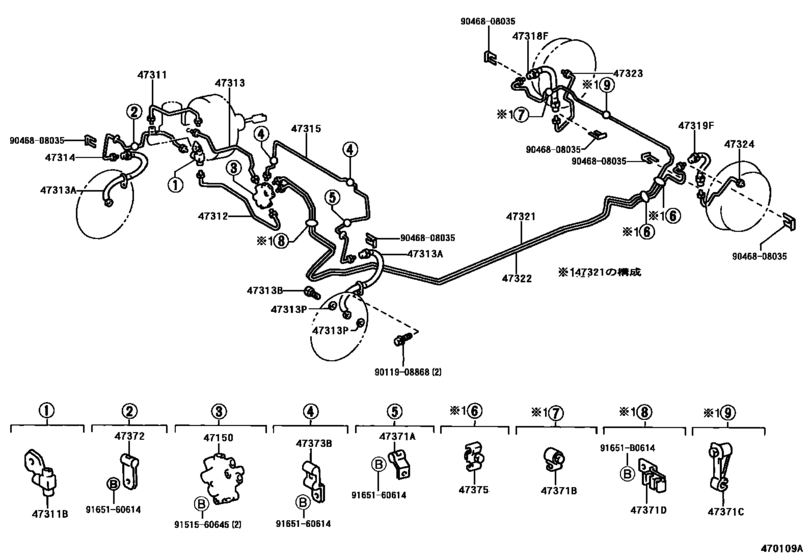

Brake Tube & Clamp ([09.1994 - 08.1996] (9409-9608)EL51,53,NL50 ; (9608- )EL51..AX,JO I,MOA) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47150
|
47150
47150-12060
Valve Assy, Proportioning
[09.1994 - 08.1996] EL51,53,NL50 |
47150-12060 |
— | ||
| replacement | |||||
|
47150
|
47150
47150-12270 Valve Assy, Proportioning[09.1994 - 08.1996] EL51,53,NL50 |
47150-12270 |
from US $172.98 |
||
|
47150
|
47150
47150-20240
Valve Assy, Proportioning
[09.1994 -] EL51,53,NL50 ｱﾘ(ABS) |
47150-20240 |
— | ||
|
47311
|
47311
47311-16140 Tube, Front Brake, No.1[09.1994 - 08.1996] NL50 |
47311-16140 |
US $7.72 |
||
|
47311
|
47311
47311-16170 Tube, Front Brake, No.1[09.1994 - 12.1997] EL5#,NL50 ｱﾘ(ABS) |
47311-16170 |
US $14.71 |
||
|
47311
|
47311
47311-16230 Tube, Front Brake, No.1[12.1997 -] EL5#,NL50 ｱﾘ(ABS) |
47311-16230 |
US $14.71 |
||
|
47311B
|
47311B
90412-10168 Way, No.1(For Front Brake Tube)[09.1994 - 12.1996] EL5#,NL50 ｱﾘ(ABS) |
90412-10168 |
US $12.38 |
||
|
47311B
|
47311B
90413-10259 Way, No.1(For Front Brake Tube)[09.1994 - 08.1996] EL5#,NL50 |
90413-10259 |
US $13.25 |
||
|
47312
|
47312
47312-16140 Tube, Front Brake, No.2[09.1994 - 08.1996] EL5#,NL50 |
47312-16140 |
US $10.05 |
||
|
47312
|
47312
47312-16150 Tube, Front Brake, No.2[09.1994 - 12.1997] EL5#,NL50 ｱﾘ(ABS) |
47312-16150 |
US $19.80 |
||
|
47312
|
47312
47312-16200 Tube, Front Brake, No.2[12.1997 -] EL5#,NL50 ｱﾘ(ABS) |
47312-16200 |
US $14.71 |
||
|
47313
|
47313
47313-16140 Tube, Front Brake, No.3[09.1994 - 08.1996] EL5#,NL50 |
47313-16140 |
US $7.72 |
||
|
47313
|
47313
47313-16170 Tube, Front Brake, No.3[09.1994 - 12.1997] EL5#,NL50 ｱﾘ(ABS) |
47313-16170 |
US $19.80 |
||
|
47313
|
47313
47313-16220 Tube, Front Brake, No.3[12.1997 -] EL5#,NL50 ｱﾘ(ABS) |
47313-16220 |
US $19.80 |
||
|
47313A
|
47313A
90947-02813 Hose, Flexible, No.1(For Front)[09.1994 -] EL5#,NL50 右側 |
90947-02813 |
US $40.28 |
||
|
47313A
|
47313A
90947-02814 Hose, Flexible, No.1(For Front)[09.1994 -] EL5#,NL50 左側 |
90947-02814 |
US $40.28 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[09.1994 -] EL5#,NL50 |
90401-10015 |
from US $3.20 |
||
|
47313P
|
47313P
90430-10074 Gasket(For Oil Pressure Regulator)[09.1994 -] EL5#,NL50 |
90430-10074 |
from US $0.94 |
||
|
47314
|
47314
47314-10230
Tube, Front Brake, No.4
[09.1994 -] EL5#,NL50 ｱﾘ(ABS) |
47314-10230 |
— | ||
|
47314
|
47314
47314-16090
Tube, Front Brake, No.4
[09.1994 - 08.1996] EL5#,NL50 |
47314-16090 |
— | ||
|
47315
|
47315
47315-16120
Tube, Front Brake, No.5
[09.1994 - 08.1996] EL5#,NL50 |
47315-16120 |
— | ||
|
47315
|
47315
47315-16140 Tube, Front Brake, No.5[09.1994 - 12.1997] EL5#,NL50 ｱﾘ(ABS) |
47315-16140 |
US $21.99 |
||
|
47315
|
47315
47315-16190 Tube, Front Brake, No.5[12.1997 -] EL5#,NL50 ｱﾘ(ABS) |
47315-16190 |
US $21.99 |
||
|
47318F
|
47318F
90947-02637 Hose, Flexible(For Rear Rh)[09.1994 -] EL51,53,NL50 |
90947-02637 |
US $22.65 |
||
|
47319F
|
47319F
90947-02637 Hose, Flexible(For Rear Rh)[09.1994 -] EL51,53,NL50 |
90947-02637 |
US $22.65 |
||
|
47321
|
47321
47321-16140 Tube, Rear Brake, No.1[09.1994 -] EL51,53,NL50 |
47321-16140 |
US $66.10 |
||
|
47322
|
47322
47322-16130 Tube, Rear Brake, No.2[09.1994 -] EL51,53,NL50 |
47322-16130 |
US $41.35 |
||
|
47323
|
47323
47323-16160
Tube, Rear Brake, No.3
[09.1994 -] EL51,NL50..AVE,AX,AXX,JOI,MOA,SOP |
47323-16160 |
— | ||
|
47324
|
47324
47324-16150
Tube, Rear Brake, No.4
[09.1994 -] EL51,NL50..AVE,AX,AXX,JOI,MOA,SOP |
47324-16150 |
— | ||
|
47371A
|
47371A
47371-16060 Clamp, Brake Tube, No.1[09.1994 -] EL5#,NL50 ｱﾘ(ABS) |
47371-16060 |
US $9.03 |
||
|
47371A
|
47371A
90461-06221 Clamp, Brake Tube, No.1[09.1994 - 08.1996] EL5#,NL50 |
90461-06221 |
US $4.95 |
||
|
47371B
|
47371B
47371-10100 Clamp, Brake Tube, No.6[09.1994 -] EL5#,NL50 |
47371-10100 |
US $6.84 |
||
|
47371C
|
47371C
47371-10110 Clamp, Brake Tube, No.7[09.1994 -] EL51,53,NL50 |
47371-10110 |
US $9.17 |
||
|
47371D
|
47371D
47371-30010 Clamp, Brake Tube, No.1[09.1994 -] EL5#,NL50 |
47371-30010 |
US $11.53 |
||
|
47372
|
47372
47371-10150 Clamp, Brake Tube, No.2[09.1994 -] EL5#,NL50 ｱﾘ(ABS) |
47371-10150 |
US $7.13 |
||
|
47372
|
47372
90461-10738 Clamp, Brake Tube, No.2[09.1994 - 08.1996] EL5#,NL50 |
90461-10738 |
US $4.37 |
||
|
47373B
|
47373B
90949-01207
Clamp, Brake Tube, No.6
[09.1994 - 08.1996] EL5#,NL50 |
90949-01207 |
— | ||
|
47373B
|
47373B
90949-01969 Clamp, Brake Tube, No.6[09.1994 -] EL5#,NL50 ｱﾘ(ABS) |
90949-01969 |
US $6.29 |
||
| replacement | |||||
|
47373B
|
47373B
90080-46365
Clamp, Brake Tube, No.5
[09.1994 -] EL5#,NL50 ｱﾘ(ABS) |
90080-46365 |
— | ||
|
47375
|
47375
47371-10080 Clamp, Brake Tube, No.3[09.1994 -] EL51,53,NL50 |
47371-10080 |
US $7.43 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9011908868
|
9011908868
90119-08868 BOLT WWASHER |
90119-08868 |
US $1.12 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.76 |
||
| replacement | |||||
|
9046808035
|
9046808035
90468-A0007 New Genuine Part |
90468-A0007 |
US $3.72 |
||
|
9151560645
|
9151560645
91515-60645 New Genuine Part |
91515-60645 |
US $0.87 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
