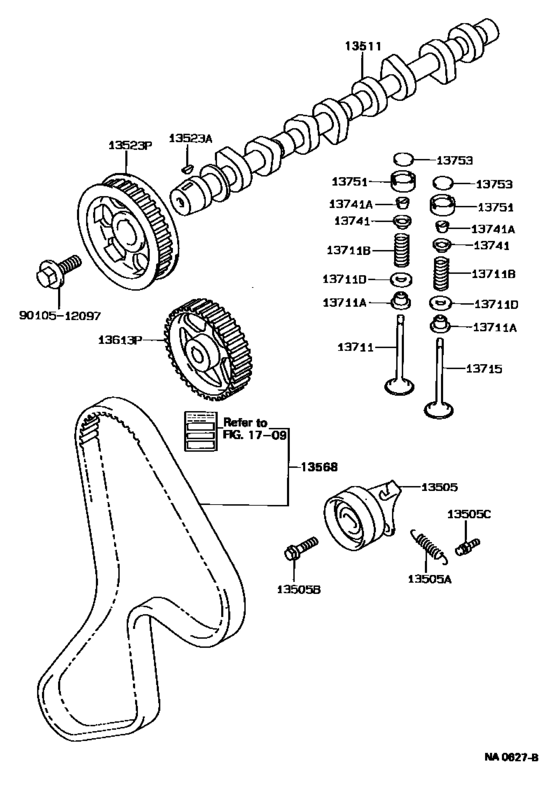

Camshaft & Valve ([09.1994 - ] (9409- )1NT) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13505
|
13505
13505-55020 Idler Sub-Assy, Timing Belt, No.1[09.1994 -] 1NT..NL50 |
13505-55020 |
US $61.15 |
||
|
13505A
|
13505A
90506-19002 Spring, Tension(For Idler)[09.1994 -] 1NT..NL50 |
90506-19002 |
US $2.62 |
||
|
13505B
|
13505B
90119-08449 Bolt, Flange (For Idler)[09.1994 -] 1NT..NL50 |
90119-08449 |
US $2.62 |
||
|
13505C
|
13505C
13575-55010 Pin(For Idler Spring Tension)[09.1994 -] 1NT..NL50 |
13575-55010 |
US $5.82 |
||
|
13511
|
13511
13501-55020 Camshaft[09.1994 -] 1NT..NL50 |
13501-55020 |
US $438.26 |
||
|
13523A
|
13523A
90280-05004 Key, Woodruff(For Timing Gear)[09.1994 -] 1NT..NL50 |
90280-05004 |
from US $0.96 |
||
|
13523P
|
13523P
13051-64012 Pulley, Camshaft Timing[09.1994 -] 1NT..NL50 |
13051-64012 |
US $117.06 |
||
|
13568
|
13568
13568-59055 Belt, Timing[09.1994 -] 1NT..NL50 |
13568-59055 |
US $71.29 |
||
|
13613P
|
13613P
13613-64011 Pulley, Injection Pump Drive[09.1994 -] 1NT..NL50 |
13613-64011 |
US $110.07 |
||
|
13711
|
13711
13711-55010 Valve, Intake[09.1994 -] 1NT..NL50 |
13711-55010 |
US $24.32 |
||
|
13711A
|
13711A
90913-02062 Seal Or Ring, O(For Valve Stem Oil) (INTAKE SIDE)[09.1994 -] 1NT..NL50 |
90913-02062 |
US $7.36 |
||
|
13711B
|
13711B
90501-35014
Spring, Compression(For Inner)
[09.1994 -] 1NT..NL50 |
90501-35014 |
— | ||
|
13711D
|
13711D
90201-19008 Washer, Plate(For Valve Spring Seat)[09.1994 -] 1NT..NL50 |
90201-19008 |
US $1.60 |
||
|
13715
|
13715
13715-55010 Valve, Exhaust[09.1994 -] 1NT..NL50 |
13715-55010 |
US $34.65 |
||
|
13741
|
13741
13741-10020 Retainer, Valve Spring[09.1994 -] 1NT..NL50 |
13741-10020 |
US $5.82 |
||
|
13741A
|
13741A
90913-03021 Seal Or Ring, O(For Valve Stem Oil)[09.1994 -] 1NT..NL50 |
90913-03021 |
from US $2.07 |
||
|
13751
|
13751
13751-66020 Lifter, Valve[09.1994 -] 1NT..NL50 |
13751-66020 |
from US $15.70 |
||
|
13753
|
13753
13753-55010 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝２．５０ |
13753-55010 |
US $8.01 |
||
|
13753
|
13753
13753-55030 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝２．５５ |
13753-55030 |
US $8.01 |
||
|
13753
|
13753
13753-55050 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝２．６０ |
13753-55050 |
US $8.01 |
||
|
13753
|
13753
13753-55070 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝２．６５ |
13753-55070 |
US $8.01 |
||
|
13753
|
13753
13753-55090 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝２．７０ |
13753-55090 |
US $8.01 |
||
|
13753
|
13753
13753-55110 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝２．７５ |
13753-55110 |
US $8.01 |
||
|
13753
|
13753
13753-55130 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝２．８０ |
13753-55130 |
US $8.01 |
||
|
13753
|
13753
13753-55150 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝２．８５ |
13753-55150 |
US $8.01 |
||
|
13753
|
13753
13753-55170 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝２．９０ |
13753-55170 |
US $8.01 |
||
|
13753
|
13753
13753-55190 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝２．９５ |
13753-55190 |
US $8.01 |
||
|
13753
|
13753
13753-55210 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝３．００ |
13753-55210 |
US $8.01 |
||
|
13753
|
13753
13753-55230 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝３．０５ |
13753-55230 |
US $8.01 |
||
|
13753
|
13753
13753-55250 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝３．１０ |
13753-55250 |
US $8.01 |
||
|
13753
|
13753
13753-55270 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝３．１５ |
13753-55270 |
US $8.01 |
||
|
13753
|
13753
13753-55290 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝３．２０ |
13753-55290 |
US $8.01 |
||
|
13753
|
13753
13753-55310 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝３．２５ |
13753-55310 |
US $8.01 |
||
|
13753
|
13753
13753-55330 Shim, Valve Adjusting[09.1994 -] 1NT..NL50 厚さ＝３．３３ |
13753-55330 |
US $8.01 |
||
|
9010512097
|
9010512097
90105-12097 New Genuine Part |
90105-12097 |
US $3.64 |
