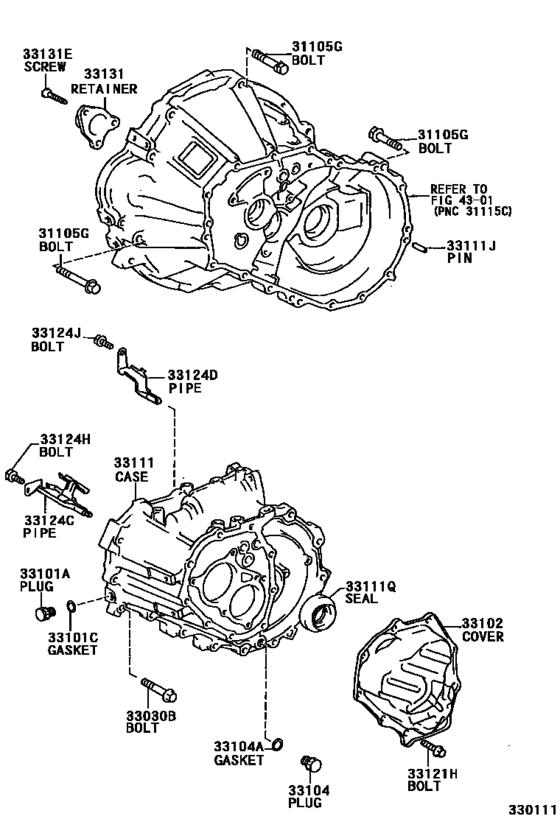

Clutch Housing & Transmission Case (Mtm) ([09.1994 - ] C153 (9409- )NL50..5F) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90105-10077 Bolt(For Transaxle Case Protector)[09.1994 -] NL50..5F ＊１０−１．２５ＰＸ４３−２６ |
90105-10077 |
from US $4.16 |
||
|
31105G
|
31105G
90119-12063 Bolt(For Transaxle Case & Engine Setting)[09.1994 -] NL50..5F ＊１２−１．２５ＰＸ８０−３０ |
90119-12063 |
US $5.42 |
||
|
31105G
|
31105G
90119-12168 Bolt(For Transaxle & Engine Setting)[09.1994 -] NL50..5F ＊１２−１．２５ＰＸ５５−３０ |
90119-12168 |
from US $2.13 |
||
|
31105G
|
31105G
91612-41025 Bolt(For Transaxle & Engine Setting)[09.1994 -] EL55,NL50..5F ＊１０−１．２５ＰＸ２５−２５ |
91612-41025 |
US $2.18 |
||
| replacement | |||||
|
31105G
|
31105G
90119-10223 Bolt(For Transaxle & Engine Setting)[09.1994 -] EL55,NL50..5F ＊１０−１．２５ＰＸ２５−２５ |
90119-10223 |
US $1.92 |
||
|
31105G
|
31105G
91621-60614 Bolt(For Transaxle & Engine Setting)[09.1994 -] EL55,NL50..5F ＊６−１．００ＰＸ１４−１４ |
91621-60614 |
from US $1.54 |
||
|
33030B
|
33030B
90105-08086 Bolt(For Transaxle Case & Transmission Case Setting)[09.1994 -] EL51,53,NL50..MTM ＊８−１．２５ＰＸ４５−２７．５ |
90105-08086 |
US $1.76 |
||
|
33101A
|
33101A
90341-18006 Plug (No magnet)[09.1994 -] EL51,53,NL50..MTM |
90341-18006 |
from US $2.76 |
||
|
33101C
|
33101C
90430-18008 Gasket[09.1994 -] EL5#,NL50..MTM |
90430-18008 |
from US $0.92 |
||
|
33102
|
33102
33102-10023
Cover Sub-Assy, Manual Transmission Case
[09.1994 -] EL53,NL50..5F |
33102-10023 |
— | ||
|
33104
|
33104
90341-18006 Plug (No magnet)[09.1994 -] EL5#,NL50..MTM |
90341-18006 |
from US $2.76 |
||
|
33104A
|
33104A
90430-18008 Gasket[09.1994 -] EL5#,NL50..MTM |
90430-18008 |
from US $0.92 |
||
|
33111
|
33111
33111-16050 Case, Manual Transmission[09.1994 - 05.1995] EL51,53,NL50..MTM |
33111-16050 |
US $471.74 |
||
| replacements | |||||
|
33111
|
33111
33111-16081 Case, Manual Transmission[09.1994 - 05.1995] EL51,53,NL50..MTM |
33111-16081 |
US $468.83 |
||
|
33111
|
33111
90109-12073 Bolt (For Shift Inter Lock Plate)[09.1994 - 05.1995] EL51,53,NL50..MTM |
90109-12073 |
US $3.06 |
||
|
33111
|
33111
90109-18005 Bolt (For Shift Inter Lock Plate)[09.1994 - 05.1995] EL51,53,NL50..MTM |
90109-18005 |
US $2.97 |
||
|
33111
|
33111
90430-18008 Gasket[09.1994 - 05.1995] EL51,53,NL50..MTM |
90430-18008 |
from US $0.92 |
||
|
33111
|
33111
33111-16051 Case, Manual Transmission[05.1995 - 04.1997] EL51,53,NL50..MTM |
33111-16051 |
US $473.20 |
||
| replacements | |||||
|
33111
|
33111
33111-16053 Case, Manual Transmission[05.1995 - 04.1997] EL51,53,NL50..MTM |
33111-16053 |
US $474.66 |
||
|
33111
|
33111
90109-12073 Bolt (For Shift Inter Lock Plate)[05.1995 - 04.1997] EL51,53,NL50..MTM |
90109-12073 |
US $3.06 |
||
|
33111
|
33111
90109-18005 Bolt (For Shift Inter Lock Plate)[05.1995 - 04.1997] EL51,53,NL50..MTM |
90109-18005 |
US $2.97 |
||
|
33111
|
33111
90430-18008 Gasket[05.1995 - 04.1997] EL51,53,NL50..MTM |
90430-18008 |
from US $0.92 |
||
|
33111
|
33111
33111-16052 Case, Manual Transmission[04.1997 - 07.1999] EL51,53,NL50..MTM |
33111-16052 |
US $473.20 |
||
| replacements | |||||
|
33111
|
33111
33111-16053 Case, Manual Transmission[04.1997 - 07.1999] EL51,53,NL50..MTM |
33111-16053 |
US $474.66 |
||
|
33111
|
33111
90109-18005 Bolt (For Shift Inter Lock Plate)[04.1997 - 07.1999] EL51,53,NL50..MTM |
90109-18005 |
US $2.97 |
||
|
33111
|
33111
90430-18008 Gasket[04.1997 - 07.1999] EL51,53,NL50..MTM |
90430-18008 |
from US $0.92 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[09.1994 -] EL5#,NL50..MTM 長さ＝２３，外径＝８ |
90250-08054 |
from US $1.03 |
||
|
33111Q
|
33111Q
90311-34017
Seal, Oil(For Transmission Case)
[09.1994 -] EL5#,NL50..MTM |
90311-34017 |
— | ||
| replacement | |||||
|
33111Q
|
33111Q
90311-34042 Oil Seal, Front Drive Shaft, Lh[09.1994 -] EL5#,NL50..MTM |
90311-34042 |
from US $7.52 |
||
|
33121H
|
33121H
90119-08A34 Bolt, W/washer(For Transmission Case Cover)[09.1994 -] EL51,53,NL50..MTM |
90119-08A34 |
US $1.75 |
||
| replacement | |||||
|
33121H
|
33121H
90119-08373 Bolt, W/washer(For Transmission Case Cover)[09.1994 -] EL51,53,NL50..MTM |
90119-08373 |
US $2.24 |
||
|
33124C
|
33124C
33124-10010 Pipe, Oil Receiver, No.1(Mtm)[09.1994 - 04.1995] EL51,53,NL50..MTM |
33124-10010 |
US $20.97 |
||
|
33124C
|
33124C
33124-10012 Pipe, Oil Receiver, No.1(Mtm)[04.1995 - 07.1999] EL51,53,NL50..MTM |
33124-10012 |
US $10.05 |
||
|
33124D
|
33124D
33124-10021 Pipe, Oil Receiver, No.2(Mtm)[09.1994 -] EL53,NL50..5F |
33124-10021 |
US $16.89 |
||
|
33124H
|
33124H
91611-60820
Bolt(For Transaxle & Engine Setting)
[09.1994 - 08.1996] EL5#,NL50..MTM |
91611-60820 |
— | ||
| replacement | |||||
|
33124H
|
33124H
91611-G0820 Bolt[09.1994 - 08.1996] EL5#,NL50..MTM |
91611-G0820 |
from US $1.25 |
||
|
33124J
|
33124J
91611-60820
Bolt(For Transaxle & Engine Setting)
[09.1994 - 08.1996] EL53,55,NL50..5F |
91611-60820 |
— | ||
| replacement | |||||
|
33124J
|
33124J
91611-G0820 Bolt[09.1994 - 08.1996] EL53,55,NL50..5F |
91611-G0820 |
from US $1.25 |
||
|
33131
|
33131
33131-12071
Retainer, Bearing, Front(Mtm)
[09.1994 - 07.1996] NL50..5F |
33131-12071 |
— | ||
| replacement | |||||
|
33131
|
33131
33131-12080
Retainer, Bearing, Front(Mtm)
[09.1994 - 07.1996] NL50..5F |
33131-12080 |
— | ||
|
33131
|
33131
33131-12080
Retainer, Bearing, Front(Mtm)
[07.1996 -] NL50..5F |
33131-12080 |
— | ||
|
33131E
|
33131E
90149-60028 Screw(For Bearing Retainer Front)[09.1994 -] NL50..5F |
90149-60028 |
US $0.52 |
||
