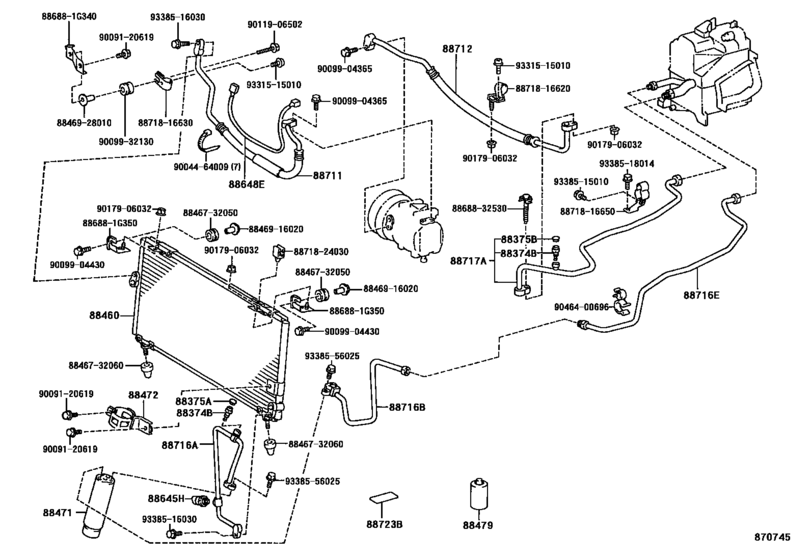

Heating & Air Conditioning - Cooler Piping ([08.1996 - ] (9608- )NL50) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88374B
|
88374B
88374-30010 Valve, Service, No.1[09.1994 - 08.1996] EL5#;NL50..AX,JOI,MOA |
88374-30010 |
from US $3.37 |
||
|
88375A
|
88375A
88375-30280 Cap, Service Valve (For Cooler Pipe)[09.1994 -] EL5#,NL50 |
88375-30280 |
from US $0.98 |
||
|
88375B
|
88375B
88375-30290 Cap, Service Valve (For Cooler Pipe)[09.1994 -] EL5#,NL50 |
88375-30290 |
from US $0.94 |
||
|
88460
|
88460
88460-16350 Condenser Assy, Cooler[09.1994 - 12.1997] NL50 |
88460-16350 |
US $585.31 |
||
|
88460
|
88460
88460-16560 Condenser Assy, Cooler[12.1997 -] NL50 |
88460-16560 |
US $585.31 |
||
|
88471
|
88471
88471-20050
Receiver & Dryer Assy, Cooler
[09.1994 - 12.1997] EL5#,NL50 |
88471-20050 |
— | ||
| replacement | |||||
|
88471
|
88471
88471-34010 Receiver & Dryer Assy, Cooler[09.1994 - 12.1997] EL5#,NL50 |
88471-34010 |
from US $70.08 |
||
|
88472
|
88472
88472-16150
Bracket, Receiver Tank, No.1
[09.1994 -] NL50 |
88472-16150 |
— | ||
|
88479
|
88479
90986-02008 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)[09.1994 - 08.1996] EL5#,NL50..AX,JOI,MOA ２００Ｇ |
90986-02008 |
US $22.80 |
||
|
88645H
|
88645H
88645-20050
Switch, Pressure
[09.1994 -] EL5#,NL50 |
88645-20050 |
— | ||
|
88648E
|
88648E
88648-16240
Wiring, Cooler
[09.1994 - 12.1997] NL50 |
88648-16240 |
— | ||
|
88648E
|
88648E
88648-16320
Wiring, Cooler
[12.1997 -] NL50 |
88648-16320 |
— | ||
|
88711
|
88711
88711-16330 Hose, Cooler Refrigerant Discharge, No.1[09.1994 - 08.1996] NL50..AX,JOI,MOA |
88711-16330 |
US $179.09 |
||
|
88711
|
88711
88711-16490 Hose, Cooler Refrigerant Discharge, No.1[12.1997 -] NL50 |
88711-16490 |
US $190.74 |
||
|
88712
|
88712
88712-16430 Hose, Cooler Refrigerant Suction, No.1[09.1994 - 12.1997] NL50..5F |
88712-16430 |
US $224.22 |
||
|
88712
|
88712
88712-16600 Hose, Cooler Refrigerant Suction, No.1[12.1997 -] NL50..5F |
88712-16600 |
US $216.94 |
||
|
88716A
|
88716A
88716-1G050 Pipe, Cooler Refrigerant Liquid, A[09.1994 -] NL50 |
88716-1G050 |
US $109.20 |
||
|
88716B
|
88716B
88716-1G110 Pipe, Cooler Refrigerant Liquid, B[09.1994 - 08.1996] NL50..AX,JOI,MOA |
88716-1G110 |
US $70.47 |
||
|
88716E
|
88716E
88716-1G100 Pipe, Cooler Refrigerant Liquid, E[09.1994 - 08.1996] NL50..AX,JOI,MOA |
88716-1G100 |
US $64.36 |
||
|
88717A
|
88717A
88717-16240 Pipe, Cooler Refrigerant Suction, A[09.1994 -] NL50 |
88717-16240 |
US $164.53 |
||
|
88723B
|
88723B
88723-16030
Label, Cooler Service Caution
[09.1994 - 08.1996] EL5#,NL50 |
88723-16030 |
— | ||
|
88723B
|
88723B
88723-20030 Plate, Caution, No.1[12.1997 -] EL5#,NL50 |
88723-20030 |
US $4.19 |
||
| replacement | |||||
|
88723B
|
88723B
88733-30040
Label, Cooler Service Caution
[12.1997 -] EL5#,NL50 |
88733-30040 |
— | ||
|
886881G340
|
886881G340
88688-1G340
Bracket, Cooler Diaphragm
|
88688-1G340 |
— | ||
|
886881G350
|
886881G350
88688-1G350
Bracket, Cooler Diaphragm
|
88688-1G350 |
— | ||
|
8846732050
|
8846732050
88467-32050
Cushion, Cooler Condenser, No.1
|
88467-32050 |
— | ||
|
8846732060
|
8846732060
88467-32060
Cushion, Cooler Condenser, No.1
|
88467-32060 |
— | ||
|
8846916020
|
8846916020
88469-16020
Insulator, Cooler Condenser Mounting
|
88469-16020 |
— | ||
|
8846928010
|
8846928010
88469-28010
Collar, Condenser Bracket, No.1
|
88469-28010 |
— | ||
|
8868832530
|
8868832530
88688-32530
Bracket, Cooler Diaphragm
|
88688-32530 |
— | ||
|
8871816620
|
8871816620
88718-16620
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16620 |
— | ||
|
8871816630
|
8871816630
88718-16630
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16630 |
— | ||
|
8871816650
|
8871816650
88718-16650
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16650 |
— | ||
|
8871824030
|
8871824030
88718-24030
Clamp(For Cooler Refrigerant Pipe), No.2
|
88718-24030 |
— | ||
|
9004464009
|
9004464009
90044-64009 CLAMP |
90044-64009 |
from US $1.60 |
||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9009904365
|
9009904365
90099-04365
New Genuine Part
|
90099-04365 |
— | ||
|
9009904430
|
9009904430
90099-04430
New Genuine Part
|
90099-04430 |
— | ||
|
9009932130
|
9009932130
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
US $1.54 |
||
|
9011906502
|
9011906502
90119-06502
New Genuine Part
|
90119-06502 |
— | ||
| replacement | |||||
|
9011906502
|
9011906502
90119-06330 Bolt |
90119-06330 |
US $1.28 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9046400696
|
9046400696
90464-00696 Clamp, No.2(For Vacuum Hose) |
90464-00696 |
US $0.96 |
||
|
9331515010
|
9331515010
93315-15010 New Genuine Part |
93315-15010 |
US $1.12 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
|
9338516030
|
9338516030
93385-16030 Lever, Cooler Control, No.1 |
93385-16030 |
US $1.60 |
||
|
9338518014
|
9338518014
93385-18014
New Genuine Part
|
93385-18014 |
— | ||
|
9338556025
|
9338556025
93385-56025 New Genuine Part |
93385-56025 |
US $0.44 |
||
