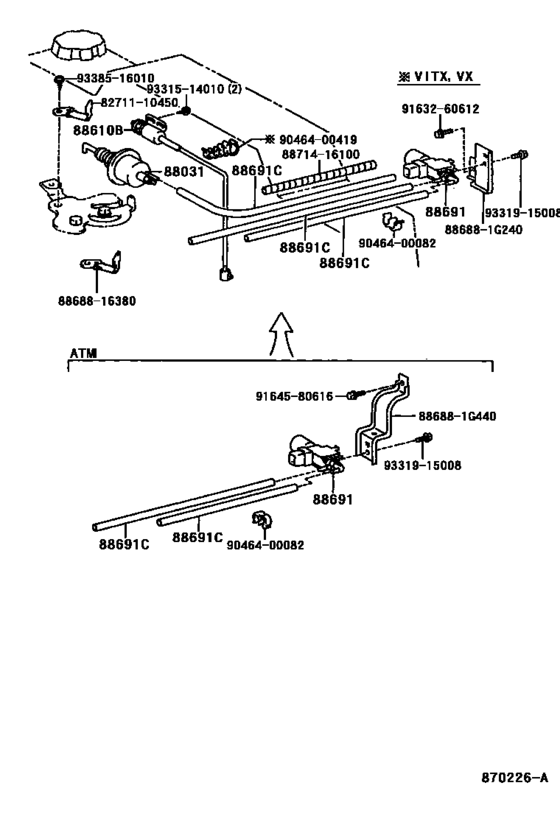

Heating & Air Conditioning - Vacuum Piping ([09.1994 - ] (9409- )) Diagram Toyota CORSA/ TERCEL
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- NL50
- grade
- AX
- ENGINE
- 1NT
- TRANSMISSION
- MTM
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- No.of Doors
- 4DS
- Vehicle Model
- Corsa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-27040
Actuator Set, Idle-Up
[09.1994 -] NL50 |
88031-27040 |
— | ||
|
88610B
|
88610B
88610-16080
Switch Assy, Idle Up Device
[09.1994 -] NL50..5F |
88610-16080 |
— | ||
|
88691
|
88691
88691-16060
Valve, Magnet (For Idle Up Device)
[09.1994 -] NL50 |
88691-16060 |
— | ||
| replacement | |||||
|
88691
|
88691
88691-89107 Valve, Vacuum Transmitting (For Idle Up Divice)[09.1994 -] NL50 |
88691-89107 |
US $83.87 |
||
|
88691C
|
88691C
90999-92002
Air Hose (300 mm)
[09.1994 - 08.1996] NL50..4FC ＊Ｈ，Ｌ＝１８０，マーク＝＃０; NL50..AX,JOI,MOA ＊Ｈ，Ｌ＝３００，マーク＝＃＊ |
90999-92002 |
— | ||
|
88691C
|
88691C
90999-92003
Hose, Breather (For Transfer Case)
[09.1994 -] NL50..5F ＊Ｈ，Ｌ＝３１０，マーク＝＃＊; NL50..4FC ＊Ｈ，Ｌ＝３４０，マーク＝＃＊ |
90999-92003 |
— | ||
|
886881G240
|
886881G240
88688-1G240
Bracket, Cooler Diaphragm
|
88688-1G240 |
— | ||
|
886881G440
|
886881G440
88688-1G440
Bracket, Cooler Diaphragm
|
88688-1G440 |
— | ||
|
8271110450
|
8271110450
82711-10450 Wire, Fuse To Fuse(for Combustion Heater) |
82711-10450 |
US $5.10 |
||
|
8868816380
|
8868816380
88688-16380
Bracket, Cooler Diaphragm
|
88688-16380 |
— | ||
|
8871416100
|
8871416100
88714-16100
Hose, Cooler Refrigerant Liquid, No.1
|
88714-16100 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400419
|
9046400419
90464-00419 New Genuine Part |
90464-00419 |
US $1.60 |
||
|
9163260612
|
9163260612
91632-60612 BOLT WWASHER |
91632-60612 |
US $1.46 |
||
| replacement | |||||
|
9163260612
|
9163260612
91631-J0612 BRACKET |
91631-J0612 |
from US $1.76 |
||
|
9164580616
|
9164580616
91645-80616 New Genuine Part |
91645-80616 |
US $1.46 |
||
| replacement | |||||
|
9164580616
|
9164580616
91641-C0612 New Genuine Part |
91641-C0612 |
US $1.60 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9338516010
|
9338516010
93385-16010 New Genuine Part |
93385-16010 |
US $1.76 |
||
